Siemens SIRIUS ACT 3SU1001-6AA40-0AA0 Piloto indicador LED verde 22mm redondo 24V AC/DC conexión por tornillo

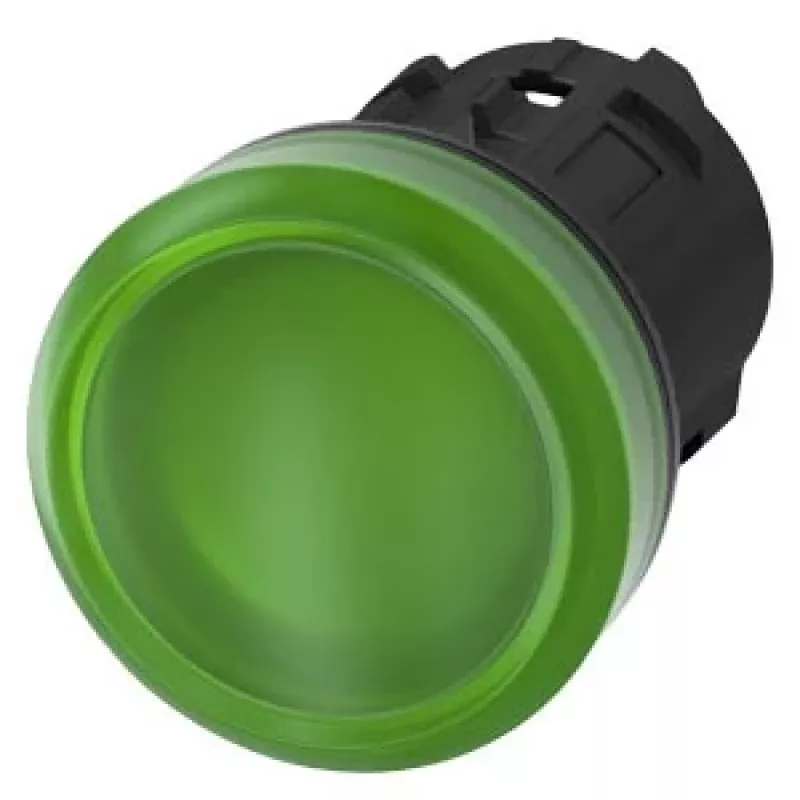

The Siemens 3SU1001-6AA40-0AA0 is a complete green LED indicator light from the SIRIUS ACT series, designed for front panel mounting in a 22.3 mm round cutout. It features a durable plastic enclosure with high ingress protection (IP66, IP67, IP69K on the front) and screw terminal connection for reliable wiring. The integrated LED provides clear green signaling with a rated operating voltage of 24 V AC/DC and a long service life of up to 100,000 hours. This unit is compliant with international standards including IEC 60947-5-1, UL, CSA, CE, EAC, and CCC, making it suitable for industrial control panels and machinery.

Advantages

High protection rating (IP66/IP67/IP69K) ensures reliable operation in harsh environments. Long LED lifetime reduces maintenance. Screw terminals simplify installation. Compact 22mm round design fits standard panel cutouts.

Suitable for

• Industrial control panels
• Machine building
• Process automation
• Switchgear and distribution boards

Key specifications

• Product Type: Indicator Light (complete unit)
• Series: SIRIUS ACT
• Mounting Diameter: 22.3 mm
• Shape: Round
• Illumination: LED, Green
• Rated Operating Voltage: 24 V AC/DC
• Connection: Screw terminal
• Protection (Front): IP66, IP67, IP69K
• Protection (Rear): IP20
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Enclosure Material: Plastic
• LED Lifetime: 100,000 hours
• Standards: IEC 60947-5-1, UL, CSA, CE, EAC, CCC

Recommendations

For optimal performance, use with appropriate Siemens SIRIUS ACT contact blocks and holders. Ensure panel cutout is 22.3 mm and tighten screw terminals to recommended torque. This indicator light is designed for front panel mounting and should be installed by qualified personnel.
