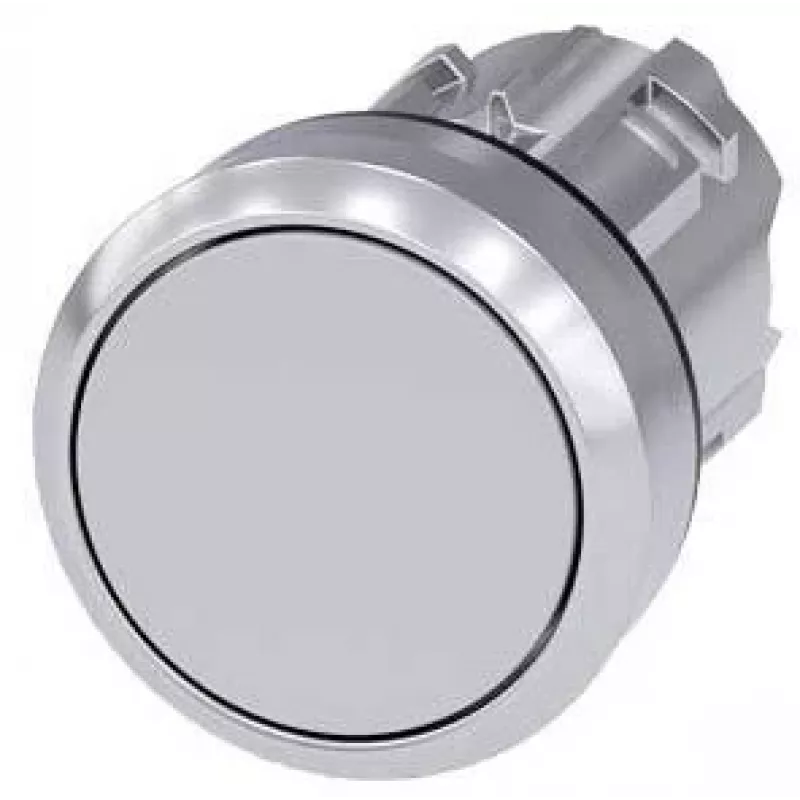

Siemens SIRIUS ACT elemento frontal pulsador, metal, alto brillo, gris (3SU1050-0AB80-0AA0)

Pushbutton front element from the SIRIUS ACT series, featuring a flat button with high-gloss metal front ring in gray. Designed for 22 mm panel mounting, it provides a robust and reliable actuation solution for industrial control applications.

Advantages

The metal front ring ensures durability and a premium appearance, while the high-gloss finish offers resistance to harsh environments. With a mechanical service life of 10 million operating cycles, it delivers long-term reliability.

Suitable for

• Industrial control panels
• Machine building and automation
• Harsh environment applications requiring high ingress protection

Key specifications

• Actuator type: flat button, momentary contact
• Front ring material: metal, high-gloss, gray
• Mounting diameter: 22 mm
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature range: -25 to +70 °C
• Mechanical service life: 10 million operating cycles
• Includes holder

Recommendations

For optimal performance, pair with compatible SIRIUS ACT contact modules and mounting accessories.
