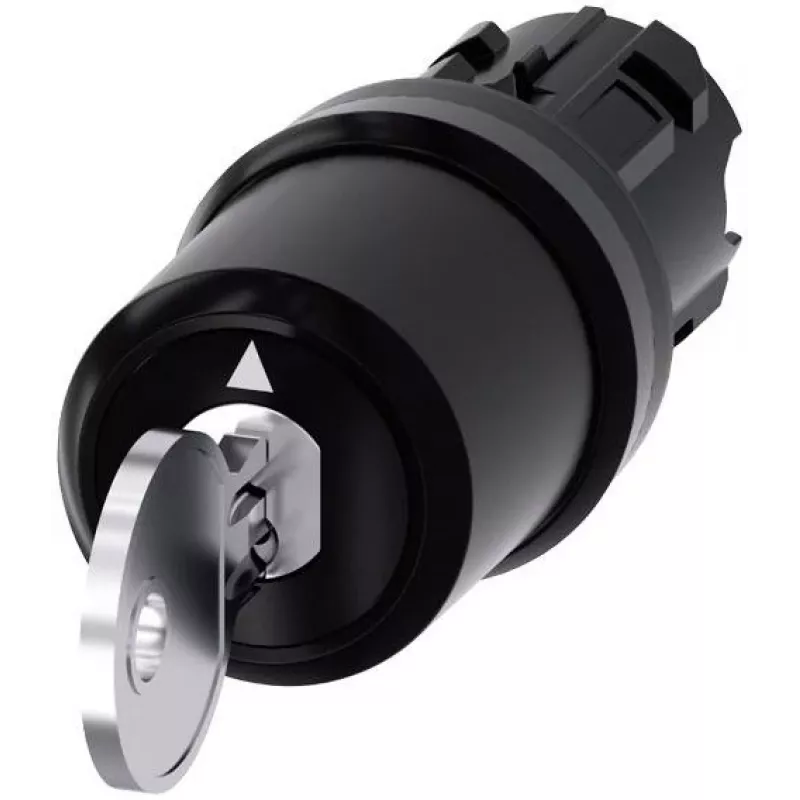

Siemens SIRIUS ACT Interruptor de llave, 22mm, 2 posiciones, enclavamiento, 90°, anillo frontal de plástico negro, llave SSG10 3SU10005HJ010AA0

Control access to critical operations with a secure, key-operated switch that prevents unauthorized activation. The Siemens SIRIUS ACT key switch ensures only personnel with the correct key can change machine states, enhancing safety and process integrity.

Who is it for

Maintenance engineers, machine builders, and panel designers who need a tamper-resistant switching solution for industrial control panels, access systems, or safety circuits.

Main features

• 22mm round mounting diameter fits standard panel cutouts
• Two switch positions (0-I) with latching operation and 90° switching angle
• Key removable in both positions for flexible access control
• Black plastic front ring for a clean, modern appearance
• Supplied with two keys (SSG10 profile) for convenience
• Front protection ratings: IP66, IP67, IP69K; NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating temperature range: -25 to +70 °C
• Mechanical and electrical service life: 100,000 switching cycles

Specifications

• Brand: Siemens
• Model: 3SU10005HJ010AA0
• MPN: 3SU1000-5HJ01-0AA0
• EAN: 4047621065670
• Series: SIRIUS ACT
• Product type: Key-operated switch
• Mounting diameter: 22 mm
• Design: Round
• Front ring material: Plastic
• Front ring colour: Black
• Number of switch positions: 2 (0-I)
• Operation type: Latching
• Switching angle: 90°
• Key removal position: 0 and I
• Key number: SSG10
• Number of keys supplied: 2
• Degree of protection (front): IP66, IP67, IP69K
• NEMA rating (front): 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical service life: 100,000 switching cycles
• Electrical service life: 100,000 switching cycles (AC-15, 230V)
• Actuator type: Standard

Tips

Pair with a compatible Siemens contact block (sold separately) to complete the switching function. For outdoor or washdown environments, the high IP ratings ensure reliable operation.
