Siemens SIRIUS cubierta de bornes 3TX65263B transparente

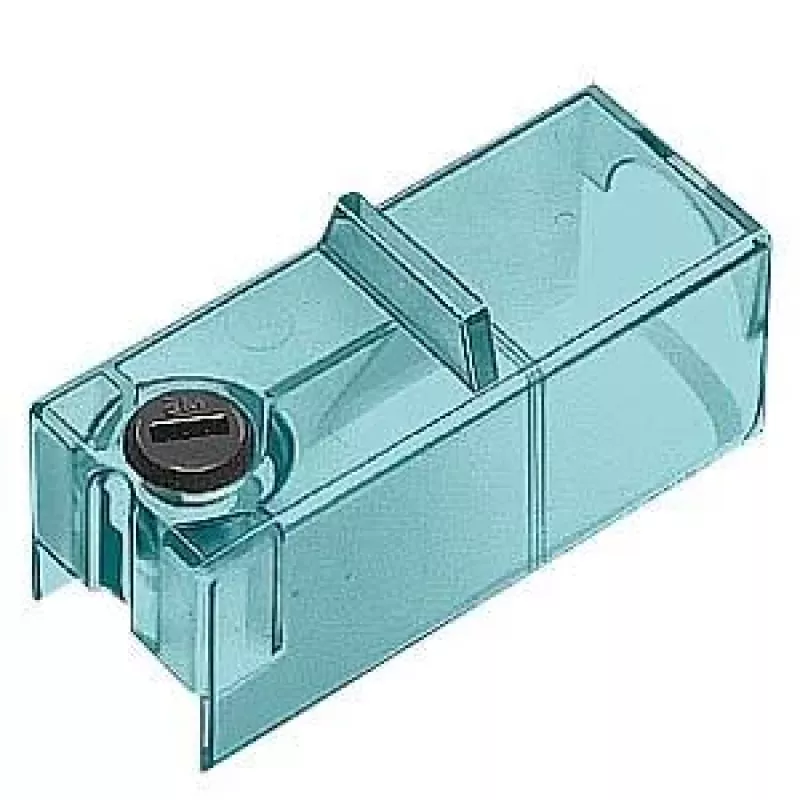

Industrial terminal blocks are exposed to accidental contact and environmental debris, which can lead to short circuits or downtime. The Siemens SIRIUS Terminal Cover 3TX65263B provides a transparent, snap-on protective shield for Siemens SIRIUS 3TX7004 terminal blocks, ensuring basic insulation and clear visibility of connections.

Who is it for

This cover is intended for electrical engineers, panel builders, and maintenance technicians working with Siemens SIRIUS 3TX7004 terminal blocks in industrial automation and control systems.

Main features

• Transparent plastic construction allows visual inspection of terminals without removal.
• Tool-free snap-on mounting for quick installation and removal.
• Protects against accidental contact and environmental influences.
• Provides basic insulation for covered terminals.
• Compatible with Siemens SIRIUS 3TX7004 terminal blocks.

Specifications

• Product Type: Terminal Cover
• Material: Plastic
• Color: Transparent
• Series: SIRIUS
• Mounting Type: Snap-on
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• RoHS Status: Compliant

Tips

Ensure the terminal block is de-energized before installing or removing the cover. For best results, press evenly along the edges until the cover clicks into place.
