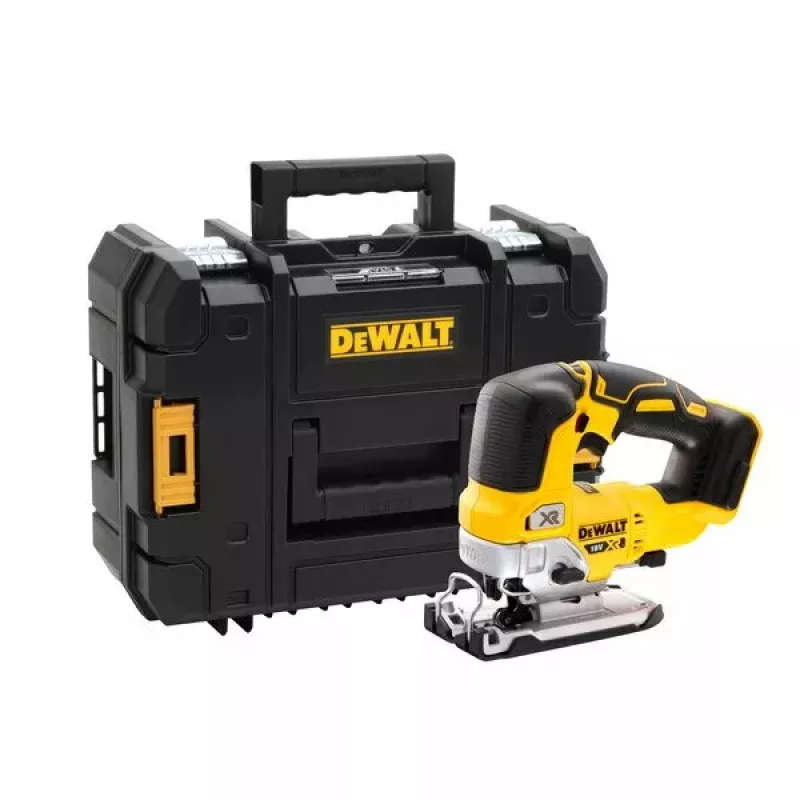

Sierra de calar DeWALT DCS334NT-XJ inalámbrica 18V, carrera 2,6 cm, profundidad de corte en madera 135 mm, inclinación 0–45°, Top-Handle, empuñadura blanda

The DeWALT DCS334NT-XJ power jigsaw is a compact, battery-powered tool designed for controlled straight and curved cuts in wood and other common construction materials. The tool features a top-handle layout, a 2.6 cm stroke length and a maximum idle stroke rate of 3200 strokes per minute, delivering a balance of speed and control. Weighing approximately 2.1 kg, the jigsaw supports bevel cuts up to 45° and a maximum cutting depth in wood of 13.5 cm, making it suitable for a variety of interior and on-site cutting tasks.

Advantages

The top-handle design provides natural grip and maneuverability for overhead or vertical cutting positions while the relatively light weight reduces operator fatigue during extended use. High stroke rate combined with a 2.6 cm stroke length enables efficient material removal and smooth cutting performance. The adjustable bevel up to 45° increases cutting versatility for mitre and angled cuts. As a battery-powered model, the jigsaw eliminates the need for a power cord, improving portability on job sites and in locations without easy access to mains power.

Suitable for

• Cutting straight and curved profiles in timber and sheet materials
• Making bevel and angled cuts up to 45° for carpentry and finish work
• On-site trimming, door and window frame adjustments
• Portable cutting tasks where cord-free operation is required

Key specifications

• Power source: battery (cordless)
• Top-handle ergonomic design
• Maximum idle stroke rate: 3200 spm (strokes per minute)
• Stroke length: 2.6 cm
• Maximum cutting depth in wood: 13.5 cm
• Bevel capacity: 0° to 45°
• Approximate weight: 2.1 kg (without battery)

How to use

Fit a blade suitable for the material to be cut and ensure it is secured according to the manufacturer's blade-mounting procedure. Secure the workpiece and mark the cutting line clearly. When cutting, hold the top-handle grip firmly and position the shoe flat against the material. Start at low speed to gain control, then increase the stroke rate as needed for smoother cuts. For bevel cuts, set the soleplate to the required angle and verify the angle before cutting. Allow the tool to reach full speed before engaging the cut and avoid forcing the saw; let the blade advance at its own pace to maintain blade life and cut quality.

Recommendations

Use blades matched to the material and tooth configuration for the best finish; finer-tooth blades for smooth finishes and coarser blades for faster rough cuts. Always wear appropriate personal protective equipment including eye and hearing protection, and secure workpieces to prevent movement. Regularly inspect the shoe, blade clamp, and any moving parts for wear and keep the tool clean from dust to preserve performance. For extended battery life, use compatible DeWALT batteries charged according to manufacturer guidelines and store the tool and batteries in a dry environment.
