Sierra de mesa Einhell TE-TS 315 U

Cutting large panels, beams, and boards accurately on a jobsite or in a home workshop often means wrestling with undersized saws that bog down or lack proper support. The Einhell TE-TS 315 U table saw solves this with a powerful 2200 W motor and a large 315 mm blade, delivering clean, precise cuts in solid wood, plywood, and panel materials up to 85 mm deep at 90°. Its sturdy base frame with integrated wheels and foldable table extensions makes it mobile and space-saving, while the transparent blade guard and overload switch keep you safe and productive.

Who is it for

This bench-type circular saw is ideal for home workshops, hobby woodworking, interior finishing, carpentry, and renovation tasks. It handles cutting, trimming, and sizing of beams, boards, cladding elements, and panel materials with ease, making it a reliable choice for furniture making and small construction projects.

Main features

• Powerful 2200 W motor (S6 40%) with 1800 W continuous rating for demanding cuts
• Large 315 mm saw blade with 30 mm bore and 2950 rpm idle speed

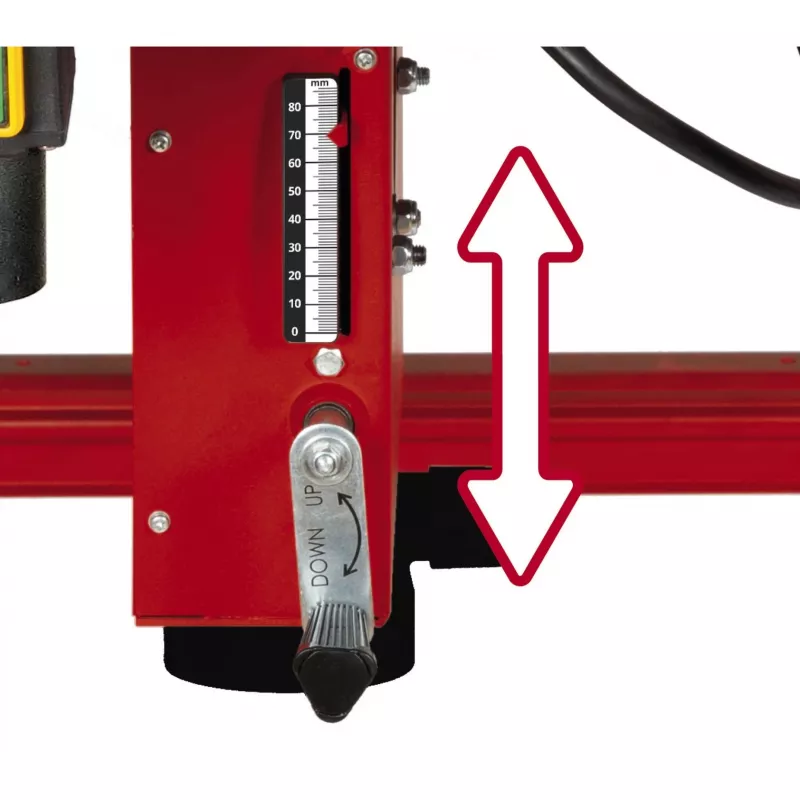

• Maximum cutting height: 85 mm at 90° and 60 mm at 45° bevel

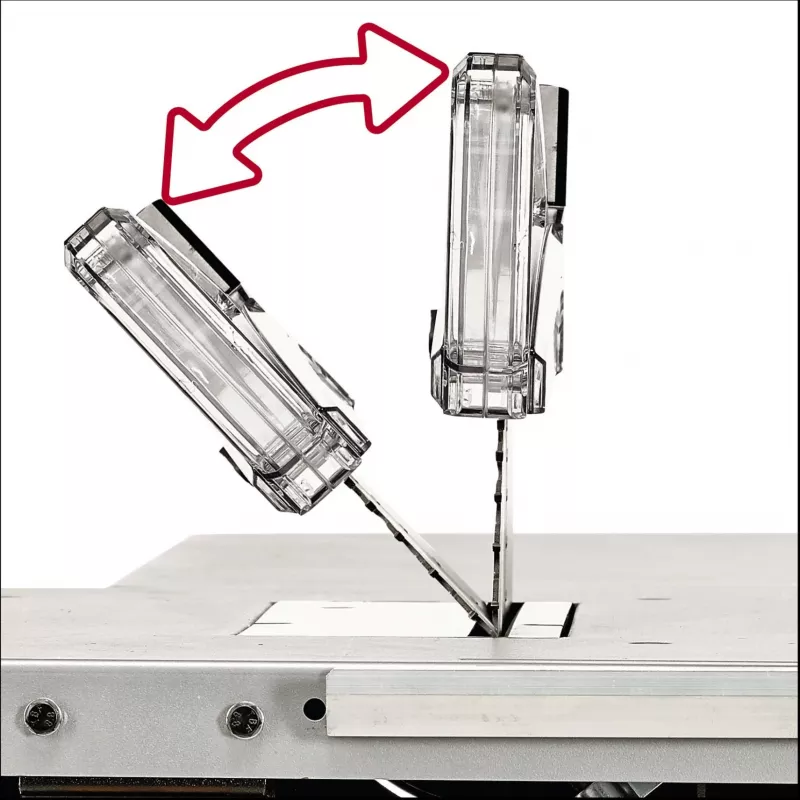

• Blade tilt up to 45° with angle stop for mitre cuts from -60° to +60°

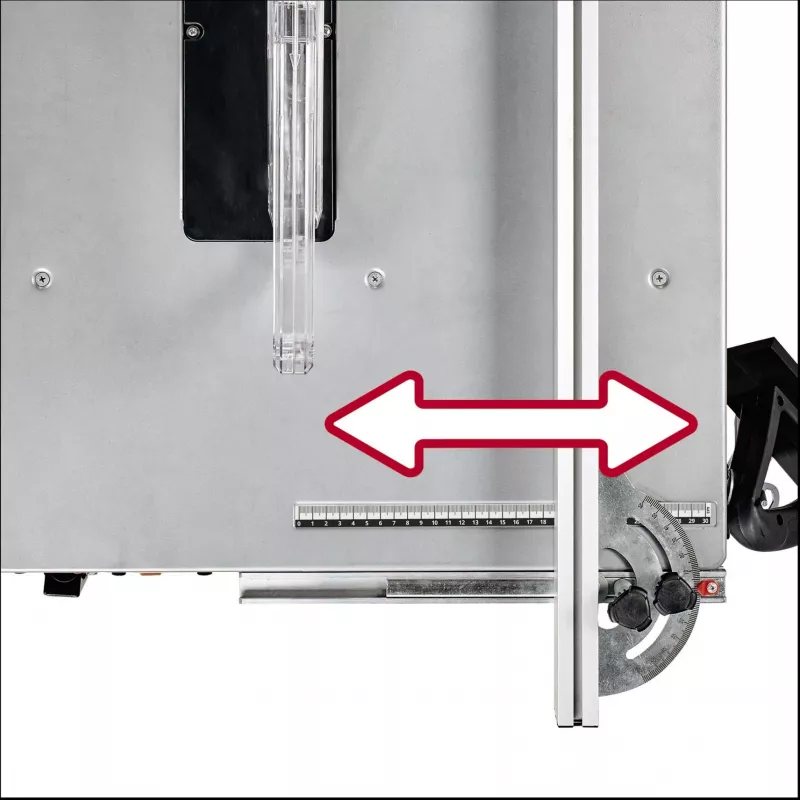

• Sturdy aluminium rip fence with eccentric clamp for precise parallel cuts

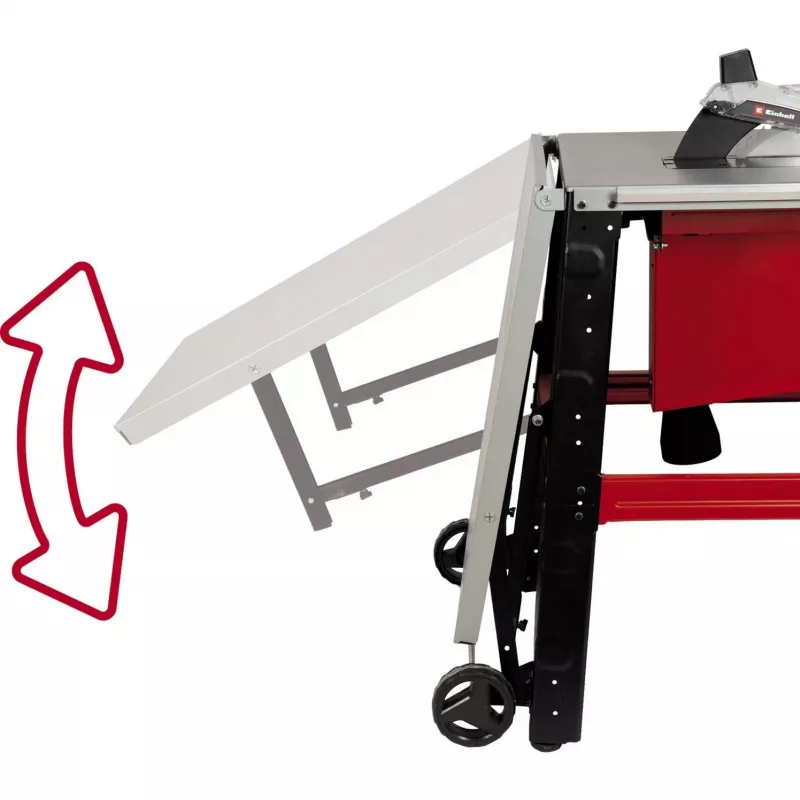

• Foldable rear and right table extensions (800 x 400 mm each) for long workpieces
• Transparent blade guard for clear view of the cutting line
• Overload switch protects the motor from overheating

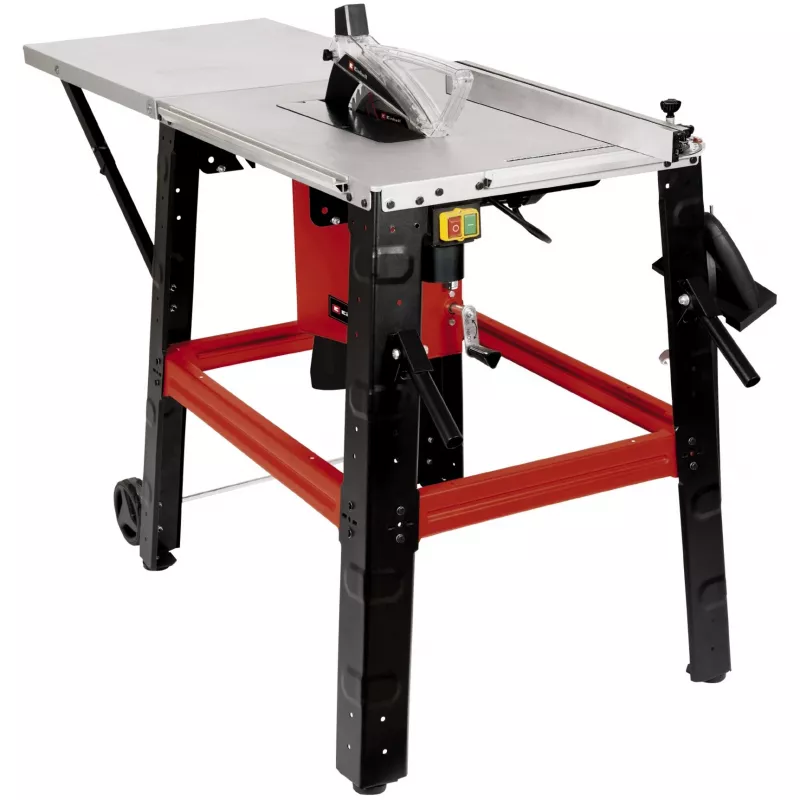

• Integrated wheels and handles on the base frame for easy transport
• Dust extraction port (100 mm diameter) for a cleaner work area
• Includes push stick and tools for blade changes

Specifications

• Brand: Einhell
• Model: TE-TS 315 U
• MPN: 4340557
• EAN: 4006825646535
• Input power: 2200 W (S6 40%), 1800 W (S1)
• Voltage: 220-240 V ~ 50 Hz
• Idle speed: 2950 rpm
• Saw blade diameter: 315 mm
• Saw blade bore: 30 mm
• Max. cutting height at 90°: 85 mm
• Max. cutting height at 45°: 60 mm
• Swivel range: 0 - 45°
• Main table size: 800 x 550 mm
• Table extension (rear): 800 x 400 mm
• Table extension (right): 800 x 400 mm
• Dust extraction port diameter: 100 mm
• Overload protection: Yes
• Push stick included: Yes
• Product colour: Red, Black

Tips

For best results, use a sharp blade appropriate for the material and connect a dust extractor to the 100 mm port to keep the work area clear. Always use the push stick for narrow cuts and ensure the blade guard is in place before starting. When cutting long panels, extend the rear and side tables fully and lock the rip fence securely to maintain accuracy.
