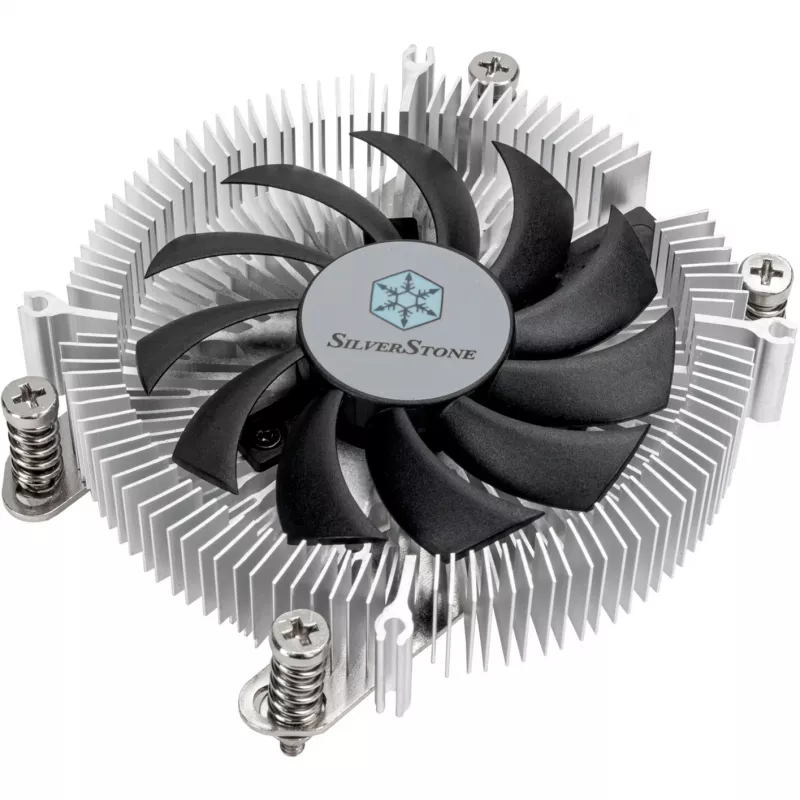

SILVERSTONE TECHNOLOGY SST-NT07-AM5 Disipador CPU Low Profile (80 mm)

The SILVERSTONE TECHNOLOGY SST-NT07-AM5 is a low profile CPU cooler designed for AMD AM5 sockets. With an 80mm fan and a height of only 30mm, it is ideal for compact and HTPC builds where space is limited. The cooler supports up to 95W TDP and features an aluminum fin heatsink with a copper base for efficient heat dissipation.

Advantages

Ultra-low profile design (30mm height) fits in slim cases. PWM fan control allows for quiet operation (18.5-28.5 dBA) while delivering up to 25.6 CFM airflow. Pre-applied thermal paste simplifies installation. Long life sleeve bearing ensures durability.

Suitable for

• Small form factor (SFF) PCs
• Home theater PCs (HTPC)
• AMD AM5 socket processors (Ryzen 7000 series)
• Systems requiring low noise and compact cooling

Key specifications

• Cooler Type: Low Profile CPU Cooler
• Socket Compatibility: AMD AM5
• TDP Support: Up to 95W
• Heatsink Material: Aluminum fins, Copper base
• Fan Dimensions: 80mm x 80mm x 10mm
• Fan Speed: 1800 ~ 3400 RPM
• Airflow: 13.1 ~ 25.6 CFM
• Static Pressure: 0.65 ~ 2.5 mmH2O
• Noise Level: 18.5 ~ 28.5 dBA
• Bearing Type: Long Life Sleeve Bearing
• Fan Connector: 4-pin PWM
• Rated Voltage: 12V DC
• Rated Current: 0.08A ~ 0.15A
• Power Consumption: 0.96W ~ 1.8W
• Overall Height: 30mm
• Thermal Paste: Pre-applied

Recommendations

For best performance, ensure your case has adequate airflow. This cooler is designed for low-profile applications; for higher TDP processors, consider a larger cooler.
