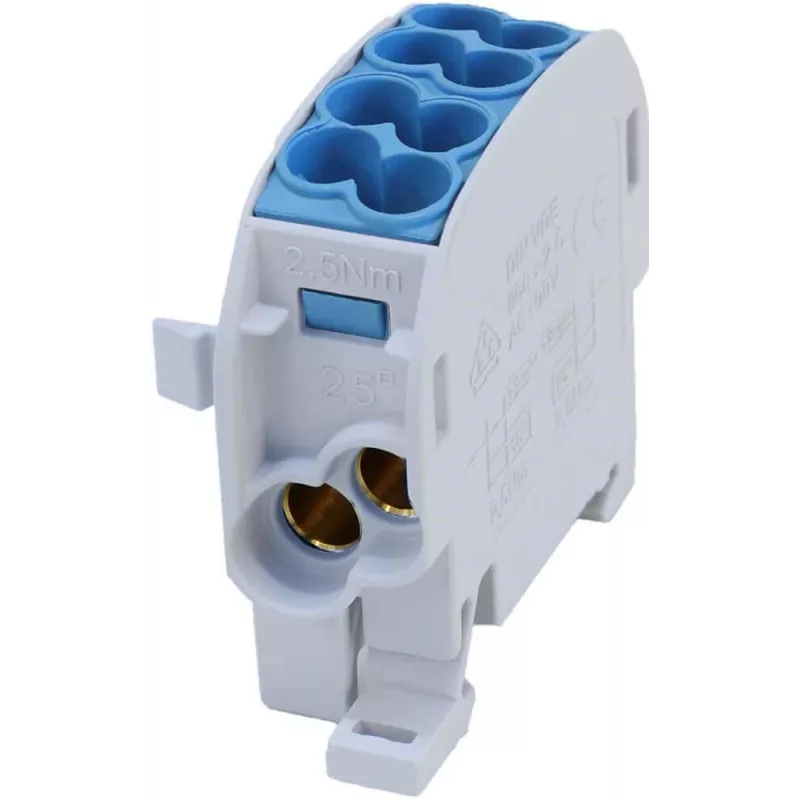

SIMET SCB 25 Bloque de distribución derivación Al/Cu 80-110 SIMBLOCK, azul 81501003

The SIMET SCB 25 Branch Distribution Block, part of the SIMBLOCK series, is a high-quality electrical distribution component designed for reliable power distribution in industrial and commercial installations. It accommodates both aluminum and copper conductors, offering flexibility for various wiring systems.

Advantages

This distribution block ensures secure and efficient branching of main conductors, reducing installation time and improving system organization. Its compact design saves space on DIN rails, while the transparent cover allows for easy inspection of connections.

Suitable for

• Industrial control panels
• Power distribution boards
• Electrical cabinets and enclosures
• Commercial building installations

Key specifications

• Product Type: Branch Distribution Block
• Conductor Compatibility: Aluminum (Al) / Copper (Cu)
• Number of Poles: 1
• Main Conductor Cross-section (Input): 6 - 25 mm²
• Main Conductor Cross-section (Output): 6 - 25 mm²
• Branch Conductor Cross-section (Output): 1.5 - 16 mm²
• Rated Voltage: 1000V AC/DC
• Rated Current: 100 A
• Mounting Type: DIN Rail (TS35) / Screw Mounting
• Color: Blue
• Insulation Material: Polyamide (PA6.6)
• Terminal Material: Tinned Brass
• Degree of Protection: IP20
• Operating Temperature Range: -25°C to +80°C
• Standards: IEC 60947-7-1
• Number of Connections: 1 Main Input, 1 Main Output, 4 Branch Outputs

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use with ferrules or direct conductor insertion. Always follow local electrical codes and regulations.
