SIMET SCB 25 Bloque de distribución derivación Al/Cu 80-110 SIMBLOCK, verde 81501005

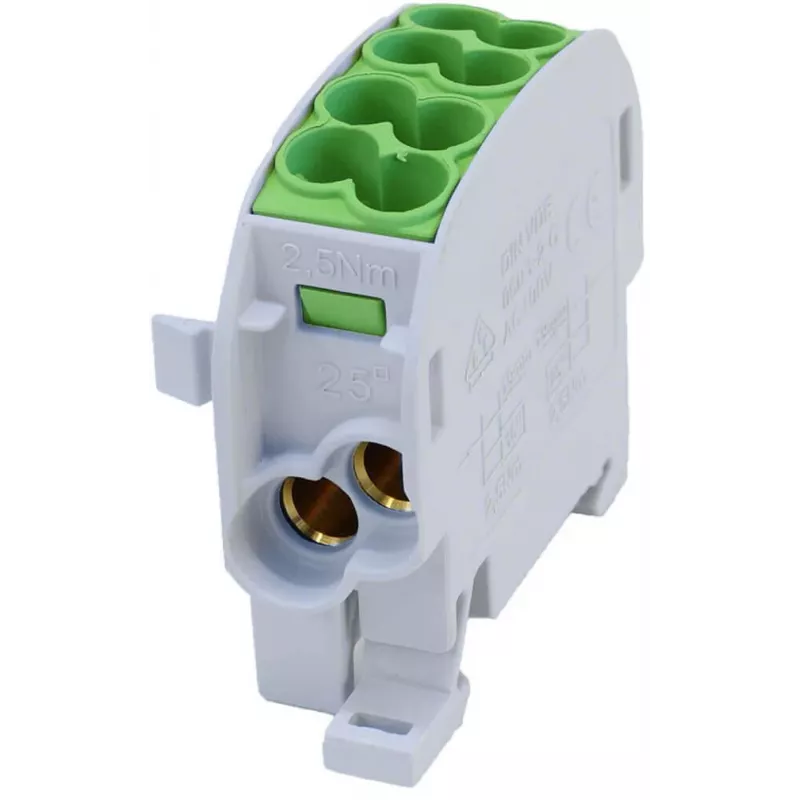

The SIMET SCB 25 Branch Distribution Block is a high-quality, 1-pole distribution block designed for reliable power distribution in industrial and commercial electrical installations. It supports both aluminum and copper conductors, offering flexibility for various wiring systems. With a rated current of 80 A for copper and 63 A for aluminum, and a rated voltage of 1000 V AC/DC, this block is suitable for demanding applications. The green polyamide housing provides durability and IP20 protection.

Advantages

This distribution block allows for easy and secure branching of main conductors. Its screw terminals ensure a reliable connection, and the DIN rail or screw mounting options provide versatile installation. The pass-through design with 4 branch outputs simplifies wiring and reduces installation time.

Suitable for

• Industrial control panels
• Distribution boards
• Power distribution systems
• Electrical installations requiring aluminum or copper conductors

Key specifications

• Product Type: Branch Distribution Block
• Number of Poles: 1-pole
• Main Conductor Cross-Section: 6 - 25 mm²
• Branch Conductor Cross-Section: 1.5 - 10 mm²
• Rated Current (Copper): 80 A
• Rated Current (Aluminum): 63 A
• Rated Voltage: 1000 V AC/DC
• Conductor Material: Aluminum / Copper
• Mounting Type: DIN Rail (TS35) / Screw Mounting
• Number of Main Connections: 1 Input, 1 Output (Pass-through)
• Number of Branch Connections: 4 Outputs
• Terminal Type: Screw Terminals
• Insulation Material: Polyamide (PA6)
• Protection Degree: IP20
• Color: Green
• Operating Temperature: -25°C to +70°C
• Standard Compliance: PN-EN 60947-7-1

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use with both solid and stranded conductors. Always follow local electrical codes and regulations.
