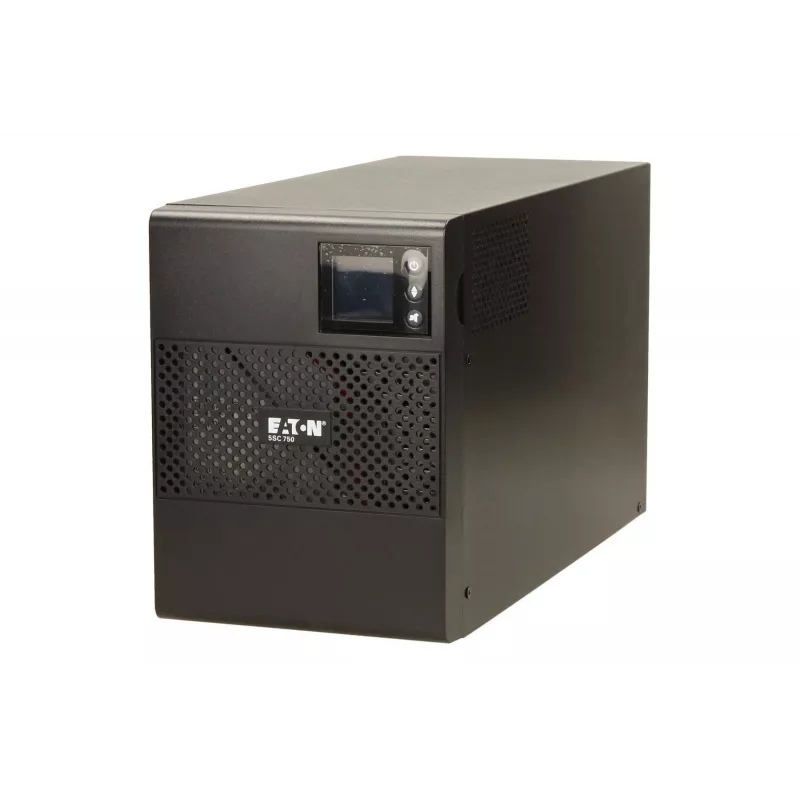

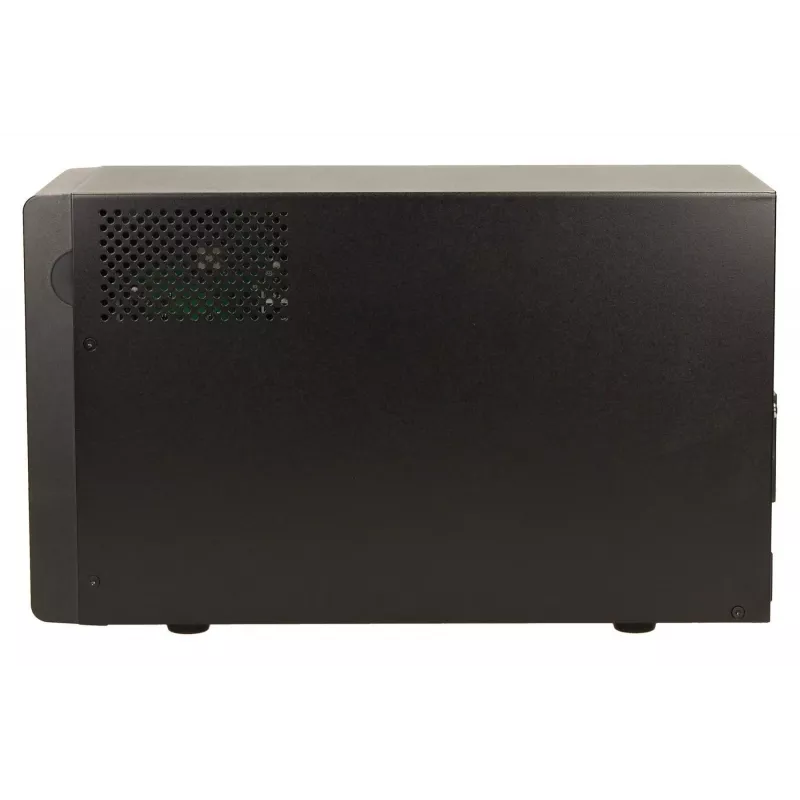

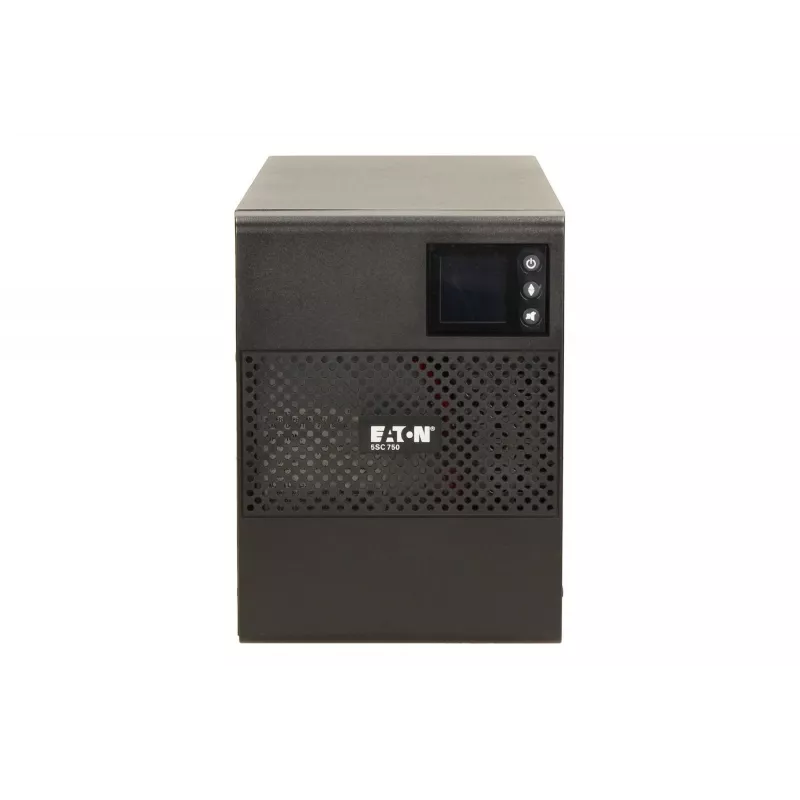

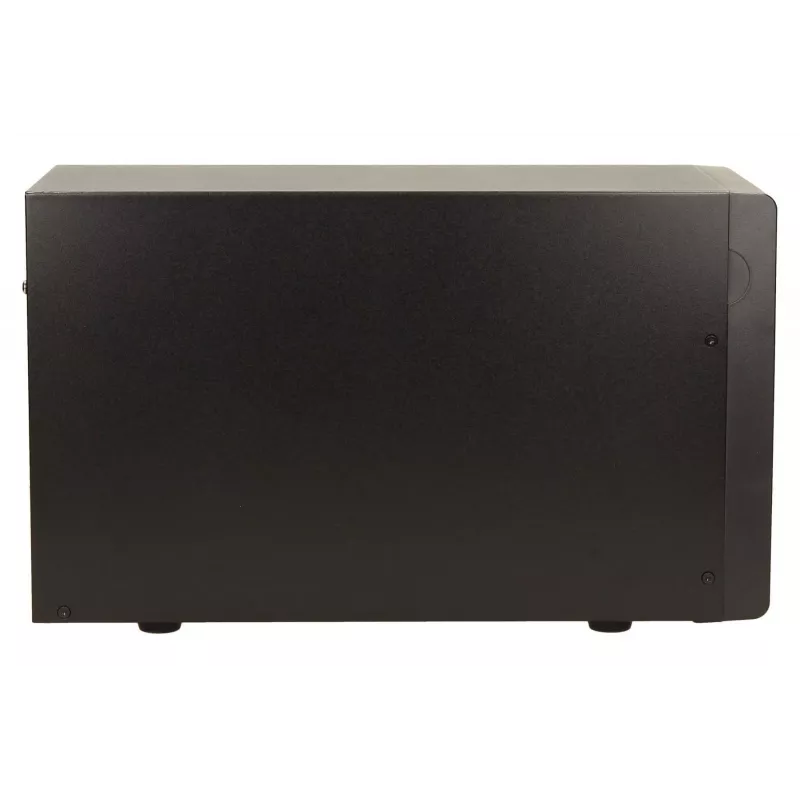

Sistema de alimentación ininterrumpida Eaton 5SC750i

The Eaton 5SC750i Uninterruptible Power Supply is a line-interactive tower UPS that delivers 0.75 kVA (525 W) of output power and provides sinewave output for compatibility with sensitive IT equipment. It includes an LCD interface for real-time status and measurements, six C13 AC outlets and a USB 2.0 port. Typical backup time is about 5 minutes at full load and 12 minutes at half load. Certifications include CE, GS and C-Tick.

Advantages

The Eaton 5SC750i offers reliable, cost-effective protection for small business servers and critical devices, with sinewave output to ensure compatibility with modern equipment and an LCD for clear status monitoring. Its tower form factor and six AC outlets make it practical for rack-adjacent or standalone installations.

Suitable for

• Small business servers and network equipment
• Workstations and office PCs that require clean sinewave power
• Network closets and standalone IT devices
• Short-term runtime needs for orderly shutdowns (approx. 5 min at full load)

Key specifications

• Output power: 525 W (0.75 kVA)

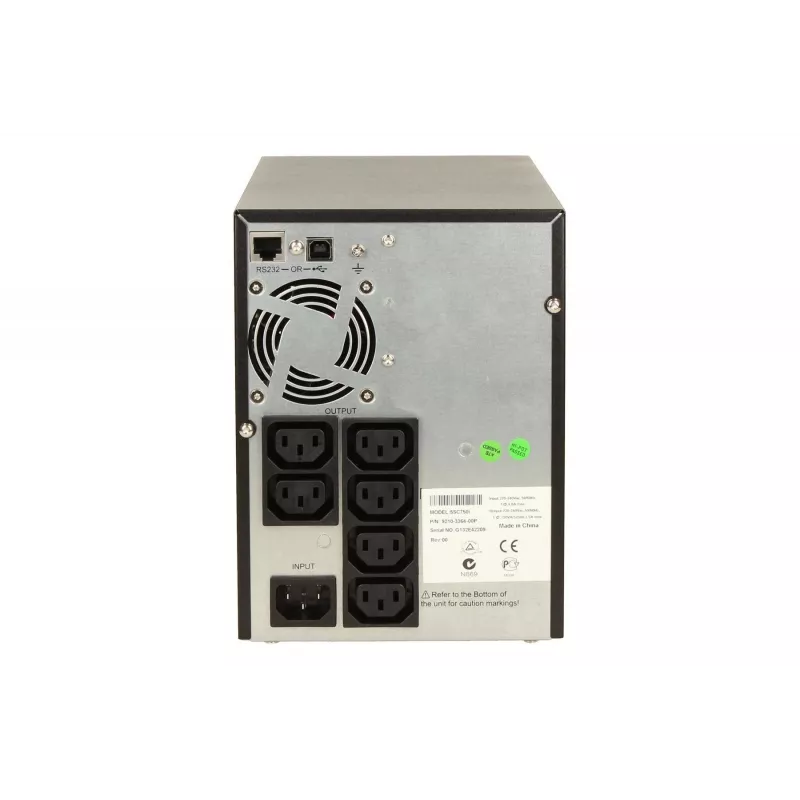

• AC outlets: 6 × C13
• Output waveform: Sinewave
• Ports: 1 × USB 2.0
• Typical backup time: ~5 min at full load, ~12 min at half load
• Form factor: Tower
• Weight: 10.4 kg
• Colour: Black
• Certifications: CE, GS, C-Tick

How to use

Place the UPS on a stable, level surface with adequate ventilation. Connect critical equipment to the C13 outlets and plug the UPS into a mains supply. Use the LCD to monitor status, load and battery state. For safe shutdowns during extended outages, configure connected equipment to perform an orderly shutdown when the UPS signals low battery via the USB connection and any supported management software.

Recommendations

Operate the UPS in a temperature-controlled environment within the manufacturer’s specified range, avoid blocking ventilation, and periodically test the battery and replace it according to Eaton’s maintenance schedule to ensure reliable backup performance.
