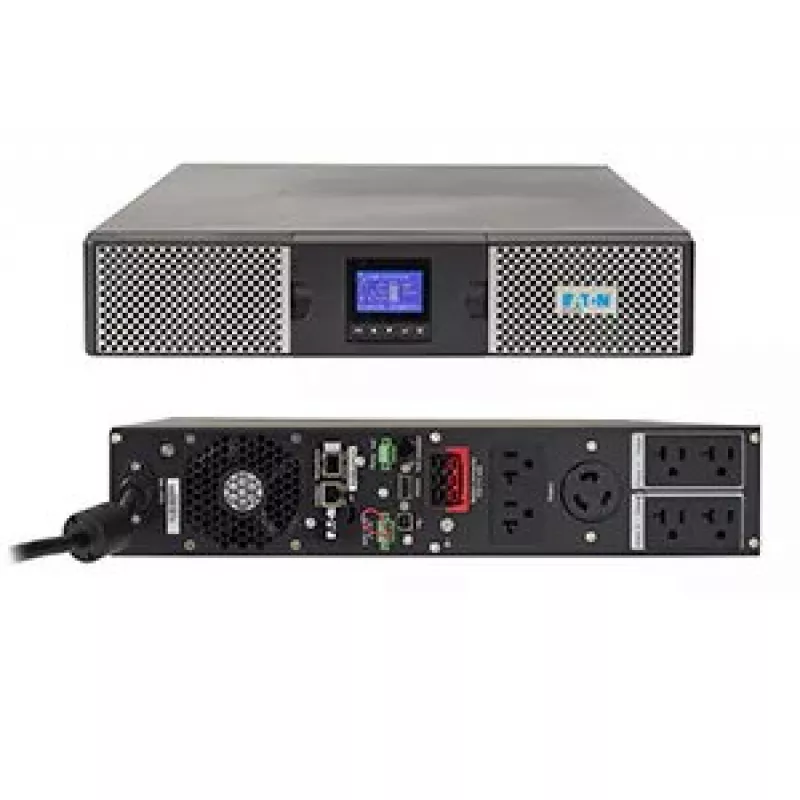

Sistema de alimentación ininterrumpida Eaton 9PX2000RT doble conversión online 2 kVA 1800 W 7 salidas de corriente alterna rack/torre 2U

Eaton 9PX2000RT is a double-conversion (online) uninterruptible power supply providing 2 kVA (1800 W) output with seven AC outlets and a NEMA 5-20P input. Designed for rackmount or tower (2U) installations, it uses sealed lead‑acid (VRLA) batteries and delivers up to 91% efficiency while offering consistent voltage and frequency regulation. The UPS includes a graphical LCD interface for local monitoring of settings, diagnostics and energy consumption, and is intended for protecting servers, network equipment and other critical IT loads in edge computing, network closets and small data center environments.

Advantages

The Eaton 9PX2000RT employs online double-conversion topology to provide continuous conditioned power, isolating connected equipment from power anomalies and ensuring seamless switchover to battery supply when needed. With up to 91% efficiency it reduces energy losses under normal operation, and the compact 2U form factor supports both rack and tower deployments for flexible installation. The integrated LCD offers straightforward local configuration and status information, while the use of sealed VRLA batteries simplifies maintenance and placement.

Suitable for

• Protecting 1U–2U servers and small rack-mounted systems
• Edge computing nodes and network closets
• Critical network equipment: switches, routers, firewalls
• Point-of-care or small medical devices requiring conditioned power
• Small virtualization hosts and storage arrays in remote locations

Key specifications

• Output capacity: 2 kVA / 1800 W
• Topology: Double-conversion (online) with pure sine wave output
• Number of outlets: Seven AC outlets (NEMA 5-20R / NEMA L5-20R)
• Input connector: NEMA 5-20P
• Batteries: Sealed lead‑acid (VRLA)
• Efficiency: 91%
• Form factor: Rackmount or tower, 2U height
• Color: Black
• Weight: 27.9 kg

How to use

Install the Eaton 9PX2000RT in a compatible 19-inch rack or place it on a stable shelf in tower orientation following the manufacturer's mounting instructions. Connect the UPS input to a properly rated AC power source using the NEMA 5-20P plug. Attach essential equipment to the provided outlets, prioritizing servers and networking gear that require uninterrupted power. Use the graphical LCD to configure output settings, alarm thresholds and scheduled shutdowns. Monitor battery health and load information periodically and, if available, integrate the UPS with management software for automated shutdown and event logging.

Recommendations

Place the UPS in a well-ventilated environment free from excessive dust and direct heat sources. Maintain a load level within the rated 1800 W capacity and allow headroom for short-term inrush currents from connected equipment. Schedule periodic battery tests and replace VRLA batteries according to vendor guidance or when runtime falls below operational requirements. For installations that require extended runtime or redundancy, consider adding compatible external battery modules or configuring parallel/2N strategies where supported.
