Sistema de alimentación ininterrumpida Eaton Ellipse PRO 1200 IEC

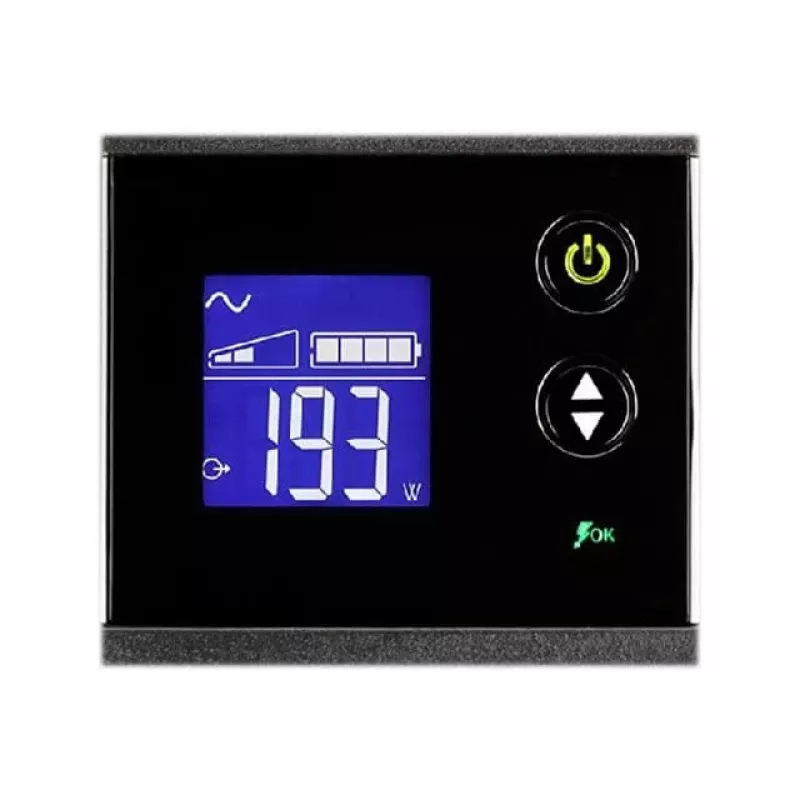

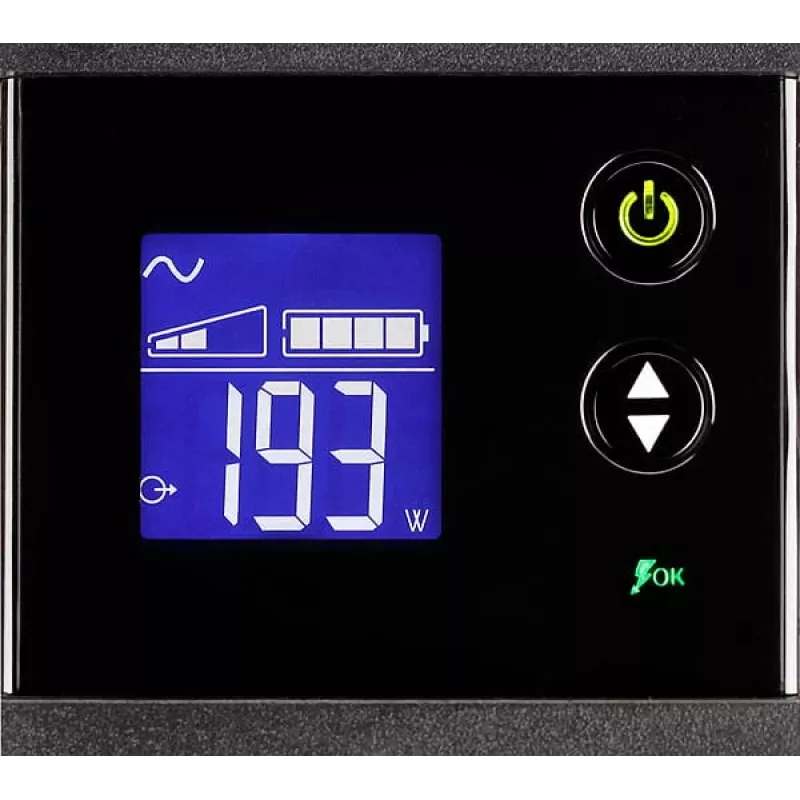

The Eaton Ellipse PRO 1200 IEC is a line-interactive uninterruptible power supply (UPS) designed to protect workstations running demanding applications. With a power capacity of 1.2 kVA (750 W), eight C13 AC outlets and a sealed lead-acid battery, it provides reliable short-term backup and power conditioning. The unit includes an LCD for real-time status and measurements, a compact extra-flat tower design with 2U rack capability, and a USB port for safe shutdown and configuration via Eaton UPS Companion software.

Advantages

The UPS delivers clean output using Automatic Voltage Regulation (AVR) with both buck and boost functions, reducing the need to switch to battery for minor voltage fluctuations. EcoControl outlets allow energy savings of up to 20% compared to previous-generation models. Advanced Surge Reduction (ASR) offers high-performance surge protection compliant with IEC 61643-1. The built-in LCD and USB connectivity enable monitoring, energy metering and orderly system shutdown.

Suitable for

• Office workstations and PCs with peripherals
• Small servers and network devices in branch offices
• Point-of-sale systems and POS terminals
• Home offices and remote work setups

Key specifications

• Model: Eaton Ellipse PRO 1200 IEC (ELP1200IEC)
• Output power capacity: 1.2 kVA / 750 W

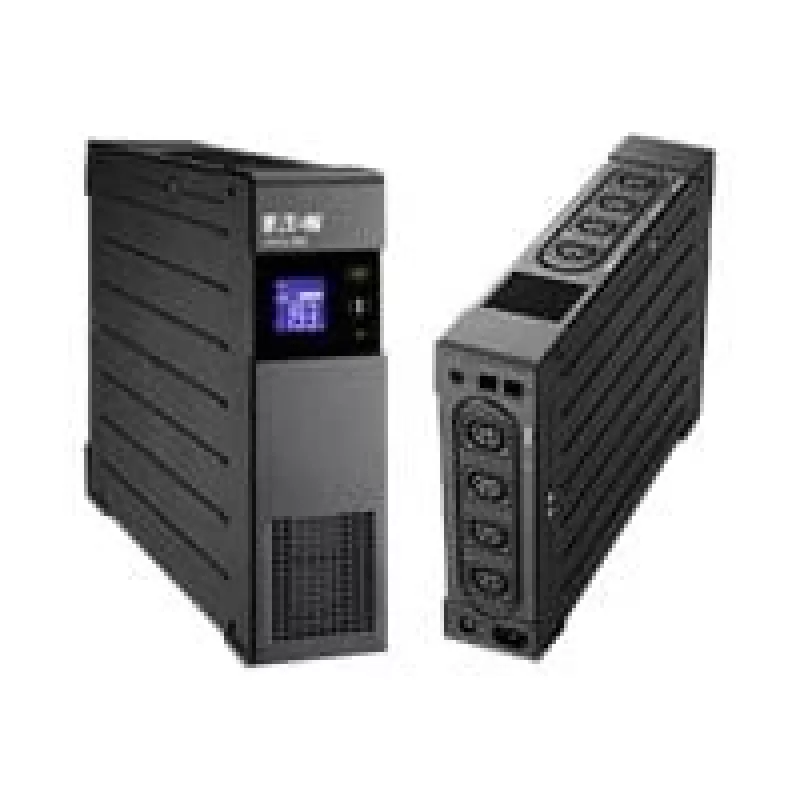

• AC outlets: 8 × C13
• Battery type: sealed lead-acid
• Typical backup time: approx. 9 minutes at half load
• Interfaces: 1 × USB 2.0

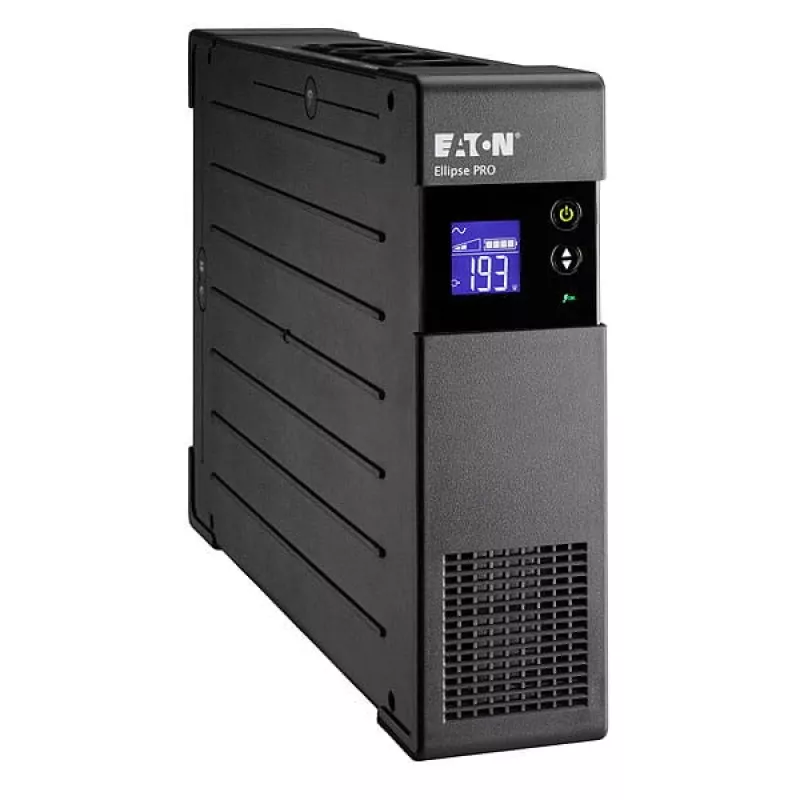

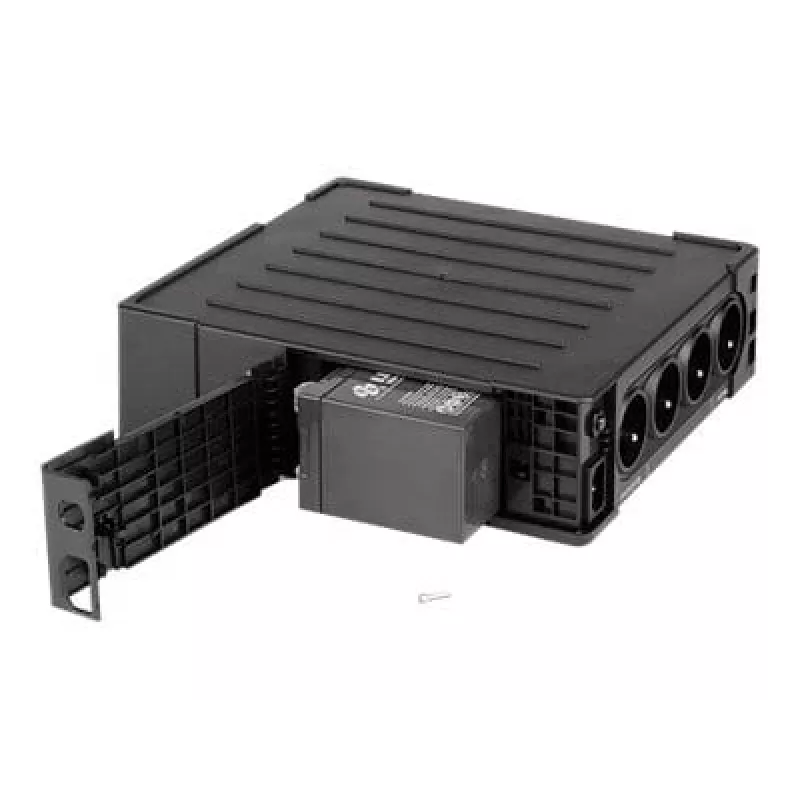

• Form factor: tower with 2U rack capability
• Compliance: IEC/EN safety standards; surge protection per IEC 61643-1
• Colour: Black; Weight: 9.9 kg

How to use

Place the UPS on a stable, ventilated surface or install it in a compatible 2U rack space. Connect critical equipment to the battery-backed AC outlets and non-critical loads to any EcoControl-switched outlets if available. Plug the UPS into a grounded mains outlet and connect the USB cable to your PC to enable Eaton UPS Companion features. Configure shutdown thresholds and monitoring settings in the software. Test the system after installation to confirm proper battery-backed operation and shutdown behavior.

Recommendations

For reliable performance, perform periodic battery self-tests and replace the sealed lead-acid battery according to Eaton’s maintenance schedule. Keep firmware and Eaton UPS Companion software up to date and avoid overloading the UPS beyond its 750 W rating.
