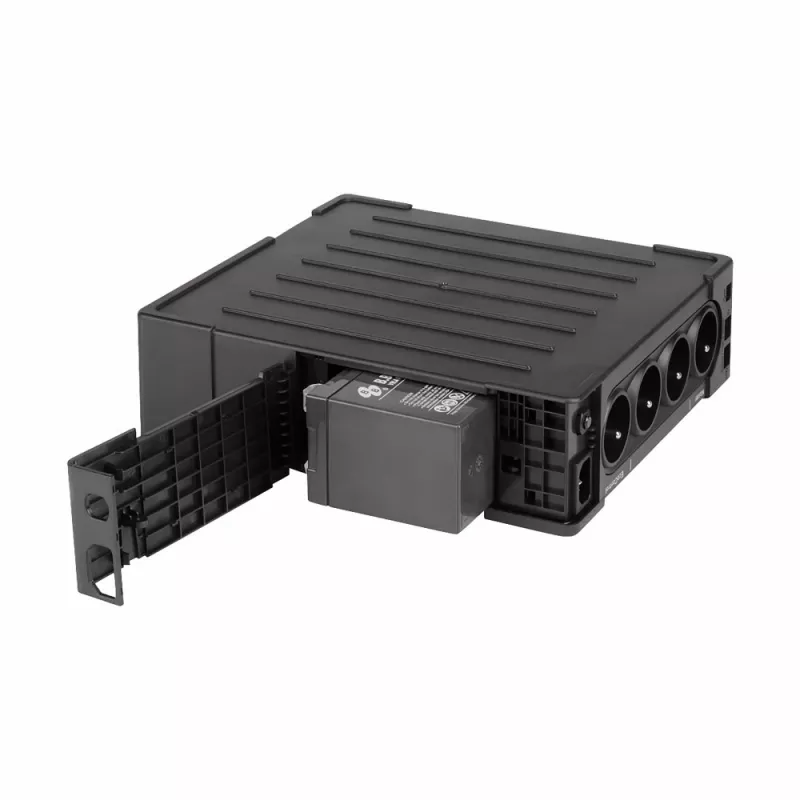

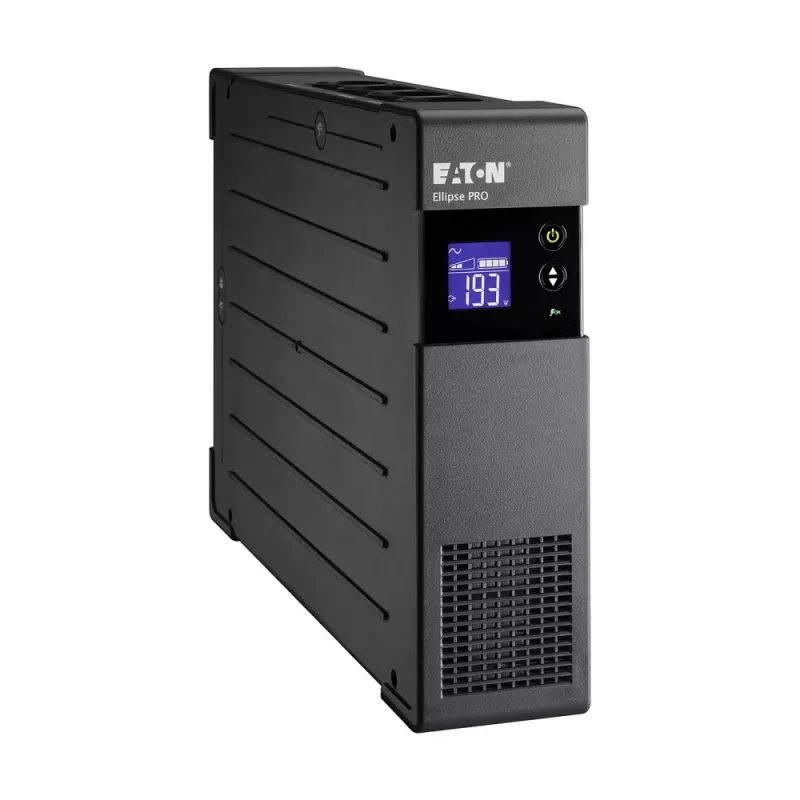

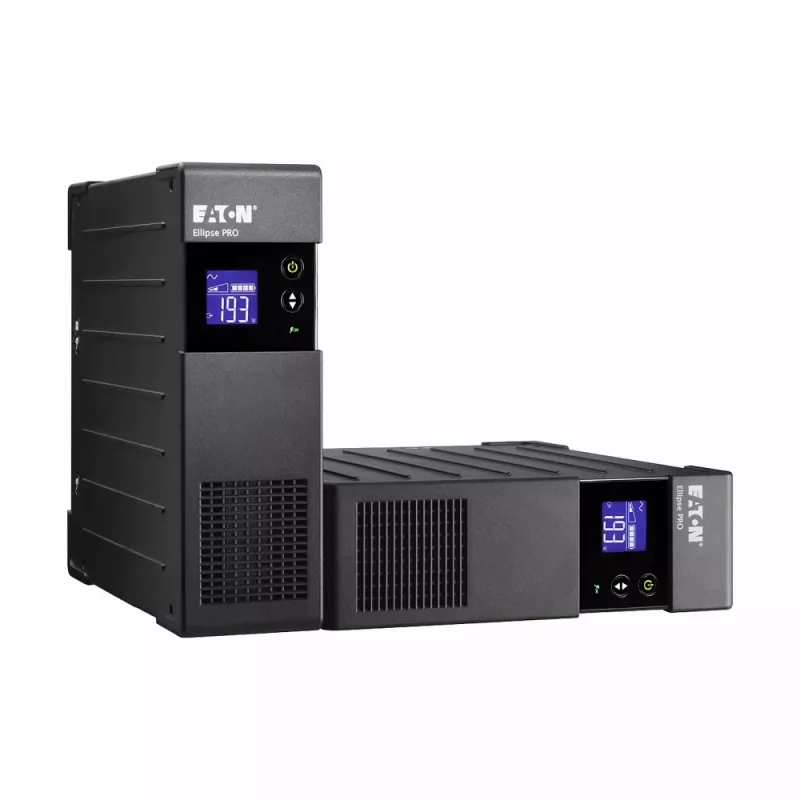

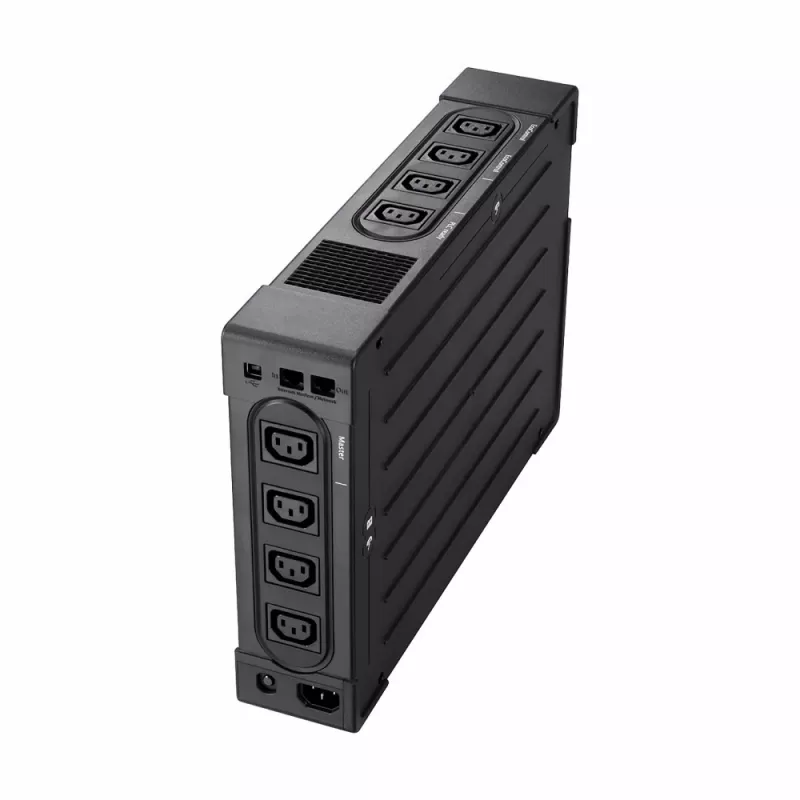

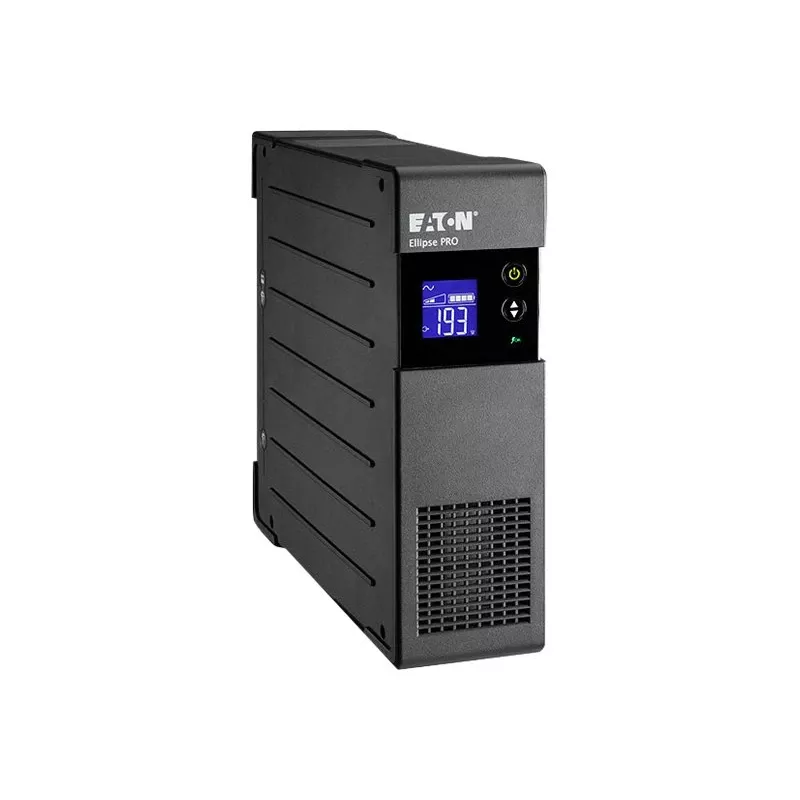

Sistema de alimentación ininterrumpida Eaton Ellipse PRO 1600 IEC

The Eaton Ellipse PRO 1600 IEC is a line-interactive uninterruptible power supply (UPS) designed to protect workstations and peripherals running demanding applications. With a power capacity of 1.6 kVA (1000 W output), eight C13 outlets and a sealed lead-acid battery, it supports short-term backup (typical 9 minutes at half load) and reliable voltage regulation in office and rack/tower setups.

Advantages

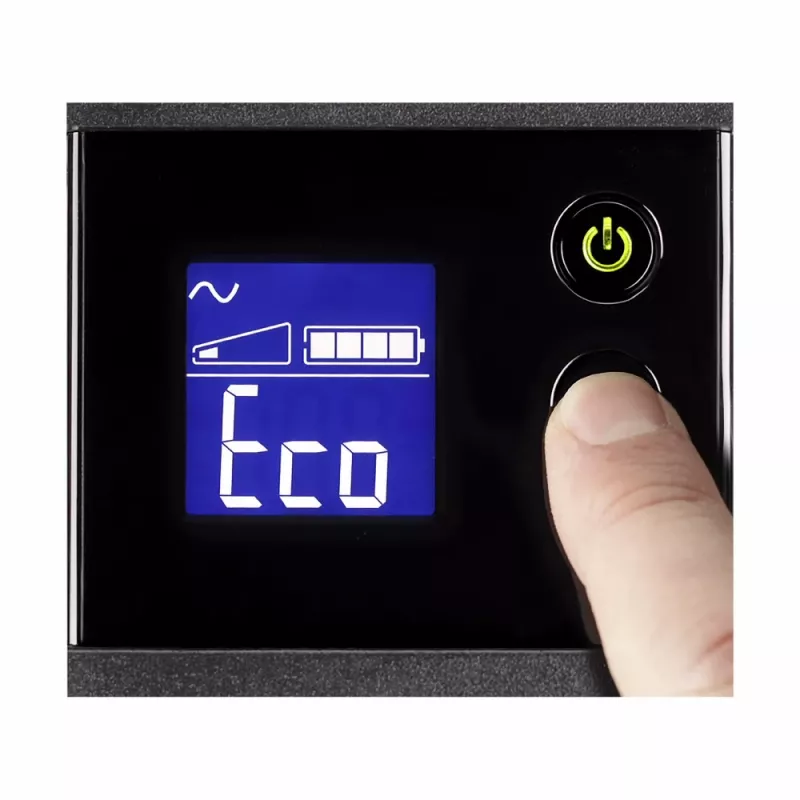

The UPS provides clean output with Automatic Voltage Regulation (AVR) featuring buck and boost functions, an LCD display for real-time status and measurements, and Advanced Surge Reduction (compliant with IEC 61643-1). EcoControl power outlets reduce energy use by up to 20% compared with previous-generation models. The unit includes a USB port and Eaton UPS Companion software for safe system shutdown, energy metering and configuration, and its extra-flat tower/rack-capable design fits into various office environments.

Suitable for

• Protecting desktop PCs and workstations running demanding applications
• Powering peripherals such as monitors, external drives and network equipment
• Small office or home office environments with tower or 2U rack requirements
• Locations requiring surge protection for Ethernet, internet and telephone lines

Key specifications

• Output power capacity: 1.6 kVA (1000 W)
• AC outlets: 8 C13 outlets
• Battery type: sealed lead-acid
• Typical backup time: ~9 minutes at half load
• Ports: USB 2.0 (1)
• Weight: 11.3 kg
• Colour: Black
• Standards: surge protection compliant with IEC 61643-1

How to use

Install the Eaton Ellipse PRO 1600 IEC on a stable surface or in a compatible 2U rack position, connect the UPS to mains power, and plug your PC and peripherals into the protected C13 outlets. Use the LCD to monitor input/output voltage, battery status and load in real time. Connect the USB port to a computer and install Eaton UPS Companion software to enable automatic, safe shutdown, energy metering and configuration of UPS settings. Ensure surge protection lines (Ethernet/phone) are connected where required.

Recommendations

For reliable protection, place the UPS in a ventilated area, avoid overloading beyond the 1000 W rating, periodically test the battery and replace it according to Eaton’s service intervals. Use the EcoControl outlets to switch non-essential devices off automatically to maximize energy savings.
