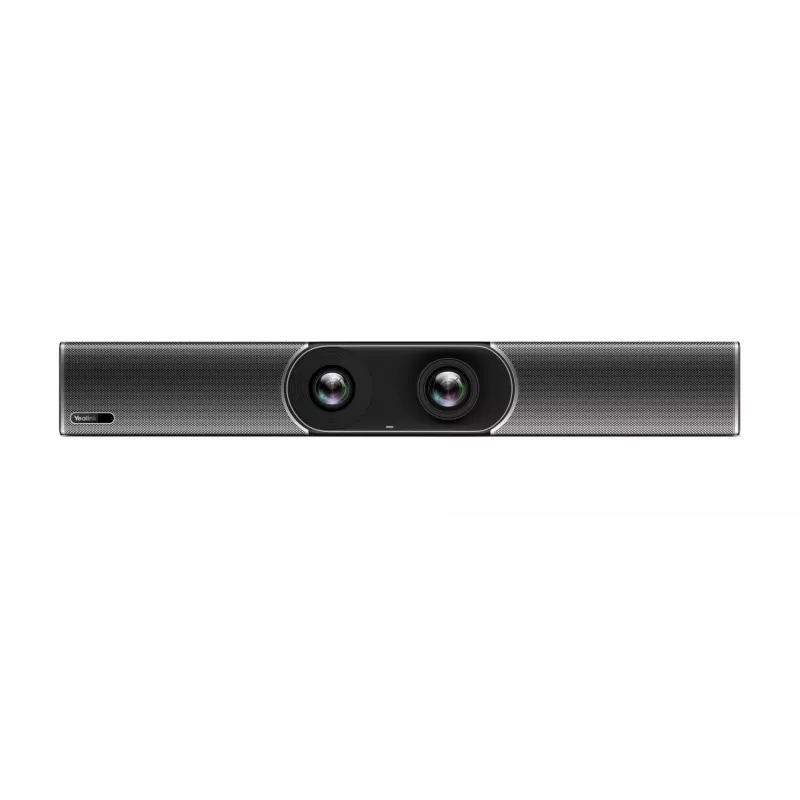

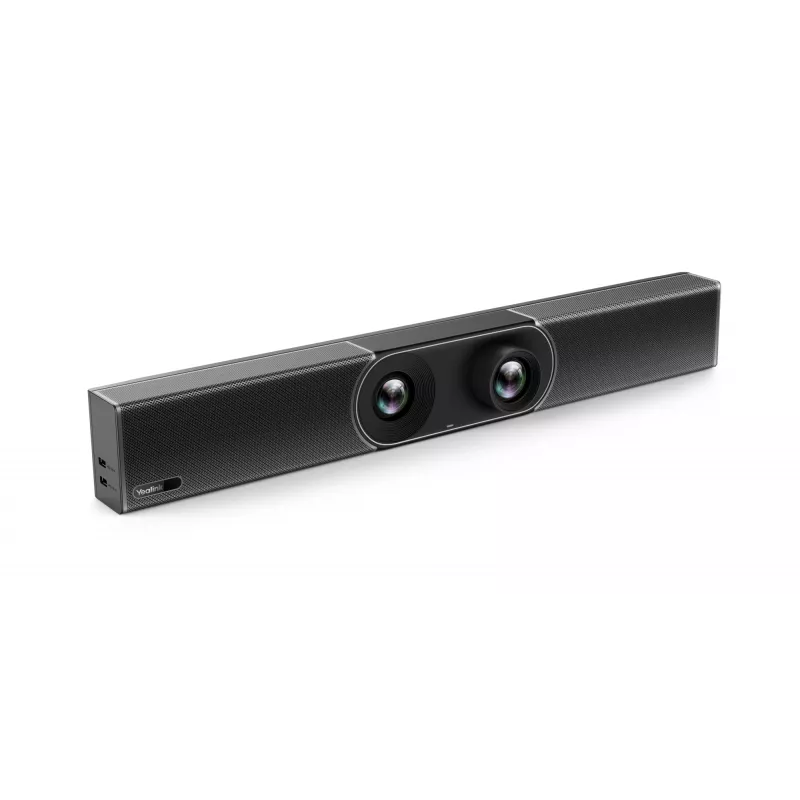

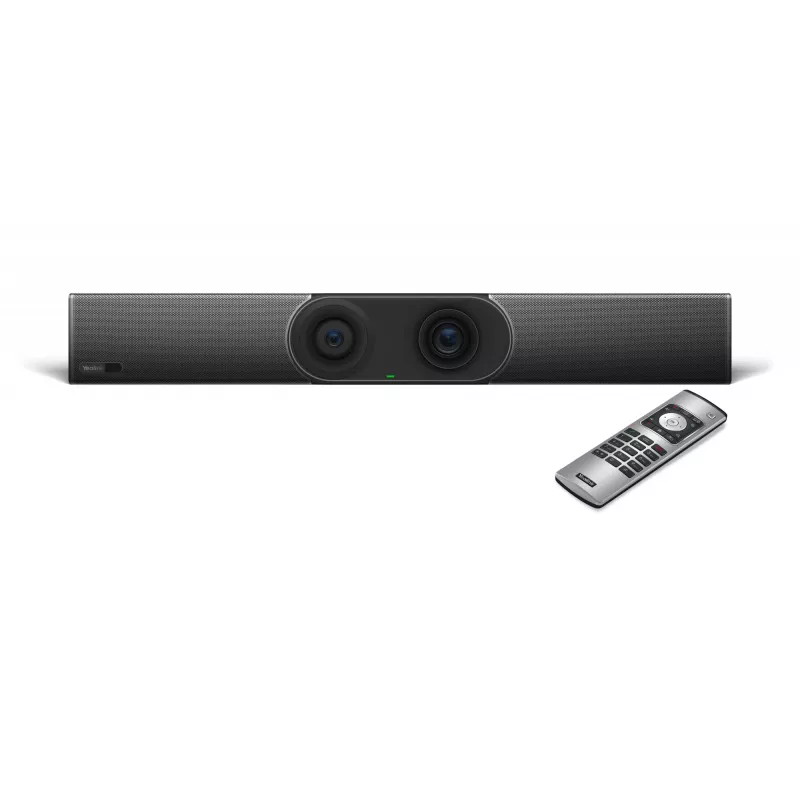

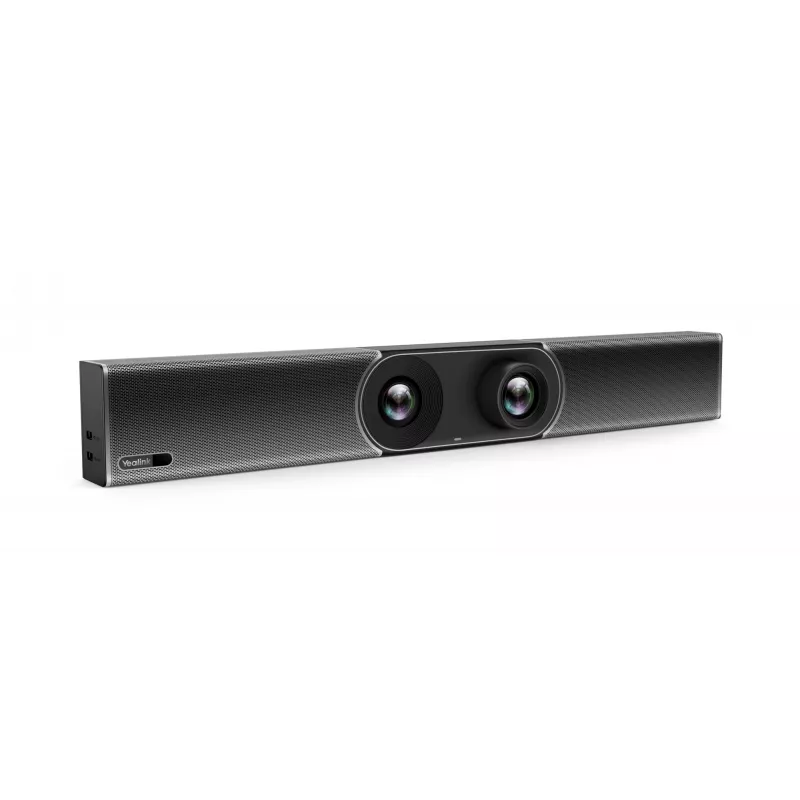

Sistema de videoconferencia Yealink MeetingBar A30 8 MP Ethernet LAN

MeetingBar A30, 4K UHD — an all-in-one video conferencing bar that combines an optical camera, an 8-megapixel digital camera, eight MEMS microphone arrays, speakers and an independent audio processing unit. The device is designed for quick plug-and-play deployment in dedicated small to medium meeting rooms without the need for a PC or separate components. Optional connection to a CTP18 touch panel provides additional meeting control. The MeetingBar A30 supports wireless content sharing with the WPP30 and extended wireless microphone setups such as the VCM36.

Advantages

The dual-camera system delivers both wide-angle coverage and 10x hybrid zoom for clear, depth-rich video that a single camera cannot achieve. Built-in 8 MEMS microphone arrays and a speaker provide voice coverage for medium rooms up to approximately 6 meters, while an independent audio processor enables full-duplex performance. Enhanced AI noise cancellation reduces background sounds like keyboard clicks, mouse clicks and footsteps for clearer speech. The WPP30 enables immediate wireless content sharing and stable low-latency presentation even in complex network environments. The MeetingBar A30 is compatible with major video platforms, allowing flexible deployment with the platform of your choice.

Key specifications

• Camera: Dual-camera system — optical camera with 10x hybrid zoom + 8 MP digital camera with 120° field of view
• Video resolution: up to 4K UHD
• Microphones: 8 MEMS microphone arrays
• Audio: Built-in speaker and independent audio processing unit, full-duplex support
• Noise cancellation: AI-enhanced noise suppression using deep-learning sound database
• Wireless presentation: Supports WPP30 for wireless content sharing
• Wireless microphones: Compatible with extended VCM36 solutions
• Control: Optional connection to CTP18 touch panel

How to use

Mount the MeetingBar A30 in the conference room and connect power and network according to the installation guide. For a dedicated small to medium room, plug the device in and it will operate without a PC or separate components. If required, pair the WPP30 dongle to enable wireless content sharing, or connect VCM36 microphones for extended coverage. Optionally connect a CTP18 touch panel for on-site meeting control. Adjust camera framing and audio settings through the device interface or the connected control panel before starting the meeting.

Recommendations

Place the MeetingBar A30 centrally under or above the display and keep the room microphones and participants within the recommended 6-meter coverage to ensure optimal audio pickup. Use the WPP30 for quick wireless presentations and consider adding VCM36 units for larger spaces. Ensure network stability for best performance and verify compatibility with your preferred video platform before deployment.
