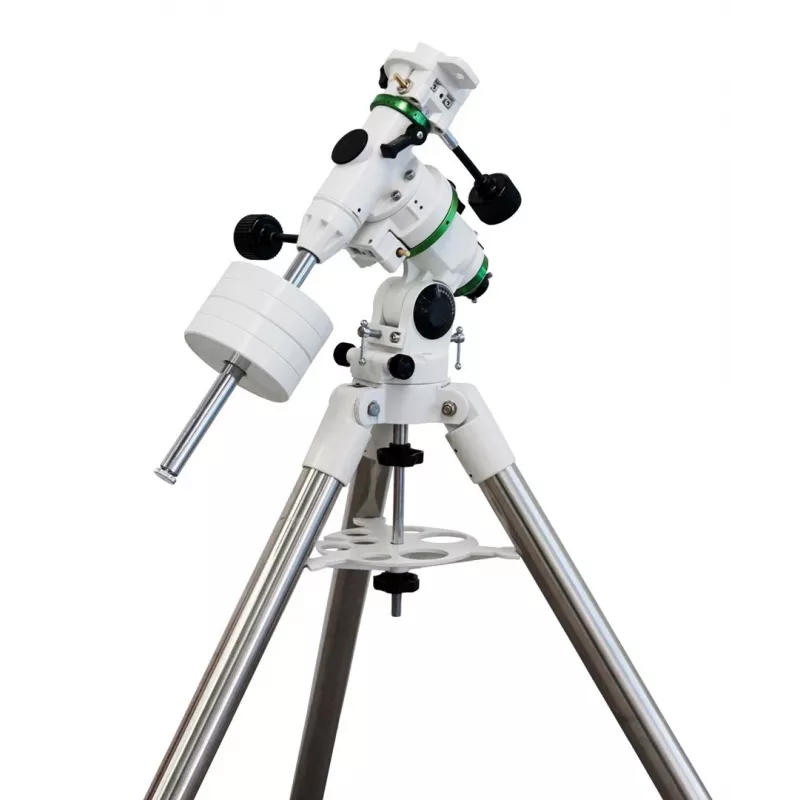

Montura paraláctica Skywatcher EQM-35 con trípode NEQ5

Skywatcher EQM-35 equatorial mount paired with the NEQ5 tripod is a precision mechanical solution for astronomical observing and astrophotography. The mount provides independent right ascension and declination axes for accurate sidereal tracking and polar alignment, while the NEQ5 tripod delivers a stable base for small to medium-sized telescopes. This combination supports visual observation, guided and unguided long-exposure imaging, and standard polar-alignment workflows.

Advantages

The mount’s equatorial design simplifies tracking of celestial objects by compensating for Earth’s rotation, enabling smoother long-exposure imaging and easier follow-up during visual observing sessions. The integrated declination and right ascension controls allow precise manual adjustments and tracking. The NEQ5 tripod contributes rigid support and adjustable height to adapt to different observing locations. Together they form a compact, transportable setup that balances stability with portability.

Suitable for

• Visual planetary and deep-sky observing with small to medium telescopes
• Long-exposure astrophotography with guiding
• Polar alignment and calibration procedures
• Field use where portability and stable tracking are required

Key specifications

• Equatorial configuration with right ascension and declination axes for sidereal tracking
• Mechanical slow-motion controls for precise manual adjustments
• Designed load capacity suitable for small to medium telescopes and imaging accessories
• NEQ5 tripod with adjustable leg heights and rigid support structure
• Polar alignment capability for improved tracking accuracy during long exposures

How to use

Assemble the mount on the NEQ5 tripod and level the tripod before mounting the optical tube. Perform an initial polar alignment by sighting the polar axis toward the celestial pole and use the mount’s adjustment controls to refine alignment. Mount the telescope and any imaging equipment, balance the system on both axes, and use the right ascension drive or manual slow-motion control to track objects across the sky. For long-exposure imaging, connect guiding equipment or follow standard guiding procedures and periodically verify alignment and balance.

Recommendations

Ensure the mount and tripod are set on firm, level ground and re-check polar alignment after relocation. Balance the telescope carefully on both axes to reduce stress on bearings and improve tracking performance. Use appropriate counterweights and follow the manufacturer’s handling guidance for mounting and dismounting optical equipment.
