SMS Smart Media Solutions Func negro capacidad máxima 50 kg ángulo de inclinación -10 a 10 grados

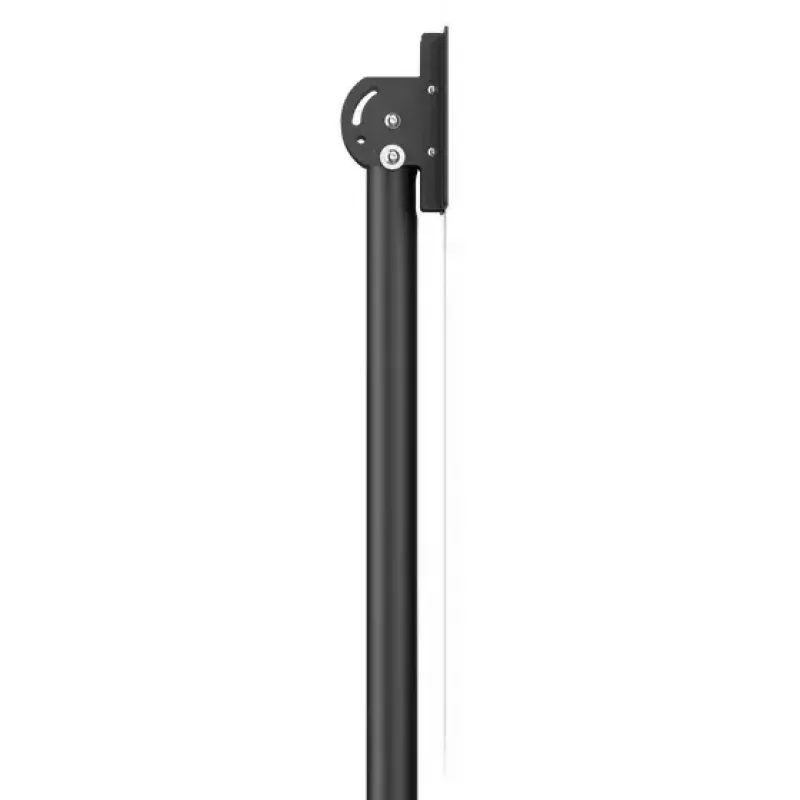

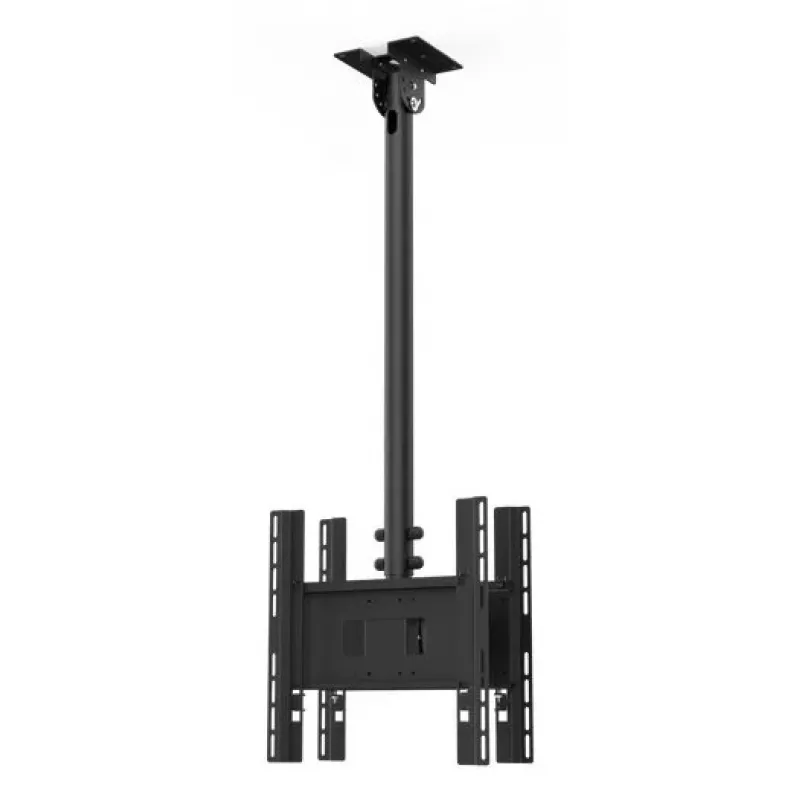

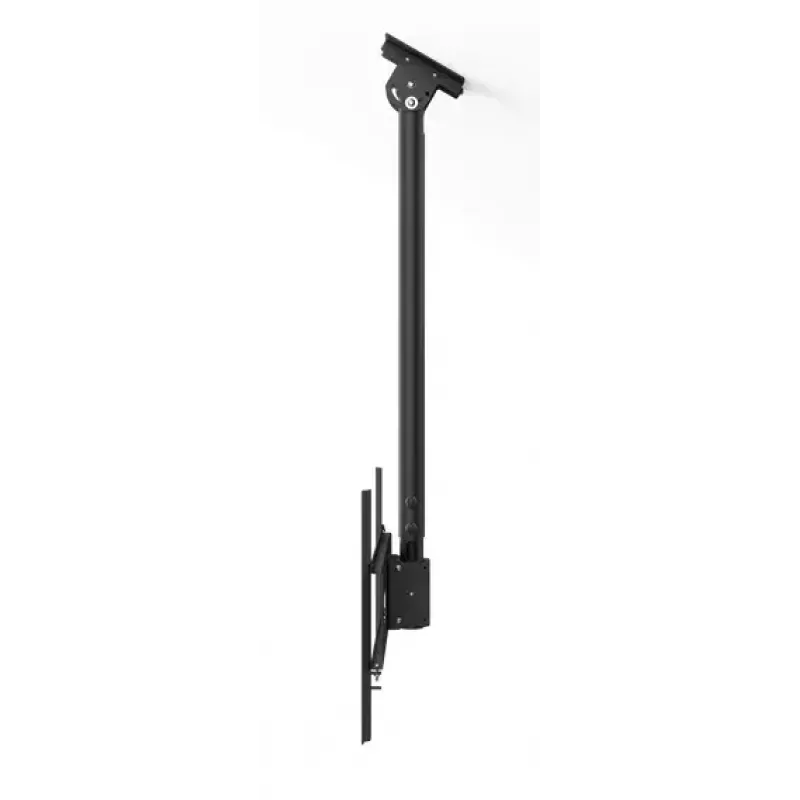

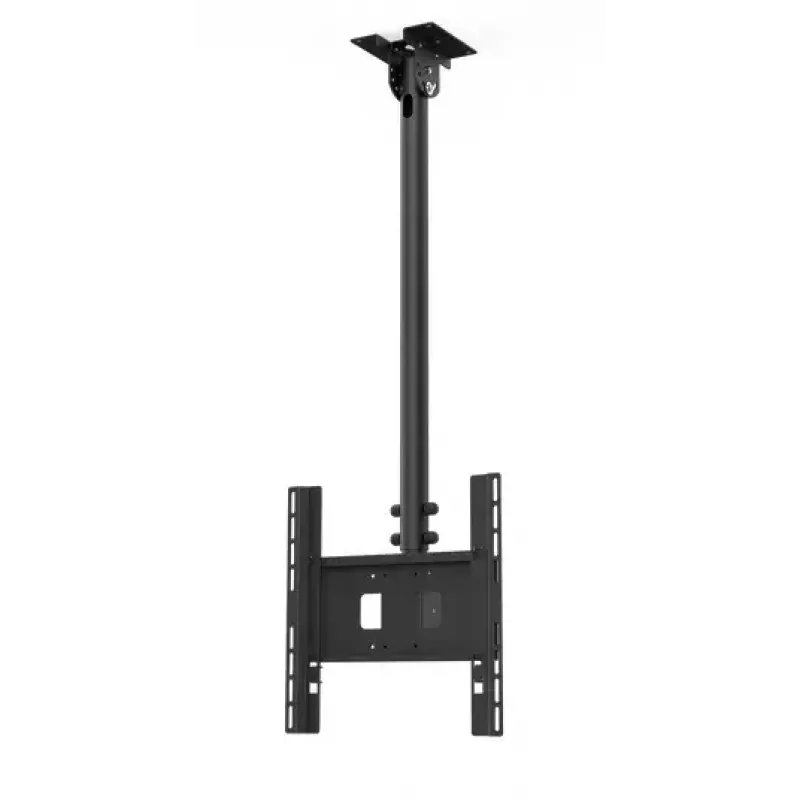

Func Ceiling by SMS Smart Media Solutions is a ceiling mount suited for single displays or two displays mounted back to back. The black metal mount supports displays up to 50 kg and offers a tilt range from -10° to 10° to achieve an optimal viewing angle. Cables can be routed through the mounting pipe, and the updated model provides additional cable exit points at the top and bottom plus improved stability and adjustability.

Advantages

The Func Ceiling mount combines a compact, neat design with robust load capacity and updated mechanical stability. It allows discreet cable management through the pole and offers enhanced adjustability and multiple cable exit points for flexible installation. The tiltable mechanism enables fine tuning of the display angle while the black finish fits both home and professional environments.

Suitable for

• Mounting a single TV or monitor up to 50 kg from the ceiling
• Installing two displays back-to-back for public spaces or control rooms
• Environments requiring discreet cable routing and a low-profile ceiling solution

Key specifications

• Brand: SMS Smart Media Solutions
• Model: Func Ceiling (MPN 02-116-1, EAN 7331394939076)
• Maximum weight capacity: 50 kg
• Tilt angle: -10° to 10°
• Colour: Black

How to use

Secure the ceiling mount to a suitable structural ceiling anchor following local building codes and the mount’s installation instructions. Attach the display bracket to the screen VESA interface, feed cables through the mounting pipe and out through the desired exit points, then fasten the display to the ceiling pole. Adjust the tilt within the -10° to 10° range to obtain the preferred viewing angle and tighten all adjustment points to lock the position.

Recommendations

Ensure the ceiling structure and fixing hardware can support the combined weight of the mount and display (up to 50 kg). Use appropriate anchors for the ceiling material, route cables safely, and verify all fasteners are tightened after adjustment. For dual back-to-back installations confirm compatibility with both displays’ VESA patterns and weight.
