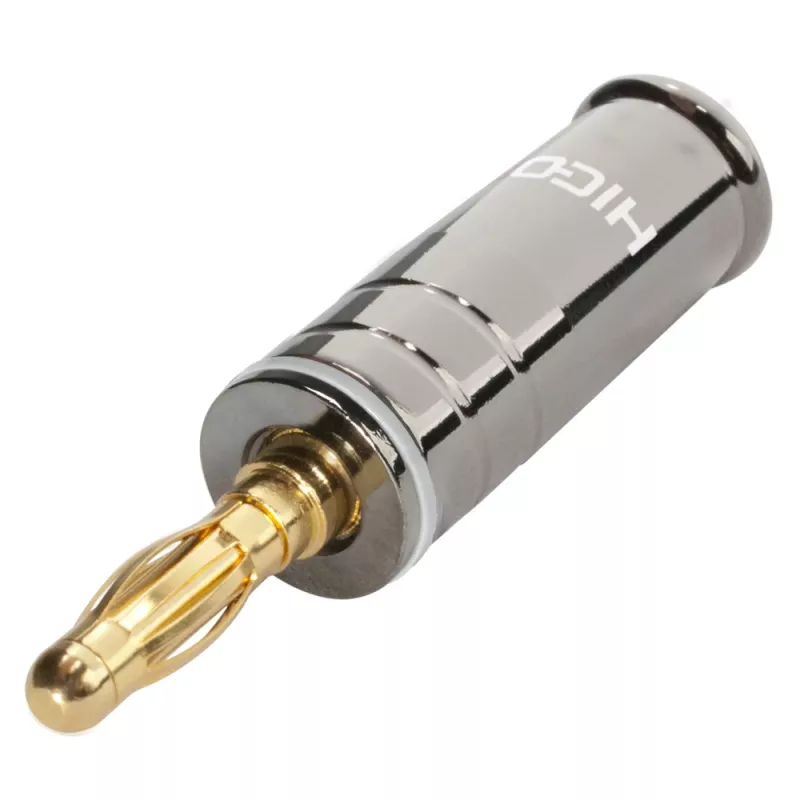

Sommer Cable HICON conector banana macho con contacto por tornillo, codificación blanca

The Sommer Cable HICON HI-BM04-WHT is a high-quality banana plug connector designed for professional audio and speaker cable applications. Featuring a robust screw contact mechanism, it ensures a secure and reliable connection without soldering, making it ideal for DIY enthusiasts and technicians. The gold-plated brass contacts provide excellent signal transfer and corrosion resistance, while the nickel-plated metal housing offers durability. The white color coding aids in easy identification of channels or polarity.

Advantages

This banana plug offers easy assembly with its screw-type contact, eliminating the need for soldering. The 4 mm pin diameter is compatible with standard banana jacks, and the connector can accommodate cables up to 6.5 mm diameter with a conductor cross-section up to 6 mm² (AWG 10). The gold-plated contacts ensure low resistance and high fidelity audio transmission.

Suitable for

• Speaker cables and audio systems
• DIY cable assembly
• Professional audio installations
• High-fidelity audio connections

Key specifications

• Connector Type: Banana Plug
• Connection Method: Screw Contact (Solderless)
• Pin Diameter: 4 mm
• Max. Cable Diameter: 6.5 mm
• Max. Conductor Cross-section: 6 mm² (AWG 10)
• Contact Material: Gold-plated Brass
• Housing Material: Nickel-plated Brass
• Color Coding: White
• Series: HICON
• Quantity: 1 Piece

Recommendations

For optimal performance, use with high-quality speaker cables and ensure proper tightening of the screw contact. Suitable for both professional and home audio setups.
