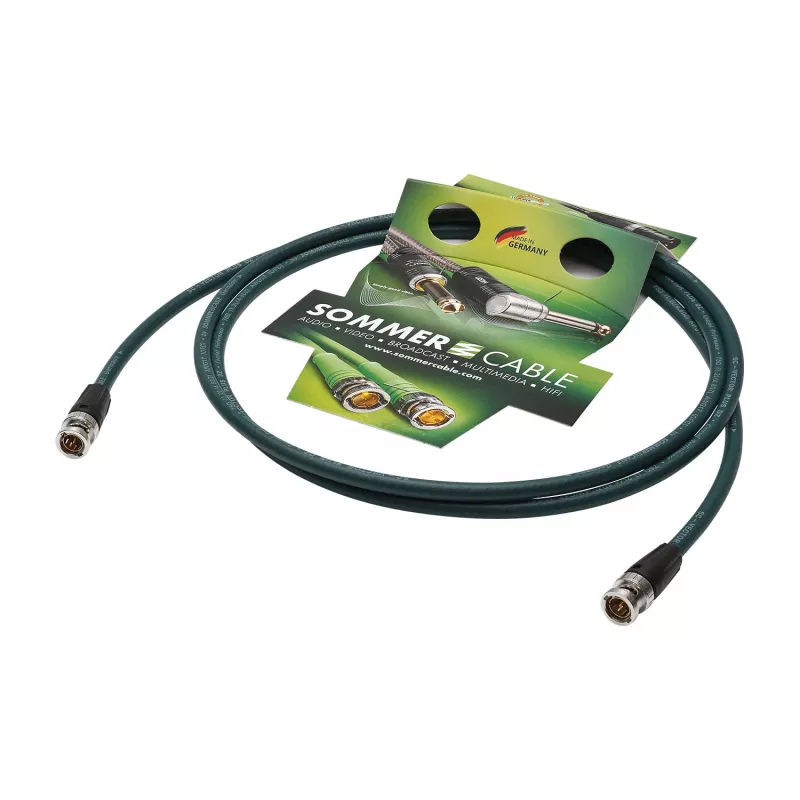

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ Cable de vídeo Patch UHD, conector BNC macho a conector BNC macho, NEUTRIK, verde, 5 m (DZGR-0500-GN-SW)

The Sommer Cable SC-Vector PLUS 1.2/4.8 DZ is a professional coaxial video patch cable designed for high-definition broadcast and studio applications. With a length of 1 meter and BNC male connectors on both ends, this cable delivers reliable signal transmission for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI video standards. The 75-ohm impedance, solid bare copper conductor, and double shielding ensure minimal signal loss and interference.

Advantages

This cable offers exceptional performance with gas-injected foam PE dielectric for low capacitance and high velocity of propagation. The gold-plated center pins provide corrosion-resistant connections, while the robust PVC jacket protects against wear and tear. Ideal for demanding environments, it supports high-bandwidth video signals up to 12G-SDI.

Suitable for

• Professional broadcast studios
• Video production and post-production
• HD-SDI and 3G-SDI signal distribution
• High-definition video patching in racks

Key specifications

• Cable type: Coaxial video cable
• Impedance: 75 Ohm
• Connectors: BNC male to BNC male
• Connector plating: Gold-plated center pin
• Cable length: 1.0 meter
• Conductor: Solid bare copper, 1.20 mm
• Dielectric: Gas-injected foam PE, 4.80 mm
• Shielding: Double (AL/PT foil + tinned copper braid)
• Jacket: PVC, 7.00 mm diameter
• Supported video standards: HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
• Velocity of propagation: Approx. 82%
• Capacitance: Approx. 52 pF/m
• Operating temperature: -30 °C to +70 °C

Recommendations

For optimal performance in high-bandwidth video applications, pair this cable with compatible BNC connectors and ensure proper cable management to avoid signal degradation.
