Soporte de montaje para HDD Goobay de 2,5" a 3,5" – doble

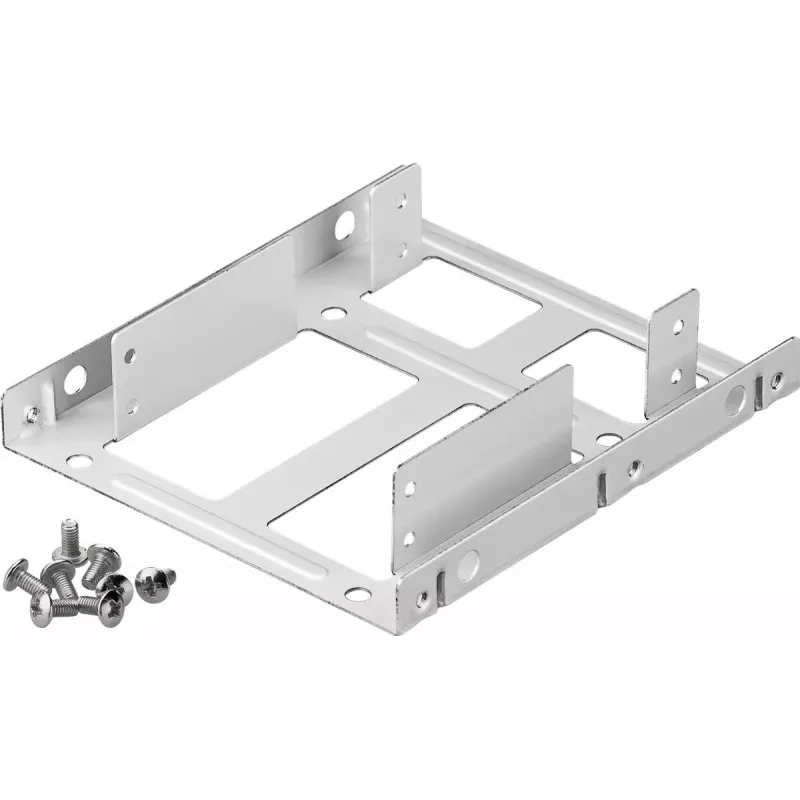

The Goobay 2.5 Inch to 3.5 Inch HDD Mounting Bracket (2-fold) by WENTRONIC is a metal adapter frame that fits into a standard 3.5" drive bay and accepts up to two 2.5" hard drives or SSDs. It has a silver finish and compact dimensions of 103 mm (W) × 115 mm (D) × 25 mm (H). The bracket is supplied as a single piece and is intended for secure installation of 2.5" storage devices into 3.5" chassis slots.

Advantages

The mounting bracket supports installation of two 2.5" drives in one 3.5" bay, offering a simple mechanical solution for adding or replacing storage without modifying the chassis. Its metal construction provides stable fixation and the standard form factor ensures compatibility with most desktop PC enclosures. The silver finish gives a neutral appearance suitable for visible bays.

Suitable for

• Installing one or two 2.5" HDDs or SSDs into a 3.5" drive bay
• Upgrading laptop drives in desktop PCs
• Adding extra storage to small-form-factor systems that use 3.5" bays

Key specifications

• Brand: WENTRONIC (Goobay)
• Model / MPN: 95875
• EAN: 4040849958755
• Compatibility: fits standard 3.5" drive bay, holds up to two 2.5" drives
• Material / Finish: metal, silver
• Dimensions: 103 mm (W) × 115 mm (D) × 25 mm (H)
• Package contents: 1 mounting bracket

How to use

Fit the bracket into an empty 3.5" bay in your desktop chassis and secure it with the bay screws. Mount each 2.5" drive into the bracket using the appropriate screw holes provided, then connect power and data cables to the drives. Ensure the drives are firmly fastened and that cables are routed to avoid strain before closing the case.

Recommendations

Use standard 2.5" mounting screws and avoid overtightening. Confirm compatibility of drive thickness (commonly 7 mm or 9.5 mm) with the bracket and your drives before installation.
