Soporte de pared DAHUA PFB204W-B negro — soporte para cámaras domo, montaje en exterior/interior

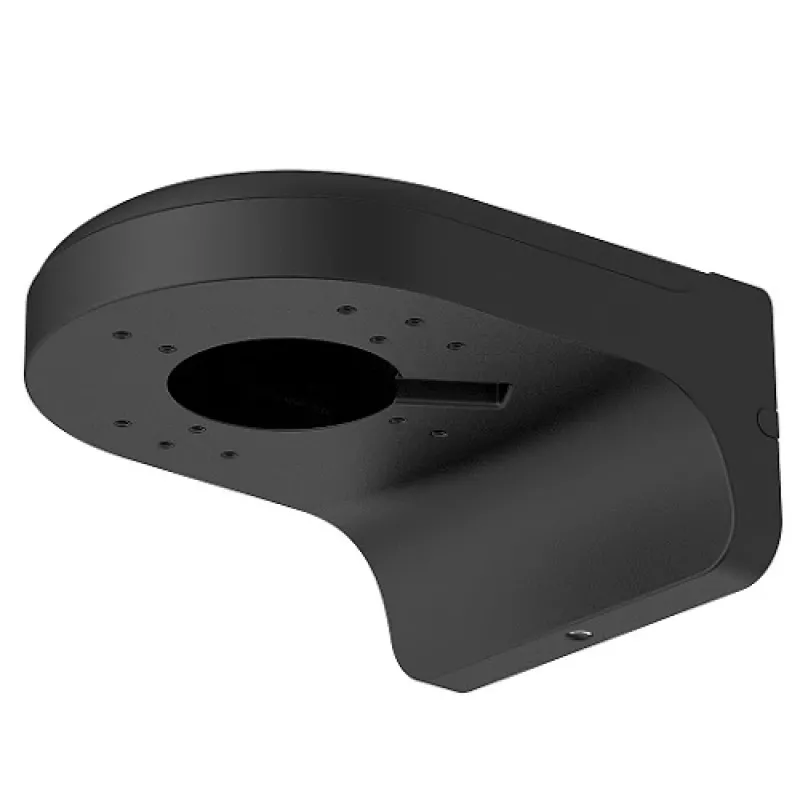

DAHUA PFB204W-B is a black aluminum wall mount bracket designed for fixed installation of dome surveillance cameras. It provides a compact, integrated solution for attaching compatible DAHUA dome cameras to vertical surfaces for indoor and outdoor CCTV applications, enabling tidy cable routing and reliable support.

Advantages

The bracket is made of aluminum for reduced weight and corrosion resistance and features a neat, integrated design for a discreet appearance. Its construction supports stable mounting with a rated load bearing of 1.0 kg and is suitable for varied environmental conditions with an operating temperature range from -40°C to 60°C and humidity tolerance up to 90% RH.

Suitable for

• Mounting DAHUA dome cameras on exterior and interior walls
• Surveillance installations requiring compact, low-profile brackets
• Applications where modest load capacity (up to 1.0 kg) is sufficient

Key specifications

• Material: Aluminum
• Dimensions (L × W × H): 160 mm × 122 mm × 76 mm
• Operating temperature: -40°C to 60°C
• Humidity: 0–90% RH
• Load bearing: 1.0 kg
• Weight: 0.49 kg
• Color: Black
• Model / MPN: PFB204W-B
• Compatibility: For DAHUA dome cameras that match this bracket shape (see manufacturer compatibility list)

How to use

Fix the bracket to a vertical wall using appropriate anchors and screws for the wall material. Attach the compatible dome camera to the bracket following the camera manufacturer’s mounting instructions, route cables through the bracket as needed, and tighten fasteners to ensure stable positioning. Verify correct camera angle and secure all connections before finalizing installation.

Recommendations

Use suitable wall anchors for the substrate (concrete, brick, drywall) and do not exceed the specified 1.0 kg load. Refer to the DAHUA compatibility/download list to confirm camera fit, and perform periodic checks for corrosion, tightness of fasteners and cable integrity in outdoor installations.
