Soporte de pared fijo Hagor BL 800 para TVs de 65 pulgadas

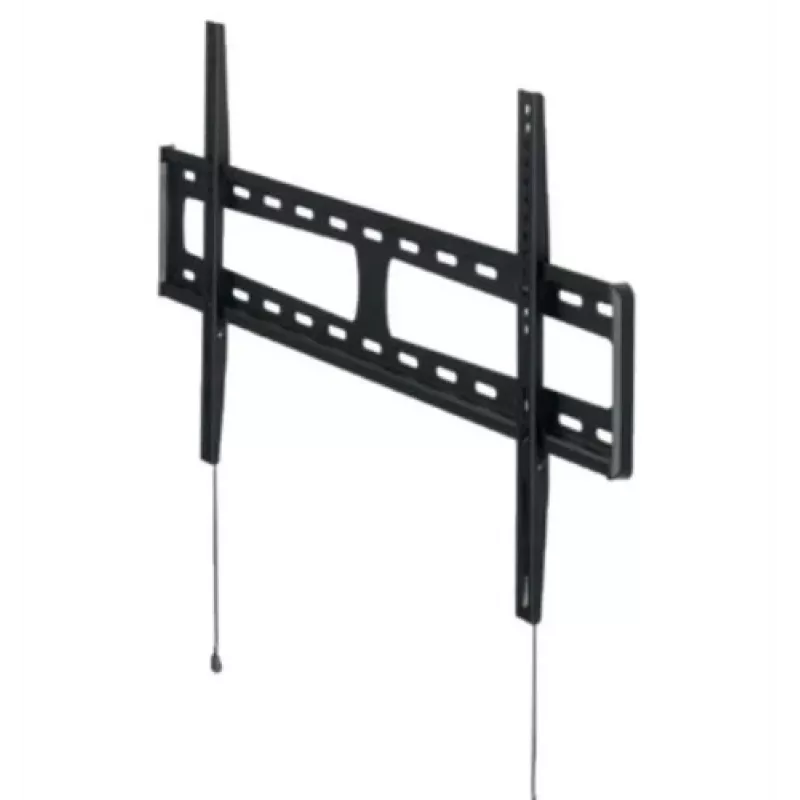

The BL Fixed 800 is a slim, fixed wall mount designed for flat-panel screens from 46" to 65" (116–165 cm). It supports a wide range of VESA patterns from 100 x 100 mm up to 800 x 600 mm, offers a compact 22 mm distance to the wall and holds up to 60 kg. The mount is powder-coated in black for impact and scratch resistance and includes an integrated bubble level for straightforward horizontal alignment.

Advantages

The wall mount combines a low-profile, stable design with broad VESA compatibility and a high load capacity of 60 kg. An integrated bubble level simplifies accurate installation, while a click system with an unlocking function secures the screen and allows quick assembly. Quick-tension cable holders are magnetically attached behind the screen and can be pulled down to release the display from the wall plate for cable access.

Suitable for

• Mounting 46"–65" TVs or displays
• Installations requiring VESA up to 800 x 600 mm
• Low-profile wall installations where minimal wall distance is needed
• Single-display residential or commercial setups

Key specifications

• Compatible screen size: 46"–65" (116–165 cm)
• Maximum load: 60 kg
• Supported VESA: 100 x 100 mm up to 800 x 600 mm
• Wall distance: 22 mm
• Colour: Black (powder-coated, impact and scratch resistant)
• Mount type: Fixed wall mount

How to use

Attach the wall plate to a suitable load-bearing surface using appropriate screws and anchors for your wall type. Use the integrated bubble level to align the plate horizontally before tightening fasteners. Mount the VESA brackets to the display, lift the screen onto the wall plate until the click system secures it, and verify the locking function. Place the quick-tension cable holders behind the screen using the magnet; pull them down when you need to unlock the display from the plate to access cables.

Recommendations

Verify that the wall structure and fixings are rated for the combined weight of the display and mount (maximum 60 kg). Use appropriate anchors for drywall, masonry or concrete and follow the display manufacturer’s instructions for attaching VESA brackets. Check the click-lock engagement after mounting and route cables before final installation.
