Soporte de pared fijo MANHATTAN 461993 para pantallas de 60–100", acero, máx. VESA 900x600, 100 kg

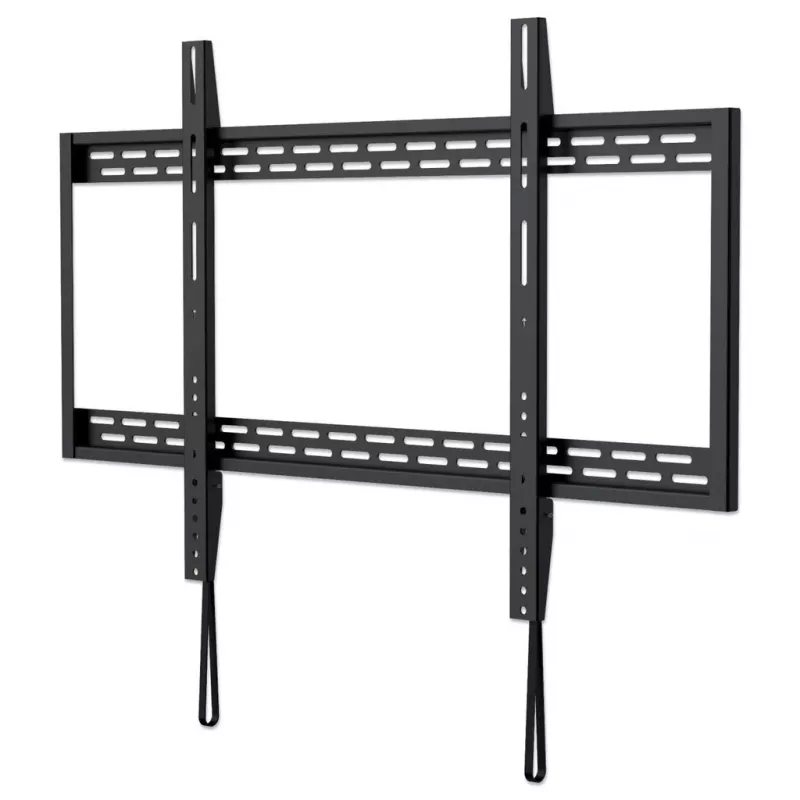

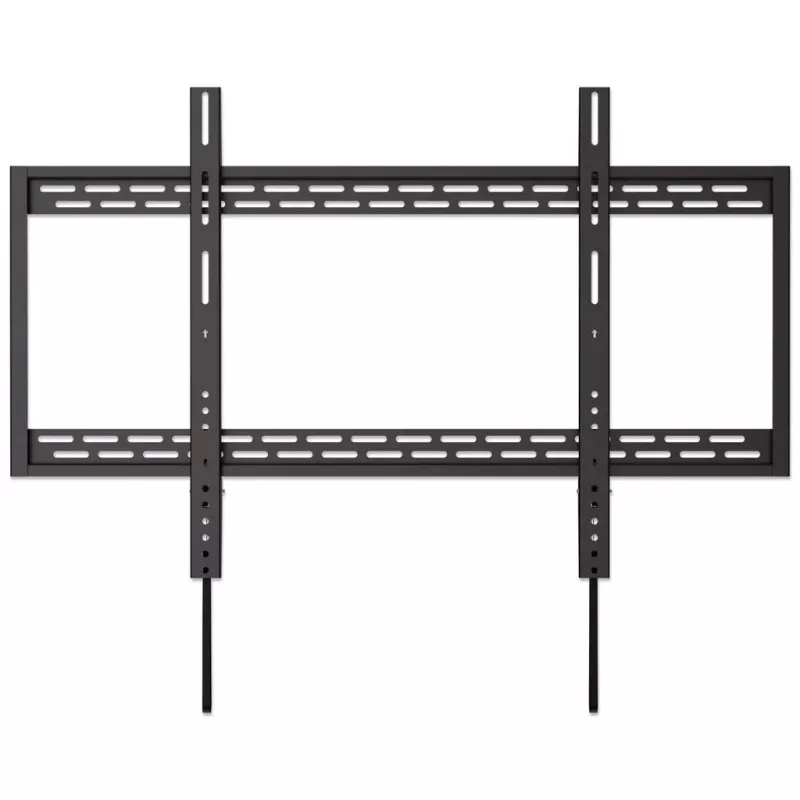

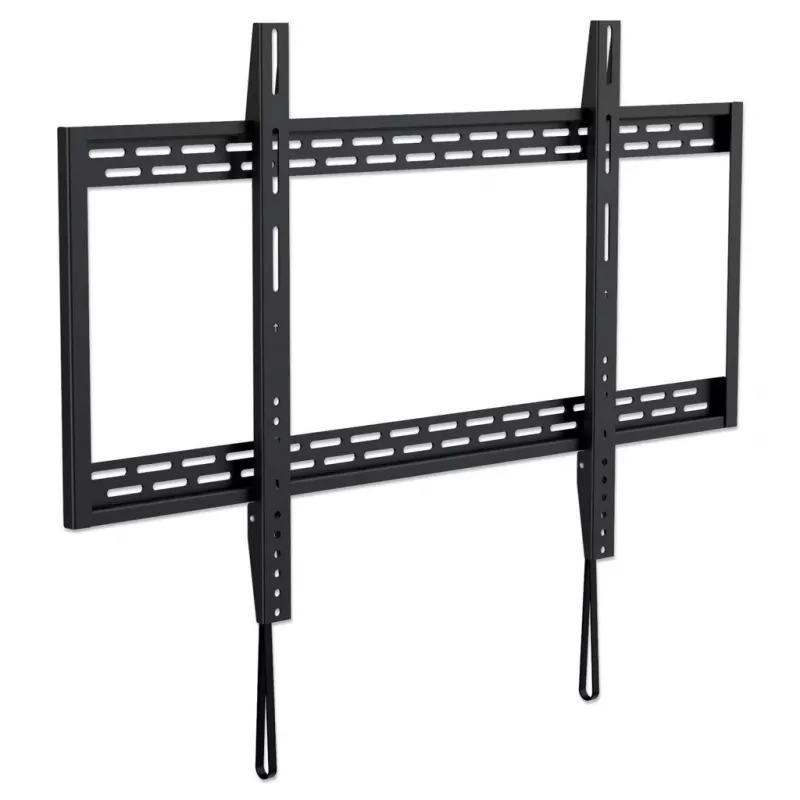

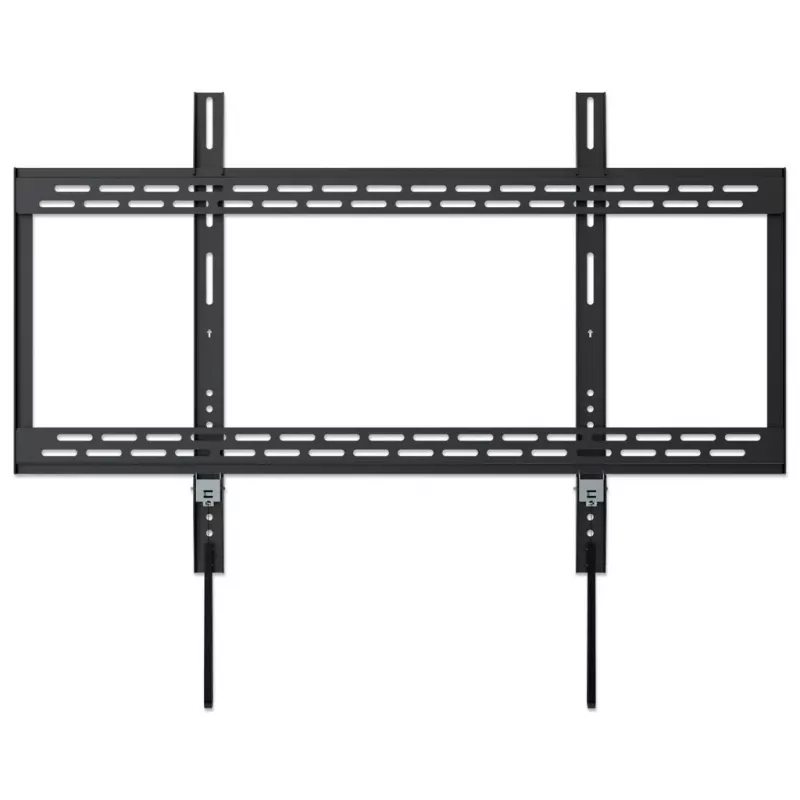

The Manhattan Wall Mount Fixed 461993 is a heavy-duty, low-profile bracket designed for fixed installations of large flat or curved LCD, LED or plasma TVs from 60" up to 100". Made of powder-coated steel, this slim mount holds displays weighing up to 100 kg and supports VESA patterns up to 900 x 600 mm, allowing a nearly flush, close-to-the-wall installation that preserves modern TV silhouettes while providing a solid, permanent mounting solution.

Advantages

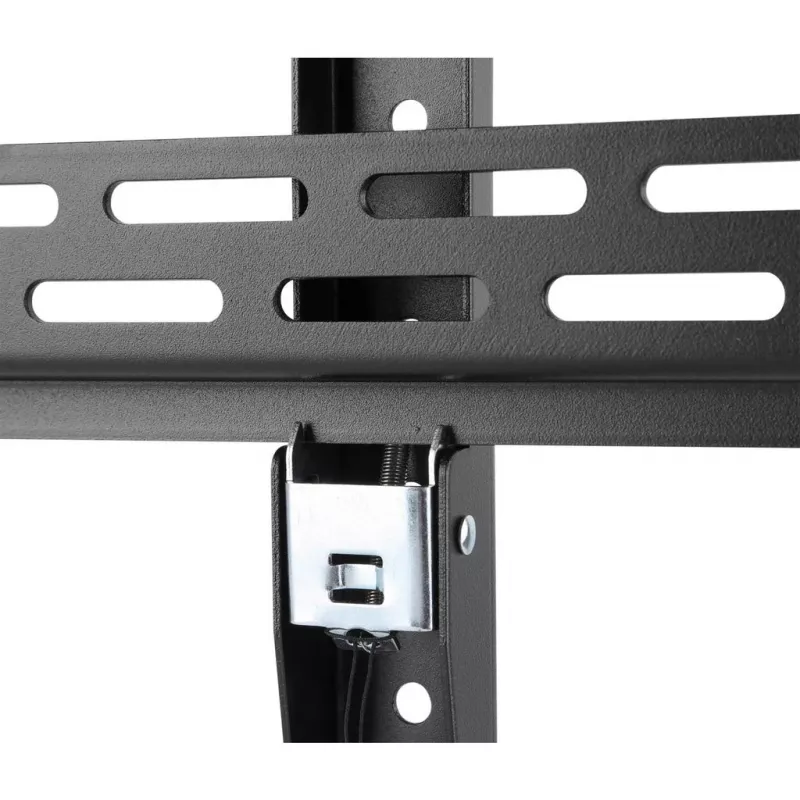

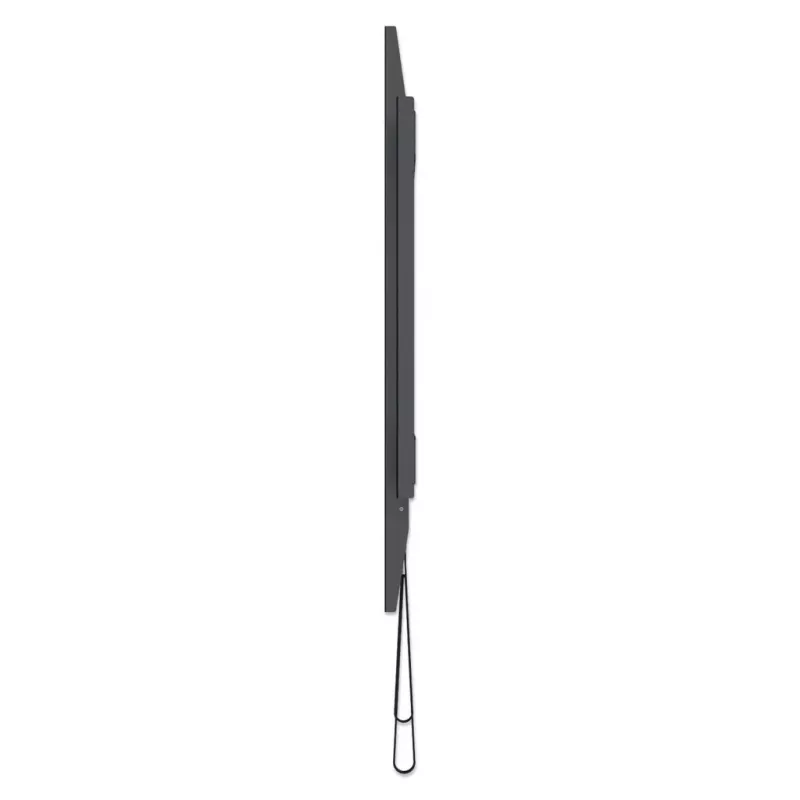

This fixed mount extends just 32 mm (1.3 in.) from the wall, providing an ultra-slim fit for thin TVs. Constructed from high-quality powder-coated steel, it offers robust load capacity (up to 100 kg) and broad VESA compatibility (200 x 200 to 900 x 600). Intuitive snap-in spring locks with release cords simplify installation and secure the TV in place. The black finish ensures a discreet appearance suitable for residential, office, classroom or commercial digital signage use.

Suitable for

• Fixed installations of 60"–100" flat or curved TVs
• Residential living rooms and home theaters
• Office meeting rooms and conference spaces
• Hospitality areas, classrooms and digital signage

Key specifications

• Model: Manhattan Wall Mount Fixed 461993
• Maximum screen size: 100"
• Maximum weight capacity: 100 kg (220 lbs)
• Supported VESA: up to 900 x 600 mm (compatible from 200 x 200)
• Mount profile (distance from wall): 32 mm (1.3 in)
• Material and finish: powder-coated steel, black
• Number of displays supported: 1
• Product weight: 5.9 kg

How to use

Determine the desired mounting height and locate wall studs or an appropriate solid mounting surface. Mark and drill holes following the VESA pattern that matches your television and the mount's wall plate. Secure the mount to the wall using suitable anchors or bolts for the wall type and the mount's load. Attach the TV adapter brackets to the display, lift the TV onto the wall plate and engage the snap-in spring locks; use the release cords to remove the display if needed. Verify that the TV is level and that all fasteners are tightened to the manufacturer-recommended torque.

Recommendations

Use appropriate wall anchors or structural backing for the mount’s 100 kg capacity and follow local building codes. For safety and optimal results, installation by a qualified professional is recommended, especially on drywall or non-solid walls.
