Soporte de pared para TV ACT totalmente móvil 23" a 55" VESA 35 kg

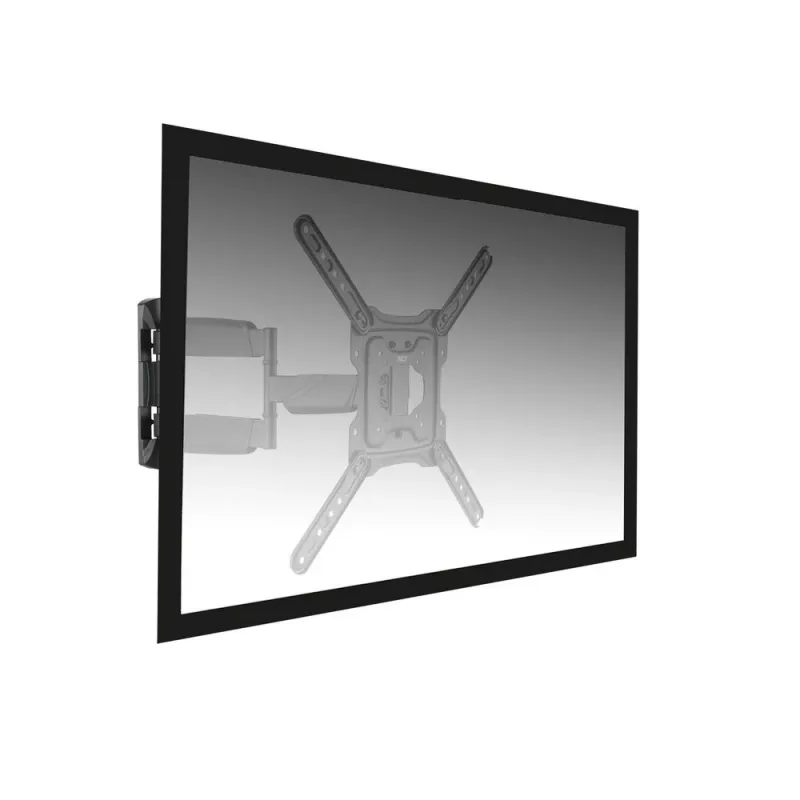

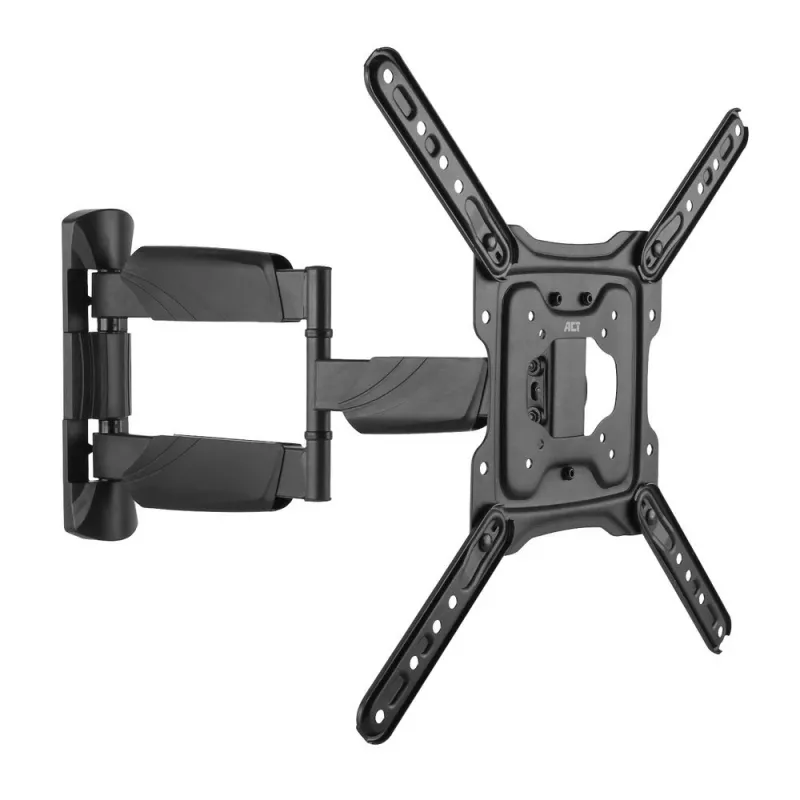

The AC8354 Full Motion TV Wall Mount is designed to mount flat-panel TVs from 23" up to 55" with a maximum weight of 35 kg. It supports VESA mounting patterns from 75x75 mm up to 400x400 mm and features cable management to keep connections out of sight. The arm construction provides up to 51 cm extension from the wall and allows precise level adjustment.

Advantages

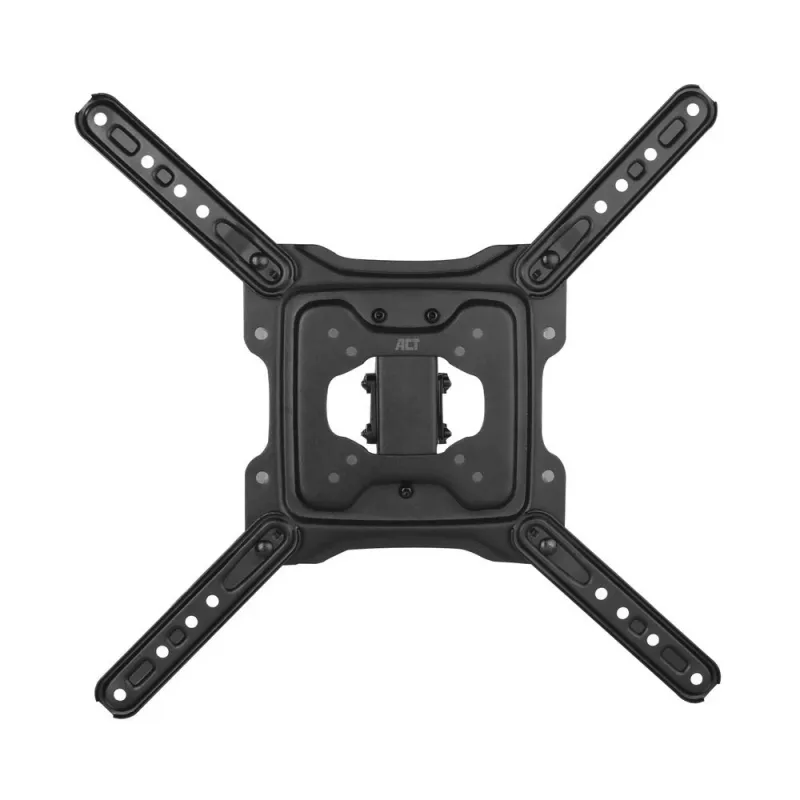

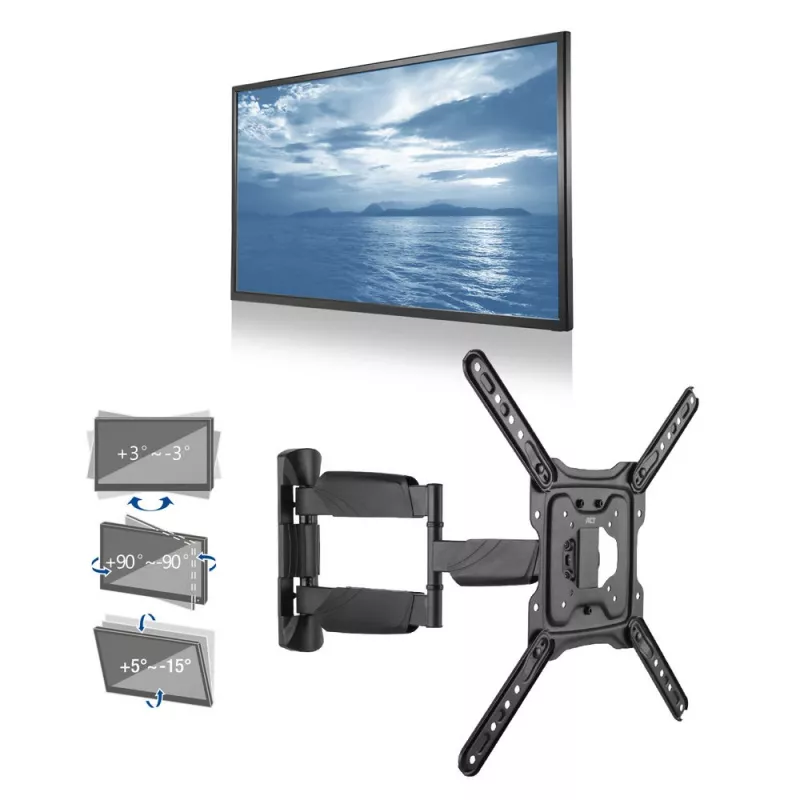

This full motion wall mount offers tilt (+5° / -12°), swivel (+15° / -15°) and a three-pivot design for flexible positioning and improved viewing angles. The mounting system separates the wall bracket and the VESA plate, enabling easier installation by attaching the wall plate first and then fixing the VESA adapter to the TV before joining both parts. The mount is finished in black and supports a single display up to 35 kg.

Suitable for

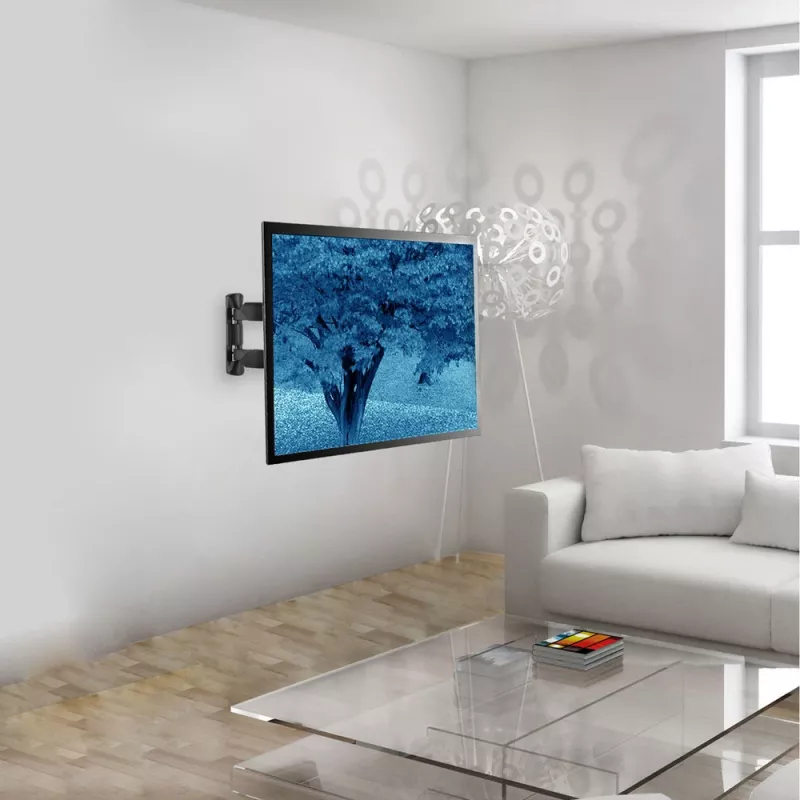

• Mounting TVs 23"–55" in living rooms, bedrooms or offices
• Displays with VESA 75x75 to 400x400 compatibility
• Setups that require extendable arms for side viewing or corner placement

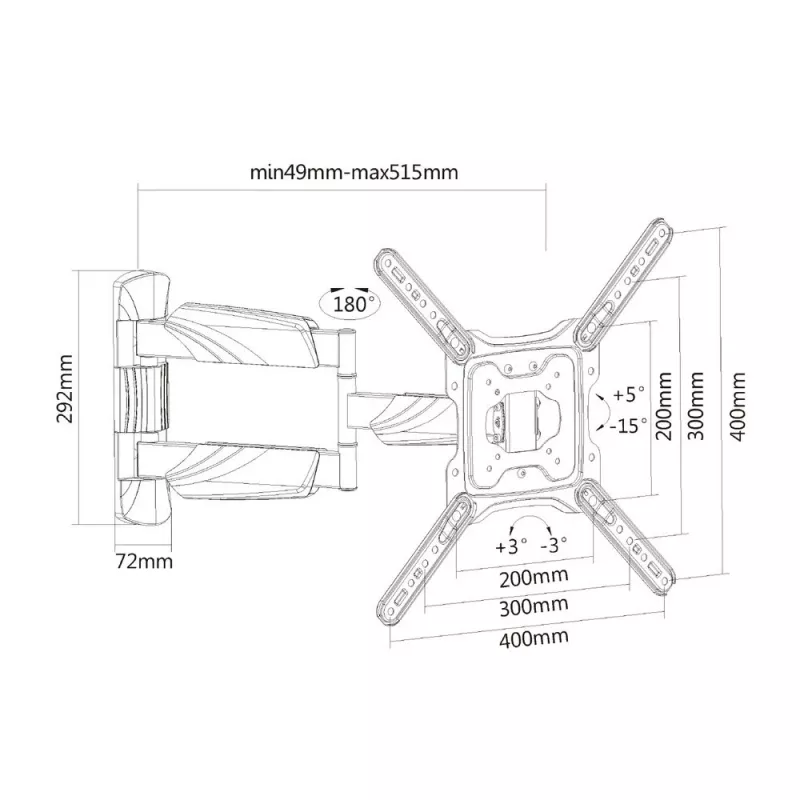

Key specifications

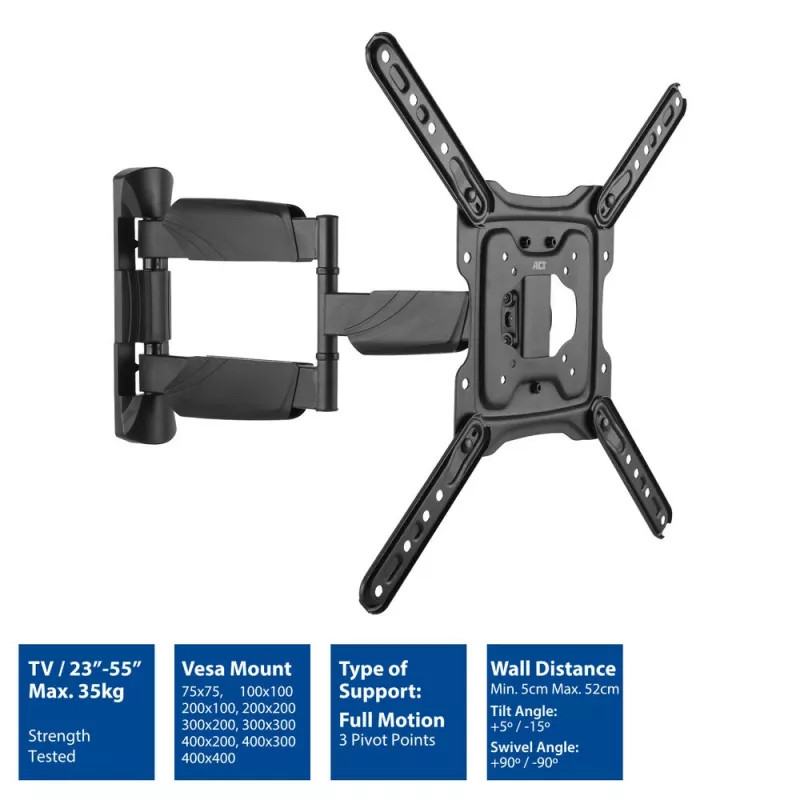

• Compatible screen size: 23"–55"
• Maximum weight capacity: 35 kg
• VESA compatibility: 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm

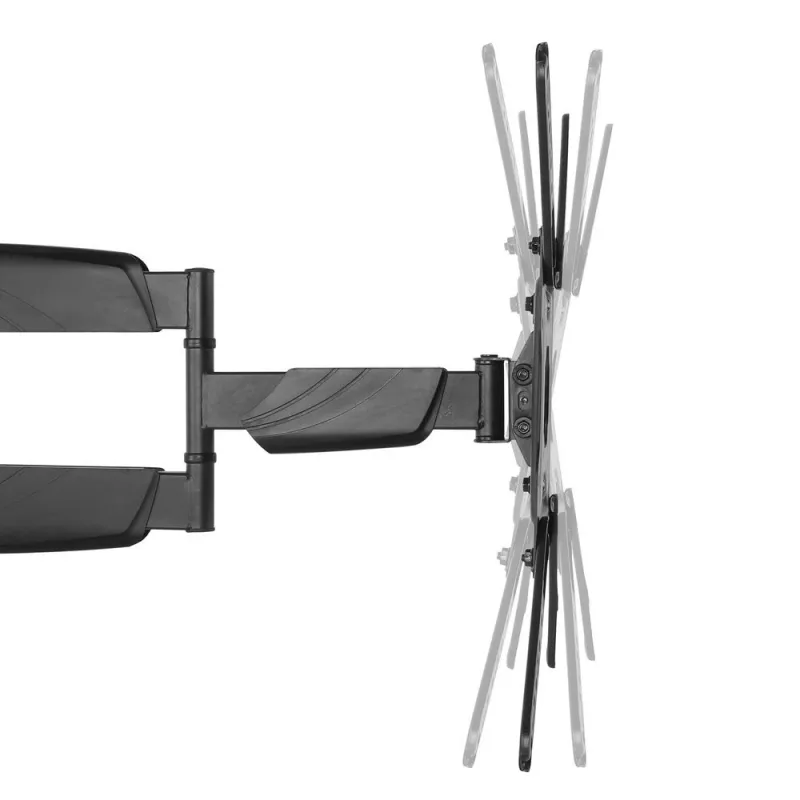

• Tilt range: +5° / -12°
• Swivel range: +15° / -15°

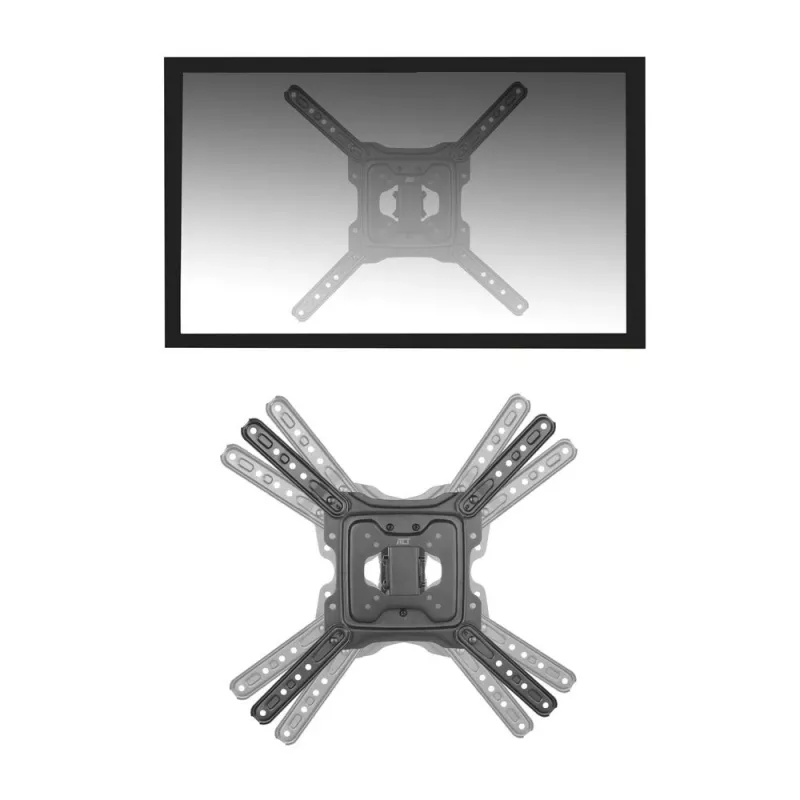

• Level adjustment: +3° / -3°
• Maximum extension from wall: 51 cm
• Colour: Black

How to use

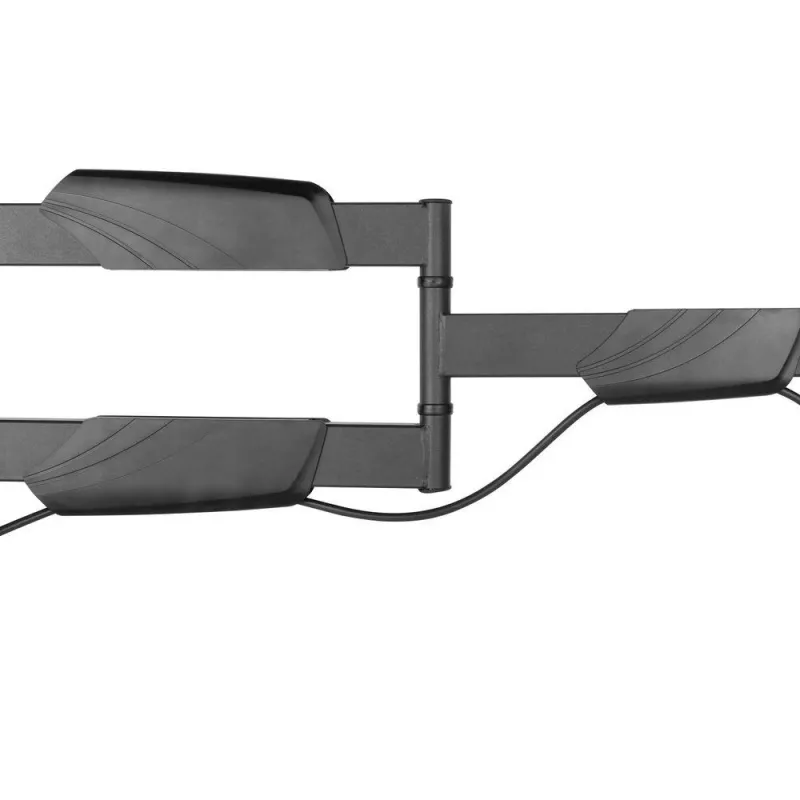

Attach the wall bracket to a suitable load-bearing wall following local mounting guidelines and using appropriate anchors for your wall type. Fix the VESA mounting plate to the back of the TV using the correct screws for your TV's VESA pattern. Lift the TV and secure the VESA plate to the wall bracket by fastening the bolts and nuts provided. Adjust tilt, swivel and level to the desired viewing position and route cables through the integrated cable management.

Recommendations

Check the TV weight and VESA pattern before installation to ensure compatibility. Use a spirit level and correctly rated wall fixings for a safe installation. Do not exceed the 35 kg weight limit and periodically verify all fasteners for tightness.
