Soporte de pared para TV Chief TS318TU 132,1 cm (52") negro

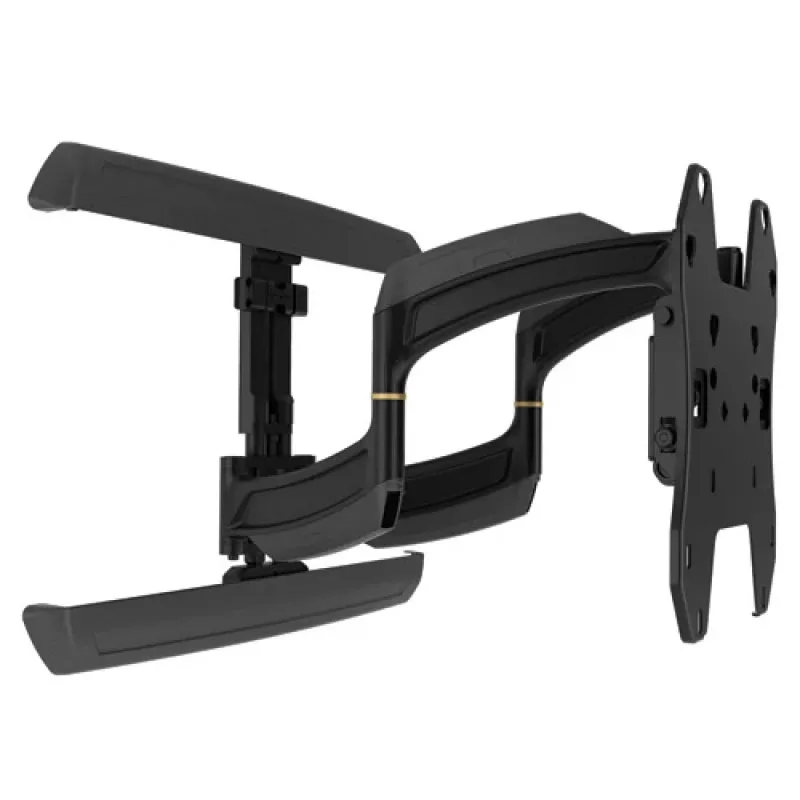

The Chief TS318TU is a low-profile full-motion TV wall mount for 26–52" (66–132.1 cm) screens. It supports up to 34 kg and fits VESA patterns from 100 x 100 mm to 600 x 400 mm. The mount offers a compact collapsed depth of 1.3” (33 mm) and extends to 18” (457 mm), providing flexible placement and viewing options for LED, LCD and plasma TVs.

Advantages

The design combines an ultra low-profile appearance with full-motion capability, including up to 15° fingertip tilt and up to ±90° swivel, allowing precise adjustment of viewing angle. Post-installation lateral shift of up to 16” (406 mm) enables easy centering after the mount is attached to the wall. Integrated, tool-free cable covers and an open wall plate simplify cable routing and connections. A final 1" (25 mm) of post-installation height adjustment ensures accurate screen alignment.

Suitable for

• Wall mounting 26–52" TVs in living rooms and bedrooms
• Installations where a low profile is desired near the wall
• Rooms requiring extended reach or swivel for varied viewing positions
• Setups that need post-installation lateral and height fine-tuning

Key specifications

• Compatible screen size: 26–52" (66–132.1 cm)
• Maximum weight capacity: 34 kg
• VESA compatibility: 100 x 100 mm to 600 x 400 mm

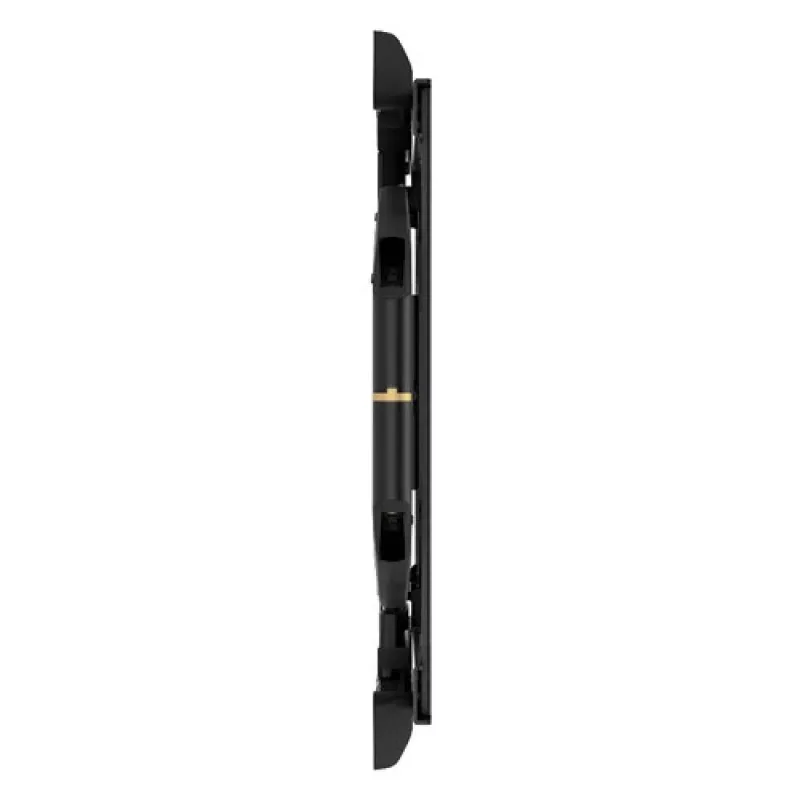

• Collapsed depth to wall: 1.3" (33 mm)
• Maximum extension: 18" (457 mm)
• Tilt range: -15° to 15° (Centris low-profile tilt)
• Swivel range: -90° to 90°
• Post-installation lateral shift: up to 16" (406 mm)
• Post-installation height adjustment: 1" (25 mm)
• Finish: Black

How to use

Mount the top rail to the wall at the desired height, then lift and slide the TV assembly onto the rail; the system is designed for single-person installation. Adjust the extension and swivel to position the screen, then use the Centris tilt to fine-tune the viewing angle. After hanging the display, perform lateral shift and the 1" height adjustment to center and align the screen precisely. Route cables through the integrated covers and connect power and signal cables before closing the cable covers for a clean installation.

Recommendations

Ensure the wall structure can support the combined weight of the mount and TV (maximum 34 kg). Use appropriate wall anchors for the wall type and verify VESA compatibility with the TV. For heavier or oversized TVs within the supported range, confirm secure attachment points and, if uncertain, seek professional installation assistance.
