Soporte de pared para TV Hagor BL Tilt 800 165,1 cm (65 pulgadas) negro

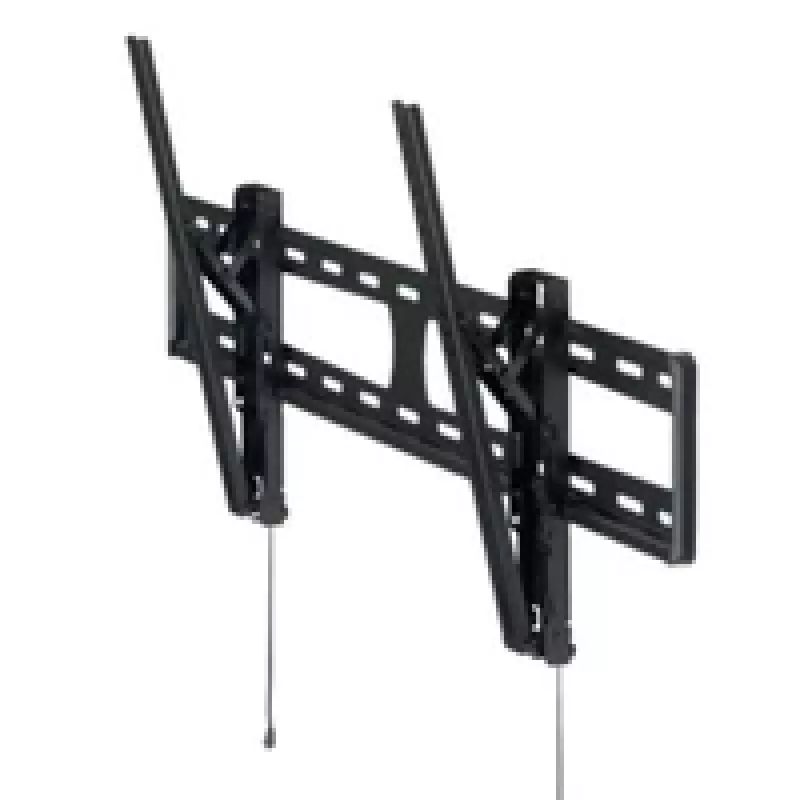

The BL Tilt 800 is a tiltable wall mount for flat screens from 46 to 65" (116–165 cm) designed for landscape installation. It supports VESA mounting patterns from 100 x 100 mm up to 800 x 600 mm and carries screens up to 60 kg. The mount sits close to the wall with a distance of approximately 35 mm and is finished in impact- and scratch-resistant black powder coating.

Advantages

The mount offers an infinitely adjustable tilt of up to 12° to set the optimum viewing angle and ensure precise alignment. A click system with an unlocking function secures the screen and enables quick assembly and removal. Integrated quick-tension cables are magnetically held behind the screen for easy cable access, and a built-in bubble level simplifies accurate horizontal installation.

Suitable for

• Wall mounting a single flat-screen TV from 46" to 65"
• Installations requiring VESA compatibility up to 800 x 600 mm
• Setups where a slim profile (≈35 mm) close to the wall is desired
• Environments needing a load capacity up to 60 kg

Key specifications

• Supported screen size: 46–65" (116–165 cm)
• Maximum load capacity: 60 kg
• Tilt range: 0 to 12° (infinitely adjustable)
• VESA compatibility: 100 x 100 mm up to 800 x 600 mm
• Distance to wall: approx. 35 mm
• Finish: black, impact- and scratch-resistant powder coating

How to use

Mount the wall plate at the desired height using suitable anchors and screws for your wall type, using the integrated bubble level to ensure horizontal alignment. Attach the VESA brackets to the screen according to the screen manufacturer’s recommendations and hang the display onto the wall plate using the click system. Use the quick-tension cables—held by a magnet—when you need to release the screen from the plate for cable access. Adjust the tilt angle as required, up to 12°, to achieve the optimal viewing position.

Recommendations

Use appropriate wall fixings for the wall material and ensure the combined weight of the screen and bracket does not exceed 60 kg. Regularly check fittings and the click mechanism for secure attachment and correct any loosening before use.
