Soporte de pared para TV Peerless PT650 190,5 cm (75") negro

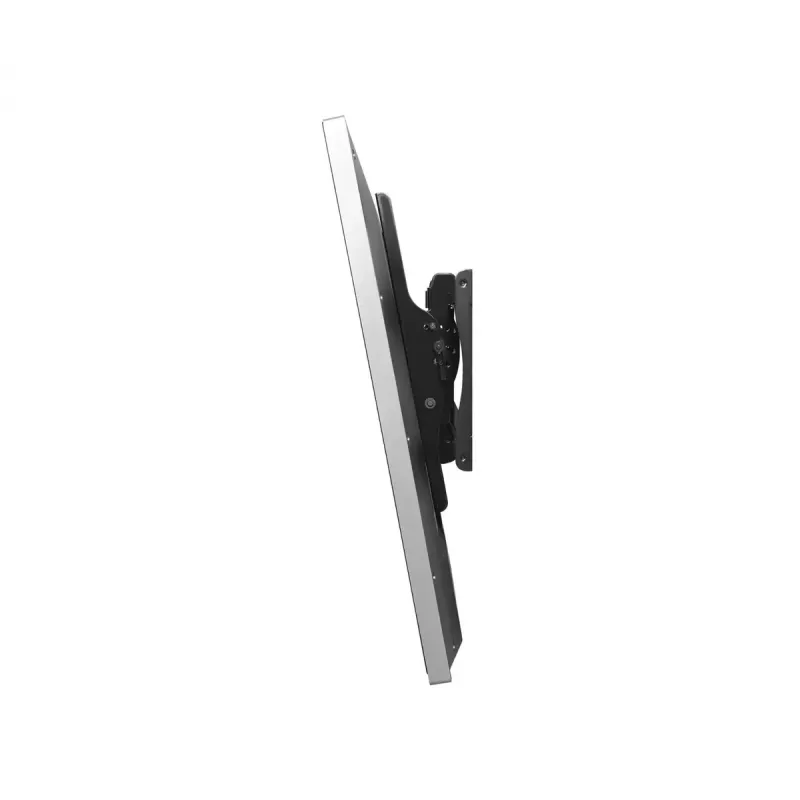

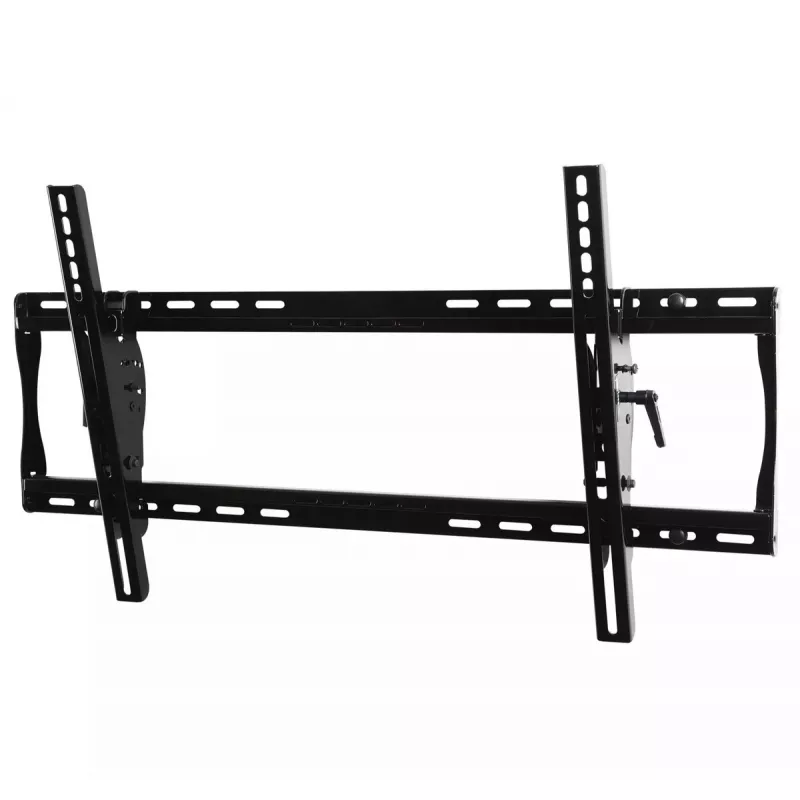

The Peerless PT650 wall mount supports flat-panel TVs from 39" to 75" (190.5 cm) and holds up to 68 kg. Designed with a low-profile PT65 system, the display sits approximately 2.63" (67 mm) from the wall. The mount is finished in black and is compatible with VESA hole patterns up to 600 x 400 mm. Its features include tool-assisted installation aids and adjustable tilt control to help reduce glare and set the optimal viewing angle.

Advantages

The PT650 includes a Hook-and-Hang™ system and Easy-Glide™ adapters to simplify one-person installation and secure attachment to the wall plate. Side-to-side adjustment after installation allows precise centering of the screen. A ratcheting handle provides stepless locking tilt from -5° to 15°, and IncreLok™ tilt technology permits locking the tilt position at installation to prevent accidental movement or tampering.

Suitable for

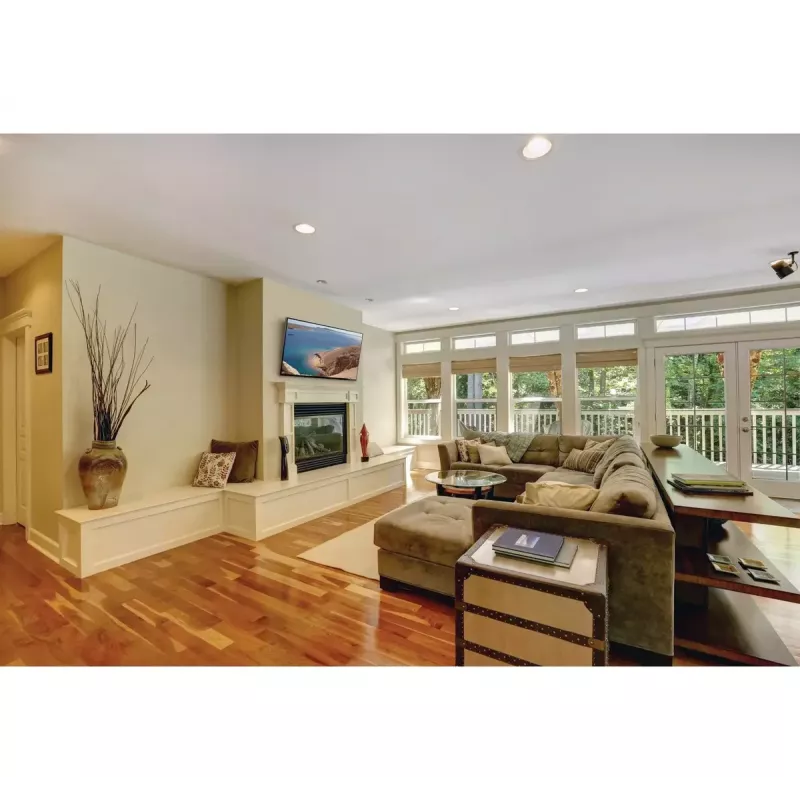

• Mounting 39"–75" TVs in living rooms and home theaters
• Installing displays in offices, conference rooms, and waiting areas
• Situations requiring a low-profile wall-mounted display
• Installations needing tilt adjustment to reduce glare

Key specifications

• Supported screen sizes: 39"–75" (190.5 cm)
• Maximum load capacity: 68 kg
• Tilt range: -5° to 15°
• VESA compatibility: up to 600 x 400 mm
• Profile distance from wall: approx. 2.63" (67 mm)
• Finish: Black
• Manufacturer model: Peerless PT650 (MPN: PT650, EAN: 0735029254881)

How to use

Attach the wall plate to a suitable stud or masonry anchor following the included mounting template and local building codes. Use the Hook-and-Hang™ system to hang the display on the wall plate, then secure using the Easy-Glide™ adapters. Adjust the display side-to-side for exact positioning. Set the desired tilt using the ratcheting handle and, if required, engage the IncreLok™ mechanism to lock the tilt angle in place.

Recommendations

For safe and durable installation, verify the wall structure and fasteners are rated for the display weight, use appropriate anchors for the wall type, and follow the supplied installation instructions. When in doubt, use professional installation services to ensure correct mounting and alignment.
