Soporte de pared/pie para TV Chief MTM1U 139,7 cm (55") negro

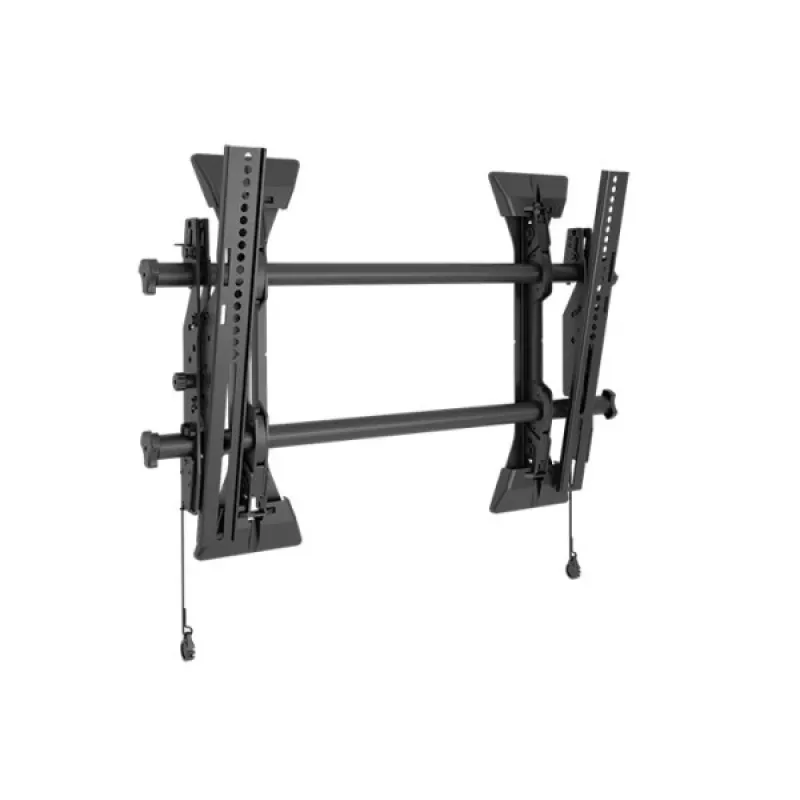

The Chief MTM1U medium Fusion micro-adjustable tilt wall display mount supports single flat-panel displays up to 47" (119.4 cm) with a maximum load of 57 kg. Finished in black, this low-profile mount integrates installer-inspired features — including Centerless Shift, Centris tilt, ControlZone leveling and ClickConnect latching — to provide flexible post-installation adjustments, improved stability and simplified cable access.

Advantages

The MTM1U offers enhanced stability and security through set screws and integrated security features, while Centerless Shift enables up to 17.5" (445 mm) of lateral post-installation movement for precise centering. Centris low-profile tilt balances the screen around its center of gravity to maintain a slim profile. ClickConnect provides an audible click when the display engages, and the mount ships with a custom hardware kit and installer-friendly features such as quick-store cords, nesting spacers and improved cable management for faster, cleaner installs.

Suitable for

• Mounting a single TV or display up to 47" and 57 kg
• Installations requiring post-installation lateral adjustment and precise centering
• Locations needing a low-profile tilt solution with secure, long-term mounting
• Environments where tidy cable routing and easy access under the screen are important

Key specifications

• Brand: Chief
• Model: MTM1U
• Maximum screen size: 47" (119.4 cm)
• Maximum weight capacity: 57 kg
• Number of displays supported: 1
• Maximum VESA: 600 x 400
• Colour: Black
• Centerless Shift: up to 17.5" (445 mm) total lateral shift (8.75"/222 mm left or right)

How to use

Attach the wall plate to the wall using the appropriate anchors or bolts for your substrate and pre-install the bolts as allowed by the teardrop design. Mount the uprights to the display using compatible VESA holes (up to 600 x 400), then engage the display with the mount until ClickConnect audibly confirms engagement. Use Centris tilt and ControlZone leveling adjustments to set the desired tilt and to level the screen. Use the Centerless Shift feature for post-installation lateral centering. Secure set screws once positioning is final and route cables via the built-in cable stand and end-cap guides.

Recommendations

Verify wall structure and use anchors or fasteners rated for the combined weight of the mount and display. Follow local mounting codes and the included Chief installation manual. After final positioning, tighten all set screws and confirm ClickConnect engagement; periodically inspect mounting hardware and cable routing for continued security.
