Soporte de pared Schwaiger LWH030 011 94 cm negro

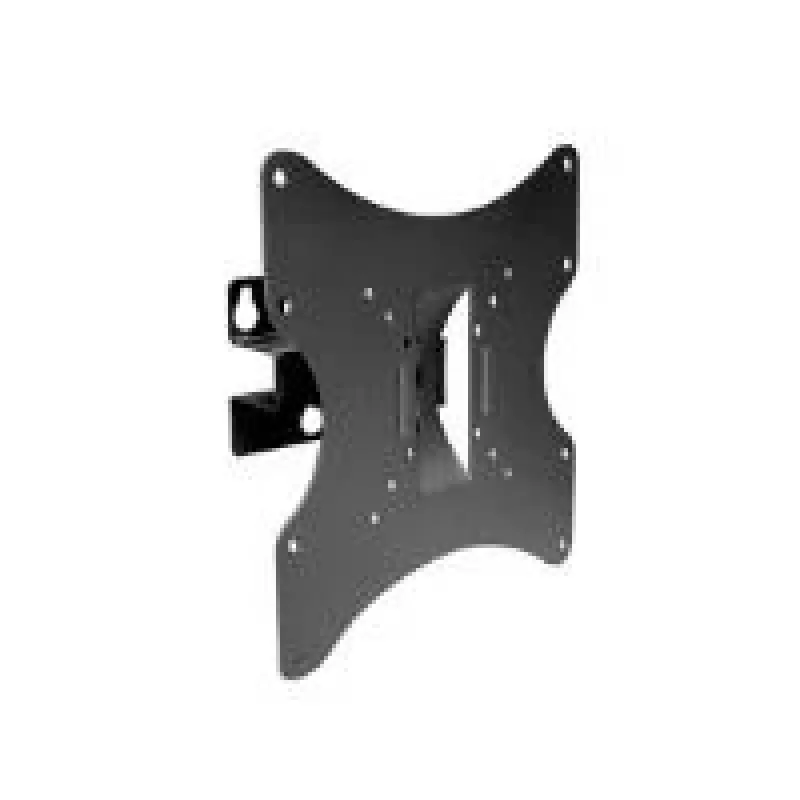

The Schwaiger LWH030 011 wall mount bracket is a compact, low-profile mounting solution for flat screens from 43.2 cm (17") up to 94 cm (37"). Designed to carry a single display up to 30 kg, the bracket supports common VESA patterns from 75 x 75 mm to 200 x 200 mm. Finished in black and positioned just 5 cm from the wall, it provides a space-saving installation while allowing adjustments to tilt and swivel for improved viewing alignment.

Advantages

The bracket combines a slim wall clearance with adjustable tilt and swivel functionality: a tilt range of -20° to 20° for vertical angle correction and a swivel capability up to 90° to adapt horizontal viewing direction. Its compatibility with VESA standards from 75 x 75 mm to 200 x 200 mm and the 30 kg load capacity suits a wide range of compact TVs and monitors. The black finish offers neutral aesthetics that integrates with most interiors while the one-piece design keeps installation tidy.

Suitable for

• Mounting a single small-to-medium flat screen TV or monitor (up to 37") in living rooms, bedrooms or offices
• Space-saving wall installations where low profile (5 cm) is required
• Applications needing moderate screen angle adjustment for glare reduction or shared viewing

Key specifications

• Supported screen sizes: 43.2 cm (17") to 94 cm (37")
• Maximum weight capacity: 30 kg
• VESA compatibility: 75 x 75 mm up to 200 x 200 mm
• Tilt range: -20° to 20°
• Swivel range: 0° to 90°
• Distance from wall: 5 cm
• Color: black
• Supports one display

How to use

Locate a suitable mounting point on a solid wall and mark the fixing holes according to the bracket template provided. Secure the wall plate using appropriate anchors or screws for the wall type, then attach the display adapter arms to the TV or monitor using the matching VESA holes. Hang the display on the mounted bracket and fasten the safety screws. Adjust tilt and swivel to the desired viewing angle, then verify that all fixings are tightened and the display is stable.

Recommendations

Use appropriate wall anchors matched to your wall material and do not exceed the 30 kg weight limit. When positioning the bracket, consider cable access and viewing height. For safety, have a second person assist when lifting and securing the display onto the mount.
