Soporte de pared/techo para pantallas de señalización B-TECH BTV513 para 55 inch (139,7 cm), máx. 35 kg, VESA 426×400, inclinación -2–10°, giro 180° – Negro

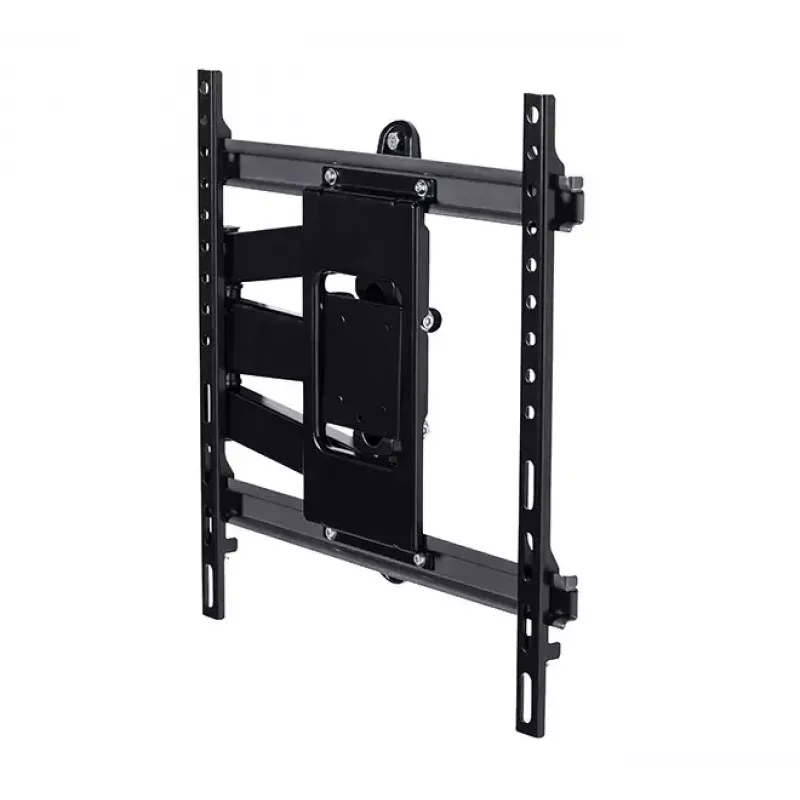

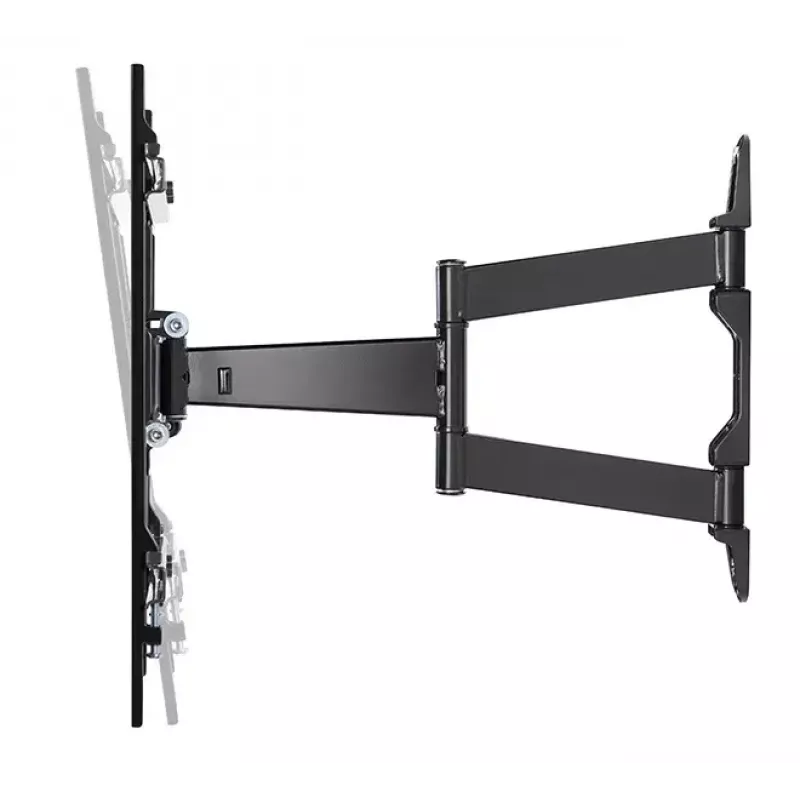

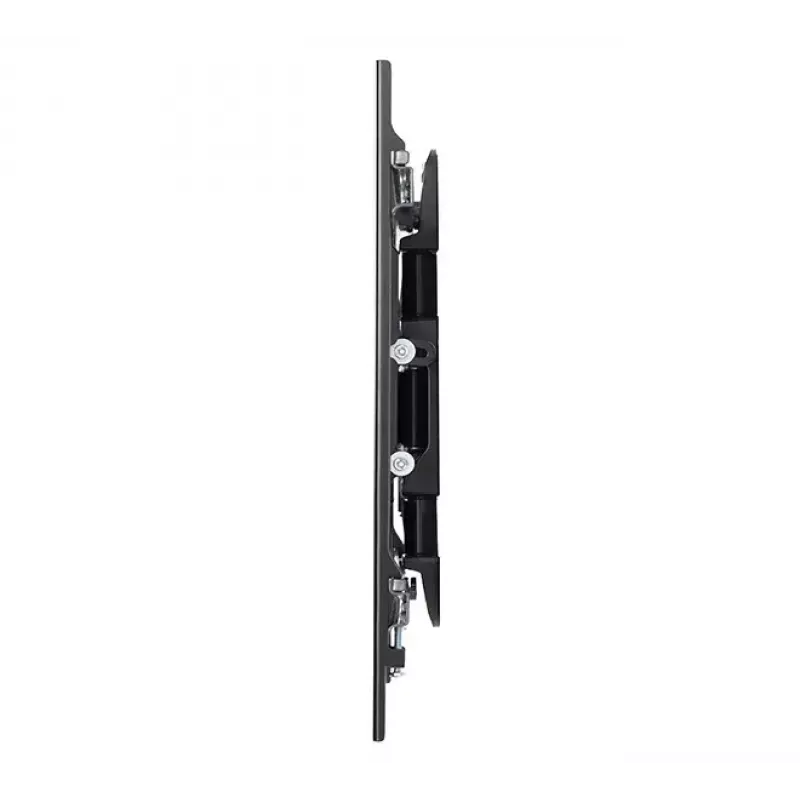

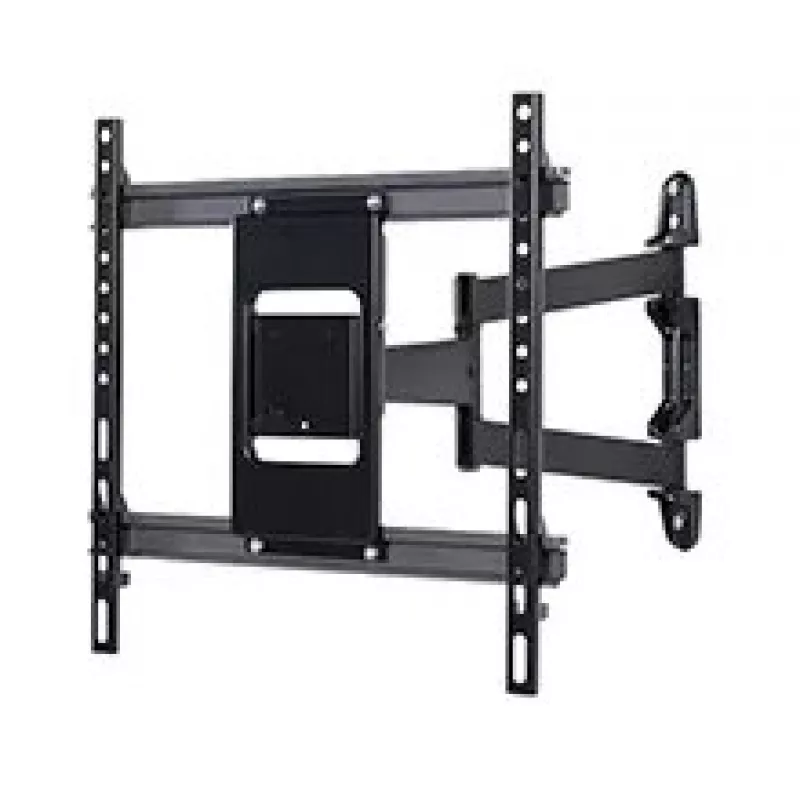

B-TECH BTV513 is a wall or ceiling signage display mount engineered for screens up to 55" (139.7 cm) with a maximum load of 35 kg. The mount supports VESA patterns up to 426×400 mm and features a slim double-arm design with three swivel points and a tilting interface. Its -2° to 10° tilt range and 180° swivel capability enable flexible angle adjustment for digital signage and commercial displays in retail, public and corporate environments.

Advantages

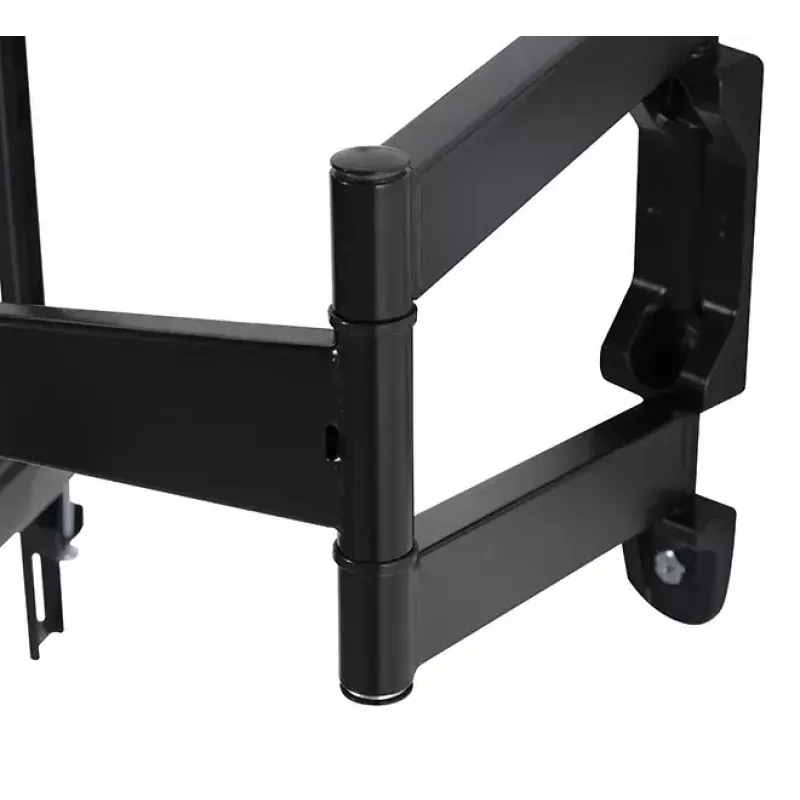

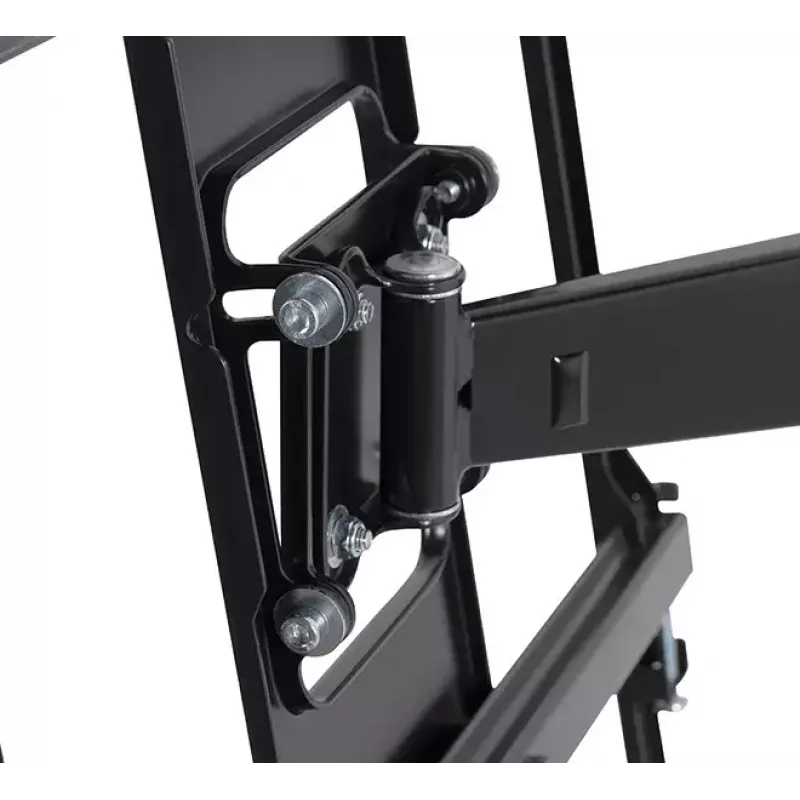

The double-arm mechanism provides a compact profile when folded and extended reach when required, while three swivel points allow easy repositioning and accurate screen alignment. The mount accommodates common VESA patterns up to 426×400 mm and supports screens up to 35 kg, offering a reliable solution for medium to large displays. Integrated cable management clips keep cables routed along the arm for a tidy installation. The black finish suits a variety of interiors and reduces visual distraction around the screen.

Suitable for

• Digital signage and advertising displays in retail and hospitality
• Information screens and wayfinding in public spaces and transport hubs
• Conference room or meeting area displays mounted on walls or ceilings
• Commercial installations in corporate or educational environments

Key specifications

• Maximum screen size: 55" (139.7 cm)
• Maximum weight capacity: 35 kg
• VESA compatibility: up to 426 × 400 mm
• Tilt range: -2° to 10°
• Swivel range: up to 180° with three swivel points
• Design: ultra-slim double-arm mount
• Finish: black
• Cable management: integrated clip for routing cables along the arm

How to use

Secure the mounting plate to a suitable wall or ceiling surface using appropriate anchors and fixings for the construction material, ensuring the chosen location supports the combined weight of mount and display. Attach the display to the VESA interface on the mount and verify the VESA holes align within the 426×400 mm range. Use the tilt and swivel adjustment points to set the desired viewing angle; the mount folds flat to the wall for reduced protrusion or extends outward using the double-arm mechanism. Route power and signal cables along the arm and clip them into the cable management clip for a neat appearance.

Recommendations

For safe installation, confirm wall or ceiling structure can bear the load and use suitable mounting hardware. When mounting in public or high-traffic areas, set angles to minimize glare and ensure screens are positioned at an optimal height for the intended audience. Periodically check fixings and cable routing to maintain stability and appearance.
