Soporte de techo Multibrackets M Universal Projector 200 con ajuste fino

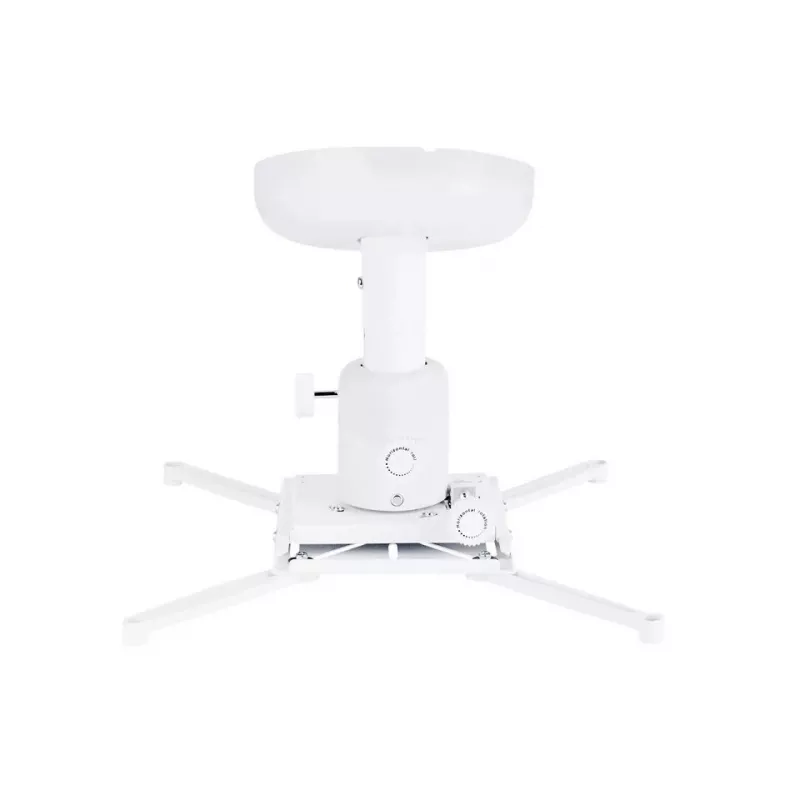

The Multibrackets M Universal Projector Ceiling Mount 200 with Fine tune is a ceiling mounting solution for projectors up to 15 kg. Finished in white and weighing 2.08 kg, the mount provides a low-profile connection to the projector with integrated cable management and articulated, telescopic arms that fit most projector models. Fine tune technology enables fingertip adjustments after installation to achieve correct alignment without repositioning the entire mount.

Advantages

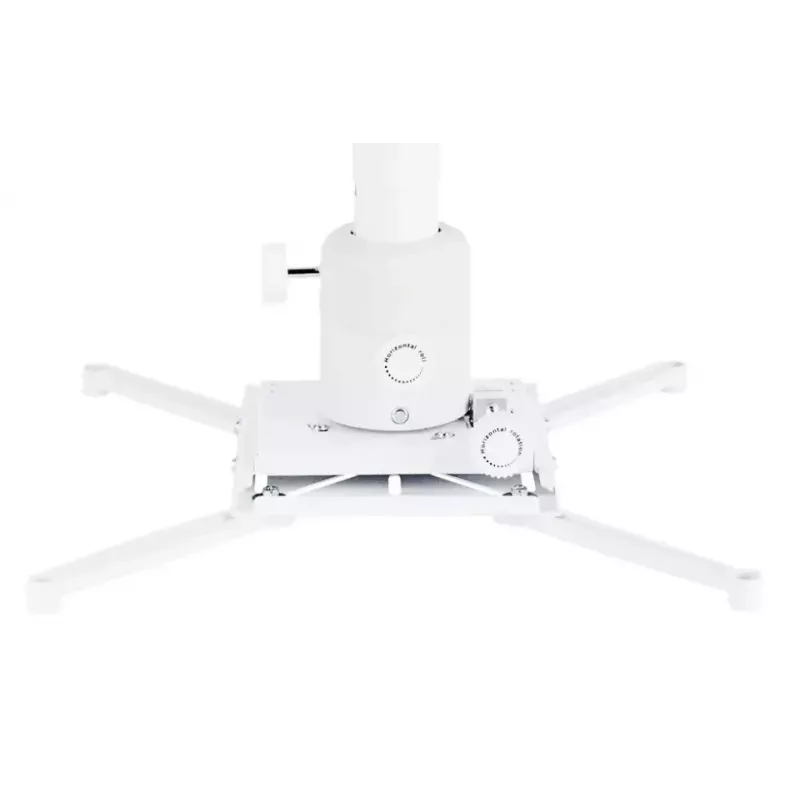

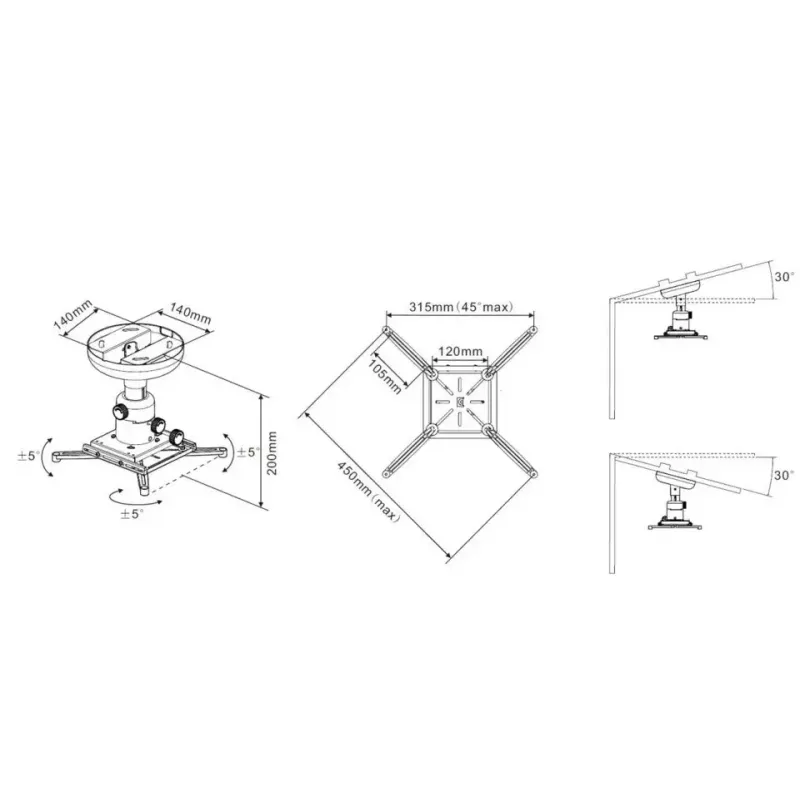

The fine tune mechanism allows precise 3-axis alignment from the mounted position, reducing installation time and making future projector or screen position changes easy. The low surface contact to the projector helps avoid trapping heat near the lamp, supporting lamp lifetime. Integrated cable management and an available anti-theft security feature add practicality and protection for installed equipment.

Suitable for

• Home theaters
• Classrooms and lecture halls
• Conference rooms and meeting spaces
• Small event spaces and presentation areas

Key specifications

• Maximum load: up to 15 kg
• Weight: 2.08 kg
• Mounting type: ceiling mount
• Product colour: white
• Integrated cable management and fine tune 3-axis adjustment
• Articulated, telescopic projector arms
• MPN / EAN: 7350073730728

How to use

Fix the ceiling plate to a suitable structural surface using appropriate fasteners for the ceiling material and load. Attach the articulated arms to the projector using the supplied mounting screws and adjust the telescopic arms to match the projector’s mounting points. Hang the projector assembly on the ceiling mount, secure it according to the instructions, then use the fine tune controls to adjust tilt, roll and pan until the projected image is aligned with the screen. Route projector cables through the integrated cable-management channel.

Recommendations

Use appropriate ceiling fixings rated for the combined weight of the mount and projector. Perform fine tune adjustments with the projector powered and projecting a test image to ensure accurate alignment. For public or unattended installations, enable the anti-theft feature and verify cable routing to avoid strain on connectors.
