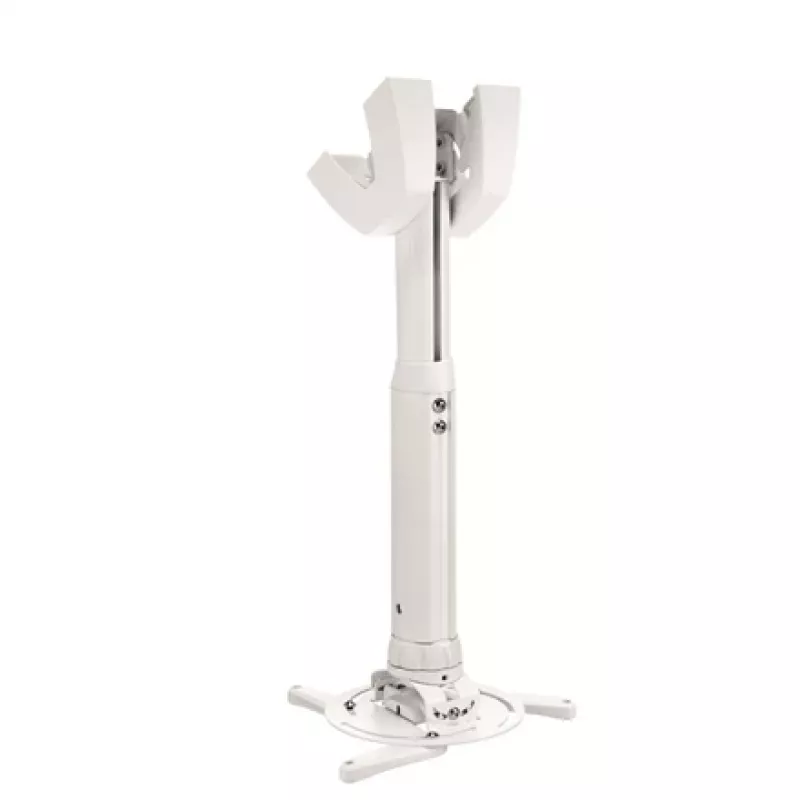

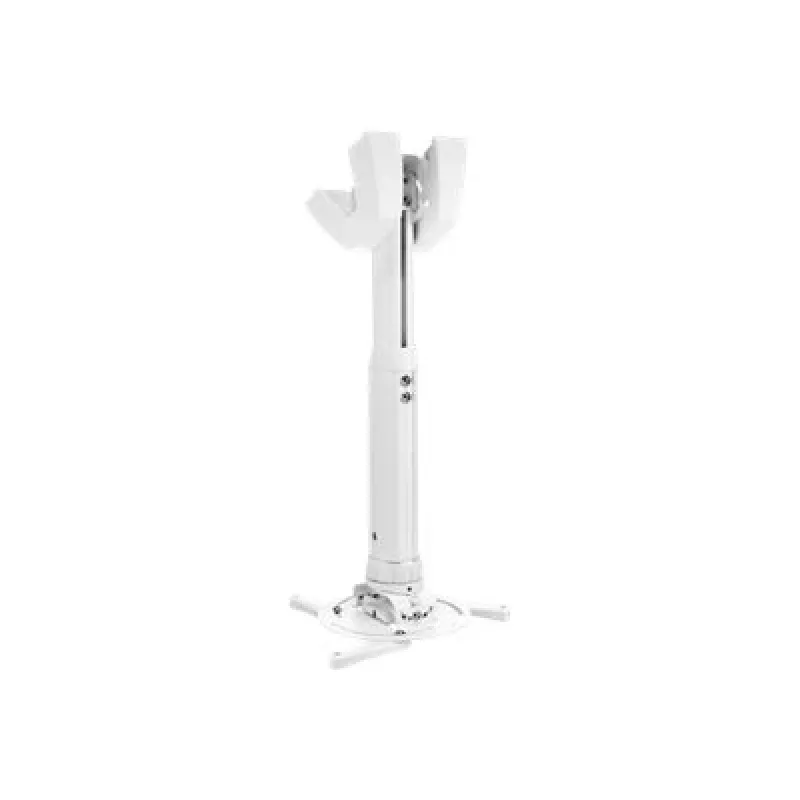

Soporte de techo para proyectores Vogel's PPC1540W

The Vogel's PPC1540W is a white ceiling mount for projectors with a maximum load capacity of 15 kg. It features adjustable height and tilt to help position the projector for correct alignment and screening. The mount is supplied as a single unit with all main components preassembled for straightforward installation in residential or professional environments.

Advantages

The PPC1540W offers a compact design in white finish that integrates with most interiors. It supports a wide turn angle and a useful tilt range, while the height adjustment range between 400 and 550 mm allows fine positioning. The mount's construction provides solid support for projectors up to 15 kg and simplifies cable routing for a cleaner installation.

Suitable for

• Home theater projectors
• Classroom and lecture-room installations
• Small to medium meeting rooms and offices
• Installation where a low-profile white ceiling mount is preferred

Key specifications

• Model: Vogel's PPC1540W
• Colour: White
• Maximum load capacity: 15 kg

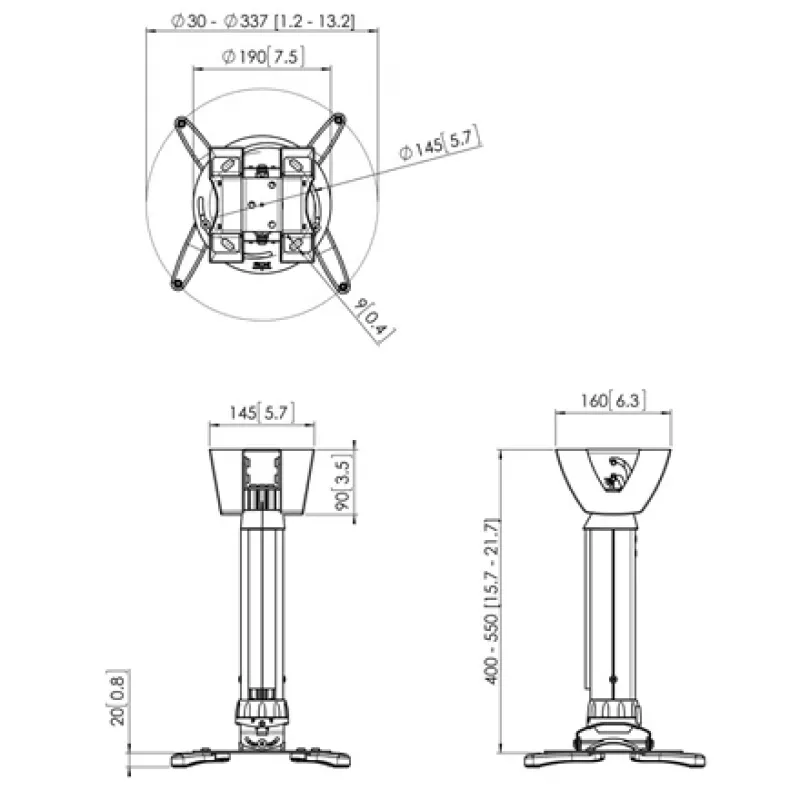

• Height adjustment range: 400–550 mm
• Tilt angle: 15°
• Turn angle: 360°
• Net weight: 3.00 kg
• Gross weight (packaged): 3.30 kg
• Warranty: 24 months

How to use

Mount the Vogel's PPC1540W to a suitably strong ceiling structure using appropriate fixings (not included) following local building codes. Attach the projector to the mount according to the projector manufacturer's instructions, then adjust the height within the 400–550 mm range and set the tilt up to 15° and rotate as needed to achieve correct image alignment. Secure all fasteners and verify stability before use.

Recommendations

Ensure the ceiling and fixings used can bear the projector weight plus the mount; for heavier projectors close to the 15 kg limit consult a professional installer. Regularly check fasteners and alignment to maintain secure mounting and optimal image geometry.
