Soporte de techo Vogel's PPC 2555

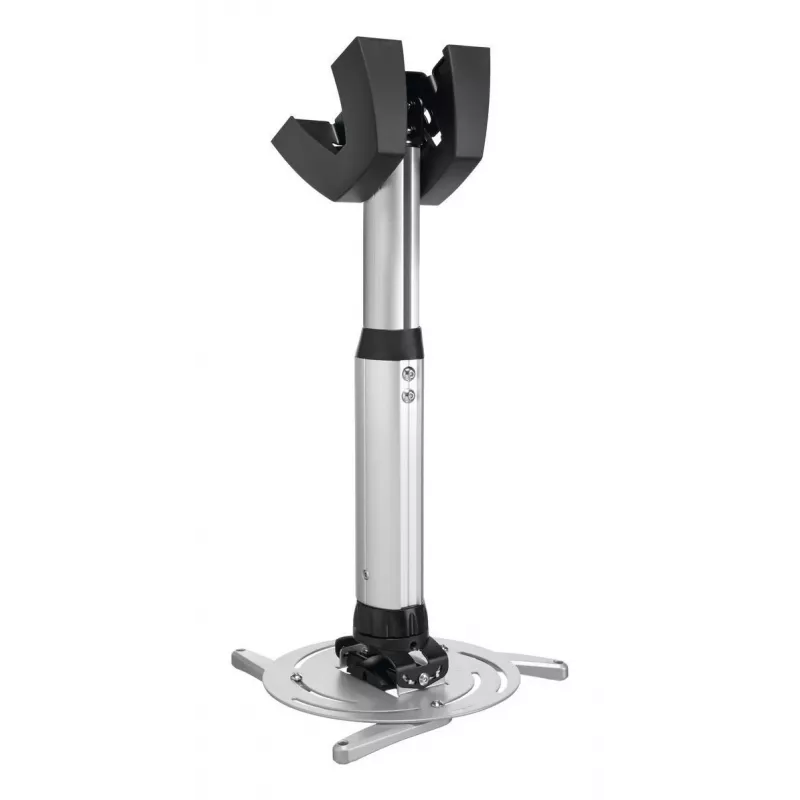

The Vogel's PPC 2555 is a height-adjustable ceiling mount for projectors weighing up to 30 kg. It is designed for the latest generation of projectors and provides fine tune adjustability for precise alignment with the projection surface. The mount includes a cover for false ceilings and a silver finish that suits both residential and professional interiors.

Advantages

The PPC 2555 offers a solid and stable connection thanks to a unique friction ring that removes play from the interface joints. Its adjustable height and compatibility with inclined and flat ceilings make it flexible for a variety of installation conditions. The integrated CIS® Cable Inlay System runs the full length of the pole to hide and route cables even after installation.

Suitable for

• Home theaters
• Classrooms and lecture halls
• Conference rooms and meeting spaces
• Installations where adjustable mounting height is required

Key specifications

• Maximum load capacity: 30 kg
• Height adjustment range: 400–1350 mm (three pole lengths)
• Ceiling compatibility: flat and inclined ceilings
• Cable system: CIS® Cable Inlay System for concealed routing
• Includes cover for false ceilings
• Finish: silver
• Brand: Vogel's, MPN: PPC 2555, EAN: 8712285325267

How to use

Mount the ceiling plate to a suitable ceiling structure (flat or inclined) and select the pole length that provides the required height within the 400–1350 mm range. Attach the projector to the adjustable interface and use the fine tune adjustability to align the projected image with the screen. Turn the friction ring to remove play from the interface connections so the projector holds its position. Route all cables through the CIS® Cable Inlay System and attach the cover for a finished appearance.

Recommendations

Check the projector’s weight and ensure it does not exceed 30 kg. Verify the ceiling’s load-bearing capacity before installation. Use the fine tune adjustments for precise alignment and secure the friction ring to prevent movement. If cable changes are required after installation, use the CIS® system to re-route cables without dismantling the mount.
