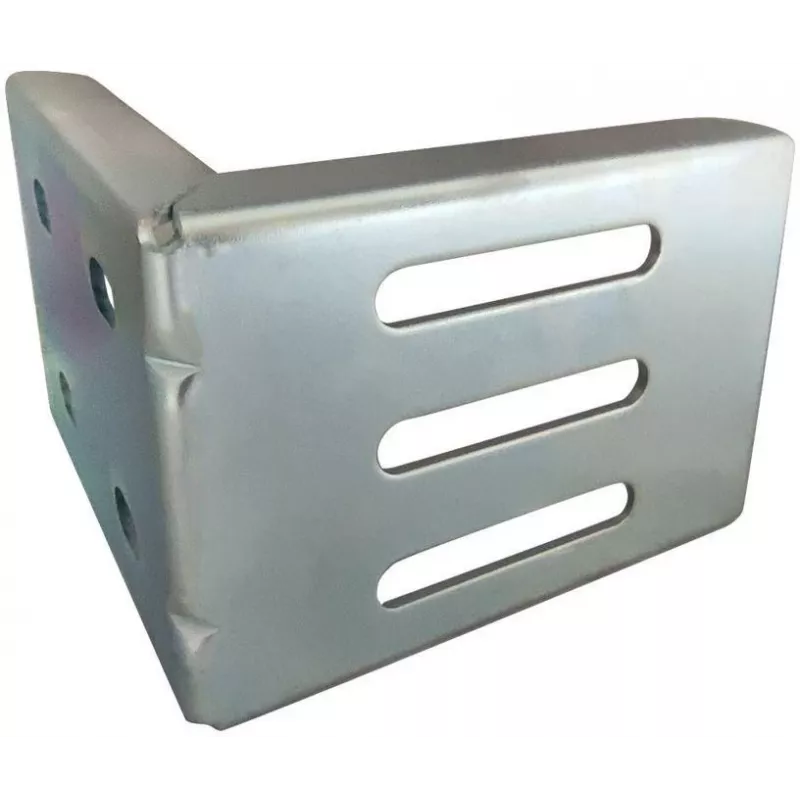

Soporte de tope de rodadura PSG 60.013.01 para Steelpress serie B

The PSG 60.013.01 is a robust support bracket designed for mounting Steelpress B-series overrun devices on trailers and caravans. Manufactured from hot-dip galvanized steel, it offers exceptional corrosion resistance and durability for long-lasting performance in demanding environments.

Advantages

This bracket ensures secure and stable attachment of the overrun device to the trailer frame. The hot-dip galvanized finish provides superior protection against rust and corrosion, extending the service life of the component. Its bolt-on design simplifies installation and allows for easy replacement if needed.

Suitable for

• Trailers and caravans equipped with Steelpress B-series overrun devices (models B-1000, B-1600, B-2000, B-2500, B-3000)
• Under-frame mounting applications
• Trailer braking systems requiring a reliable support bracket

Key specifications

• Product Type: Overrun Device Support Bracket
• Material: Steel
• Finish: Hot-dip Galvanized
• Compatibility: Steelpress B-series Overrun Devices (B-1000, B-1600, B-2000, B-2500, B-3000)
• Mounting Type (to frame): Bolt-on
• Mounting Type (for overrun device): Bolt-on
• Mounting Hole Spacing (Frame): Approx. 160 mm (center-to-center)
• Mounting Hole Spacing (Overrun Device): Approx. 120 mm (center-to-center)
• Material Thickness: Approx. 5-6 mm
• Number of Frame Mounting Holes: 2
• Number of Overrun Device Mounting Holes: 2
• Installation Position: Under-frame
• Color: Metallic Grey/Silver
• Corrosion Resistance: High

Recommendations

Ensure compatibility with your specific overrun device model before installation. Use appropriate bolts and torque specifications as per the manufacturer's guidelines. Regular inspection is recommended to maintain optimal performance.
