Soporte Hikvision DS-1272ZJ-120

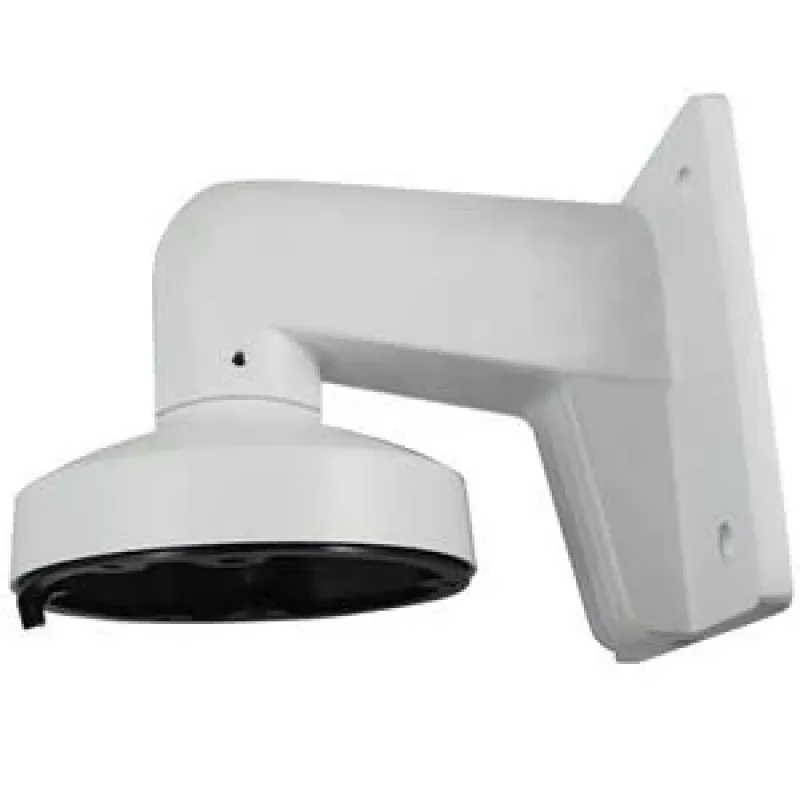

The Hikvision DS-1272ZJ-120 is a durable outdoor mount designed for security cameras. It has a compact white housing with dimensions 120 mm (width) × 173.5 mm (depth) × 122 mm (height) and a maximum load capacity of 4.5 kg. The mount is intended for fixed installation on flat walls and includes considerations for outdoor use, such as the requirement for waterproof rubber and a suitable load-bearing wall.

Advantages

The mount offers a compact footprint and a neutral white finish for discreet outdoor integration. Its specified maximum load of 4.5 kg accommodates a wide range of dome and bullet cameras. The design supports secure wall mounting when installed on a properly prepared flat surface and used with waterproof sealing for outdoor exposure.

Suitable for

• Outdoor CCTV camera installations on flat walls
• Mounting dome or bullet security cameras up to 4.5 kg
• Locations requiring a compact, white exterior mount

Key specifications

• Model: Hikvision DS-1272ZJ-120
• Maximum load capacity: 4.5 kg

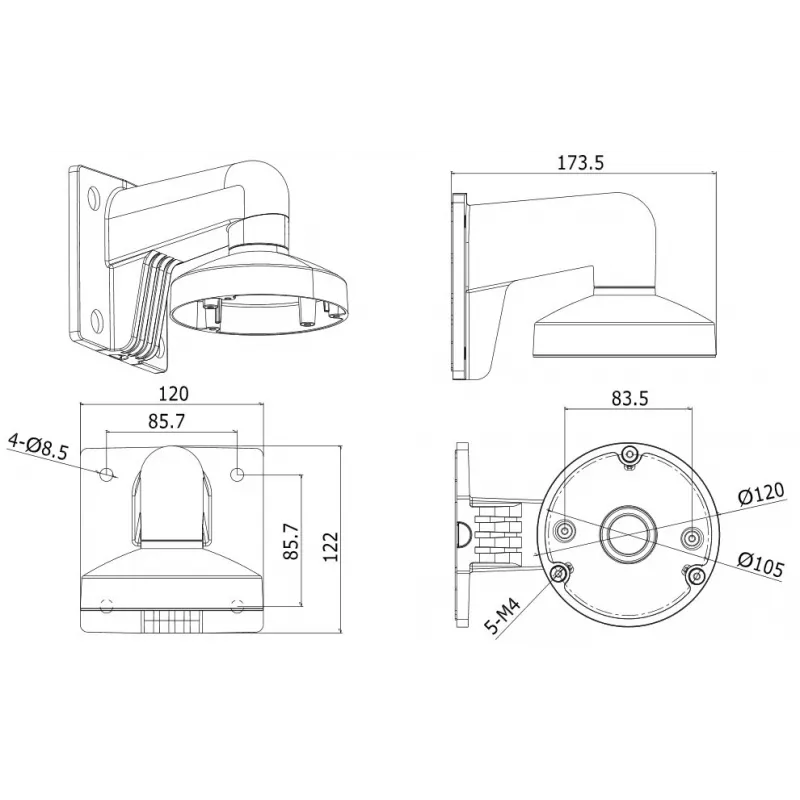

• Dimensions (W×D×H): 120 × 173.5 × 122 mm
• Finish: White
• Installation surface: Flat wall (must support >3× total weight of camera and mount)
• Outdoor use: Requires waterproof rubber sealing
• Brand / MPN / EAN: Hikvision / 302700325 / 6954273608293

How to use

Prepare a flat, load-bearing wall capable of supporting at least three times the combined weight of the camera and mount. Position the DS-1272ZJ-120 on the wall, mark drill points, and secure the bracket using appropriate anchors and fasteners for the wall material. Apply waterproof rubber or sealing at cable entry points and around mounting interfaces when the installation is outdoors. Attach the camera to the mount and verify secure mechanical connection and correct alignment.

Recommendations

For safe and long-lasting outdoor installation, verify the wall's load capacity, use suitable anchors for the substrate, and apply waterproof rubber to all external openings. Follow camera and mount manufacturer instructions for torque and sealing to ensure reliable operation.
