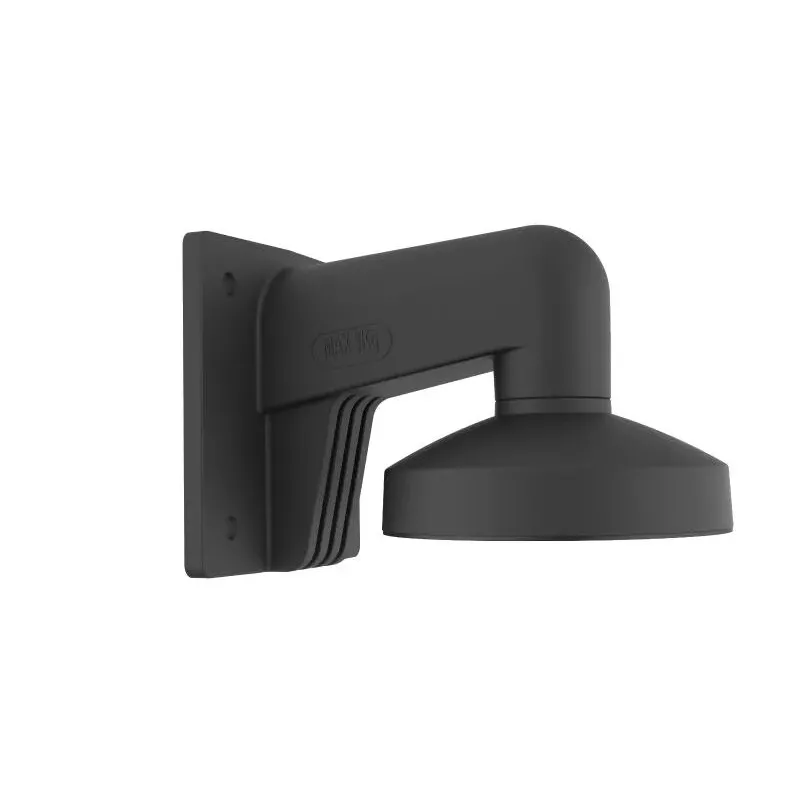

Soporte Hikvision DS-1272ZJ-120 (negro) universal negro 4,5 kg

The Hikvision DS-1272ZJ-120(BLACK) is a universal camera mount designed to provide a compact and reliable support solution for CCTV cameras. With a maximum load capacity of 4.5 kg and a compact footprint, this black mount is suitable for a wide range of surveillance cameras and installation environments. Its dimensions — 12 cm diameter, 86.8 mm depth and 122 mm height — combine to deliver a low-profile mounting option that integrates discreetly with building façades and interiors.

Advantages

This universal mount offers a sturdy load capacity that accommodates most dome and bullet cameras up to 4.5 kg while maintaining a compact form factor. The black finish reduces visual contrast and helps cameras blend into both indoor and outdoor settings. Precise dimensions and a controlled depth make routing cables and aligning camera positions straightforward during installation.

Suitable for

• Mounting dome and bullet CCTV cameras
• Indoor surveillance installations in offices, corridors and retail spaces
• Outdoor wall or ceiling mounting where a discreet black finish is preferred
• Replacement or upgrade of existing camera mounts with similar dimensions

Key specifications

• Maximum supported load: 4.5 kg
• Diameter: 12 cm
• Depth: 86.8 mm
• Height: 122 mm
• Color: black
• Universal mounting interface compatible with standard CCTV camera housings

How to use

Select an appropriate mounting location that can support the combined weight of the mount and camera. Position the mount on the chosen surface, mark drilling points using the mount as a template, and secure it with suitable anchors or screws for the surface material. Route camera cables through the mount body as needed, attach the camera to the mount following the camera manufacturer’s instructions, and adjust the camera orientation for the desired field of view. Verify mechanical stability and perform final tightening of fasteners before powering the camera.

Recommendations

For outdoor installations, use corrosion-resistant fasteners and sealant around mounting interfaces to protect against moisture ingress. Ensure the mounting surface is structurally sound and rated to carry the mount and camera weight. When installing at height, follow local safety regulations and use appropriate fall protection and lifting equipment.
