Soporte MikroTik quickMOUNT pro gris

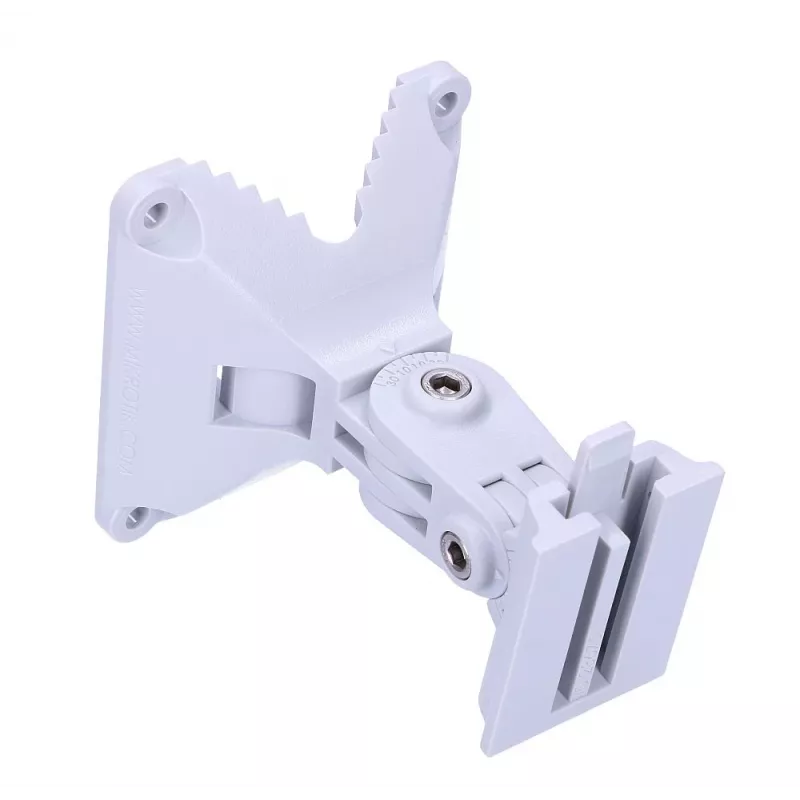

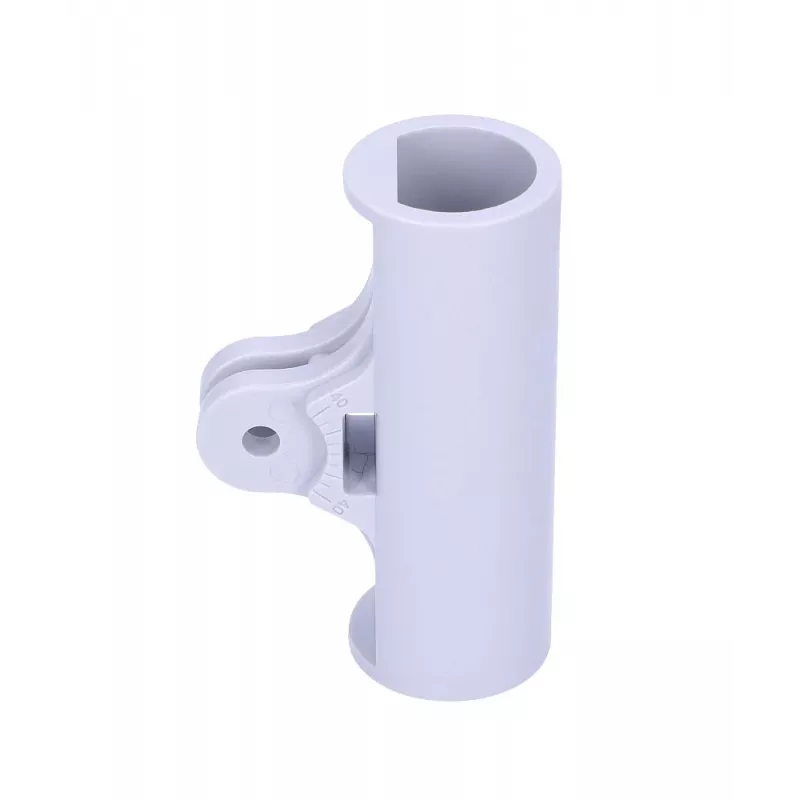

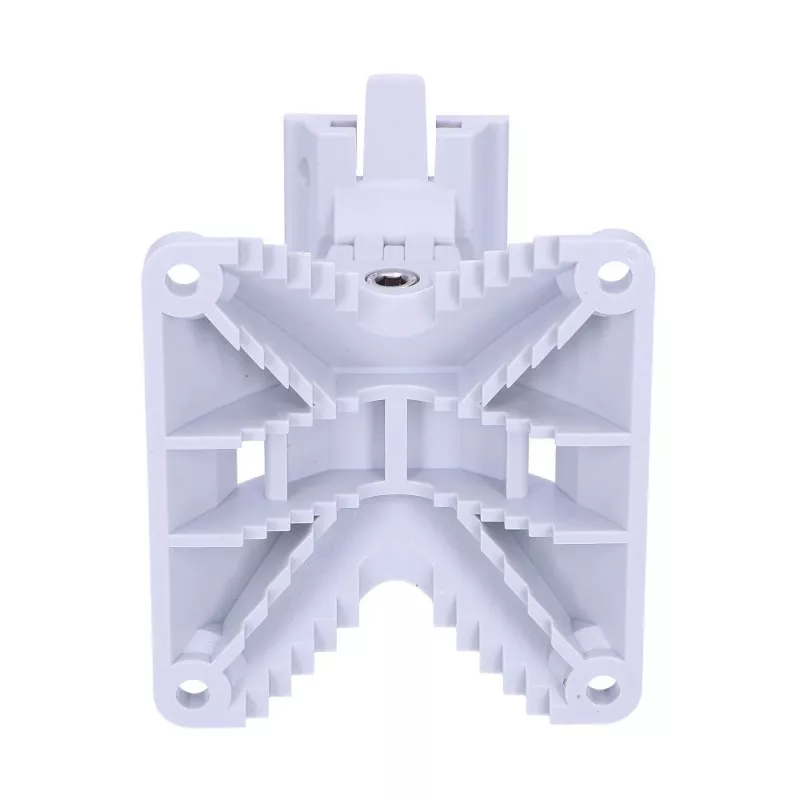

The quickMOUNT pro is an advanced wall-mount adapter for small point-to-point and sector antennas. It can be fixed to a wall or used as an adapter to convert a large-diameter pole to a small antenna mounting clip, providing a secure fit. The adapter is made from an anvilNITE (TM) plastic composite for increased durability and long service life.

Advantages

The quickMOUNT pro allows antenna rotation up to 140° in both horizontal and vertical planes and includes an integrated graduated scale for precise alignment. It supports mounting of pole-mountable devices or MikroTik small mounting clips with equipment weight up to 1.5 kg. Its composite construction ensures resistance to mechanical stress and outdoor conditions.

Key specifications

• Mount type: wall mount adapter / pole-to-clip adapter
• Rotation range: up to 140° horizontal and vertical
• Compatible load: devices or clips up to 1.5 kg
• Material: anvilNITE (TM) plastic composite

How to use

Secure the quickMOUNT pro to a suitable wall surface or attach it to a pole using the large-diameter pole interface. Mount the antenna or MikroTik small mounting clip on the adapter and tighten fasteners according to the device instructions. Use the integrated graduated scale to align the antenna precisely, and then lock the position to prevent movement.

Recommendations

Verify the combined weight of the antenna and clip does not exceed 1.5 kg. Ensure all fasteners are tightened and check alignment after initial outdoor exposure and periodically during maintenance.
