Soporte para cámara de vigilancia Bosch LTC 9212/00, colocación universal, blanco, capacidad de carga 9 kg, giro 360°, inclinación de -90° a 90°

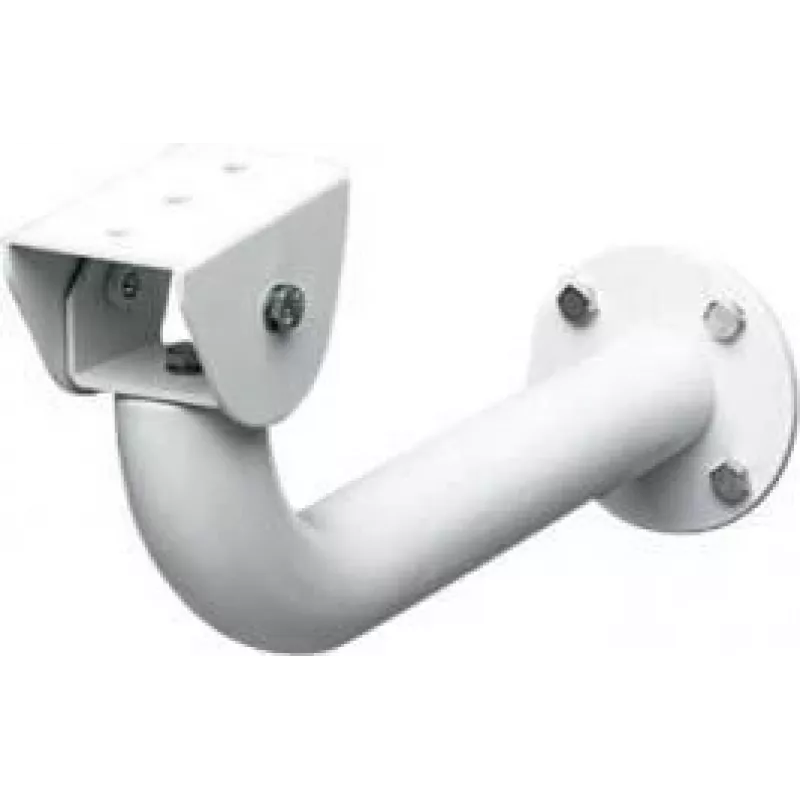

The Bosch LTC 9212/00 is a white universal mount designed for secure placement of surveillance cameras. It supports cameras up to 9 kg and offers full 360° rotation plus a tilt range from −90° to 90°, enabling precise orientation. With compact dimensions (54 mm width, 307 mm depth, 125 mm height) and a corrosion-resistant finish, the mount is suitable for both indoor and outdoor installations where stable support and flexible positioning are required.

Advantages

The mount combines a lightweight construction with a durable, corrosion-resistant coating to ensure long service life in varied environments. Its versatile design and adjustable mount heads allow accurate aiming and easy alignment of cameras. The unit’s attractive appearance integrates unobtrusively with building exteriors and interiors while its 9 kg load capacity accommodates a wide range of camera models.

Suitable for

• Wall or ceiling mounting of surveillance cameras
• Indoor and outdoor CCTV installations requiring precise aiming
• Support of dome and bullet cameras up to 9 kg
• Locations where compact footprint and discreet appearance are needed

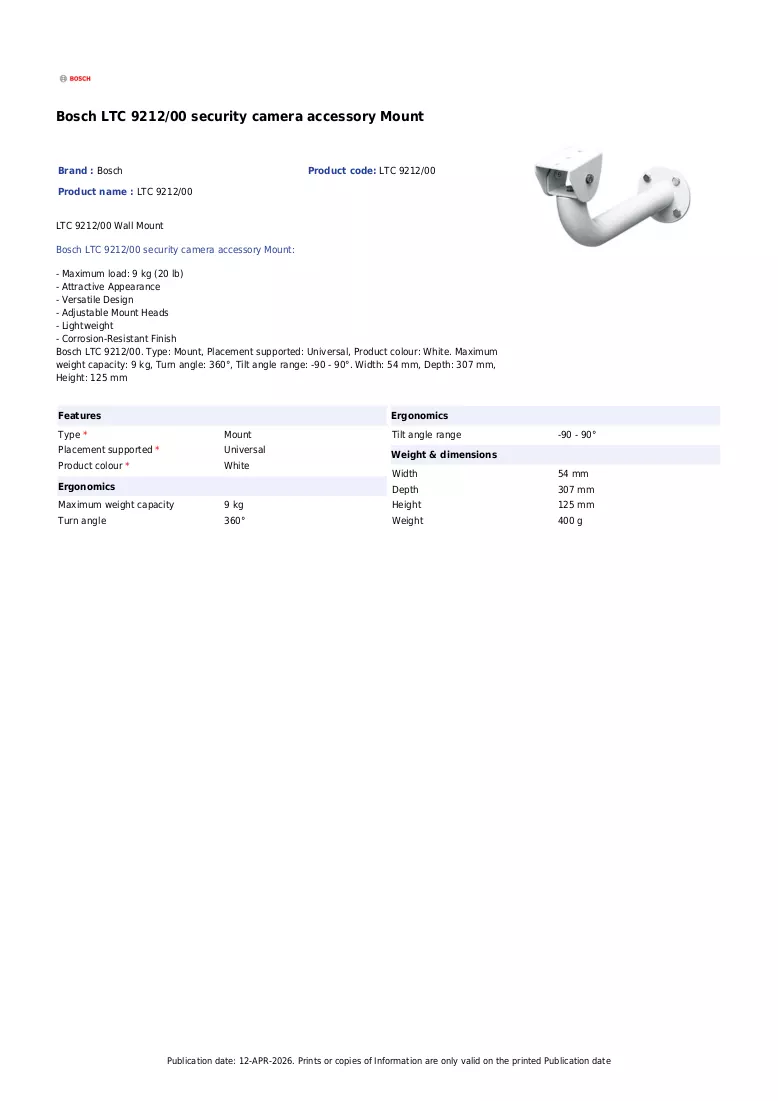

Key specifications

• Maximum load capacity: 9 kg (20 lb)
• Rotation: 360° pan
• Tilt range: −90° to 90°
• Finish: corrosion-resistant coating
• Dimensions: 54 mm (W) × 307 mm (D) × 125 mm (H)
• Color: white

How to use

Select a suitable mounting surface able to support the camera and mount assembly. Position the mount, mark and drill fixing holes, then secure the mount using appropriate fasteners for the surface material. Attach the camera to the mount head, adjust pan and tilt to achieve the required field of view, and tighten the adjustment points to lock the position. For outdoor installations, check seals and ensure the mounting hardware is compatible with external conditions.

Recommendations

Verify the combined weight of camera and accessories does not exceed 9 kg. Use stainless or properly rated fasteners for outdoor applications and perform periodic checks of fixation and alignment to maintain stable positioning and image framing.
