Soporte para monitor GEMBIRD MA-DA1P-01 — soporte de sobremesa de 1 brazo para pantallas de 17–32 pulgadas, VESA 75x75–100x100, carga máx. 9 kg, negro

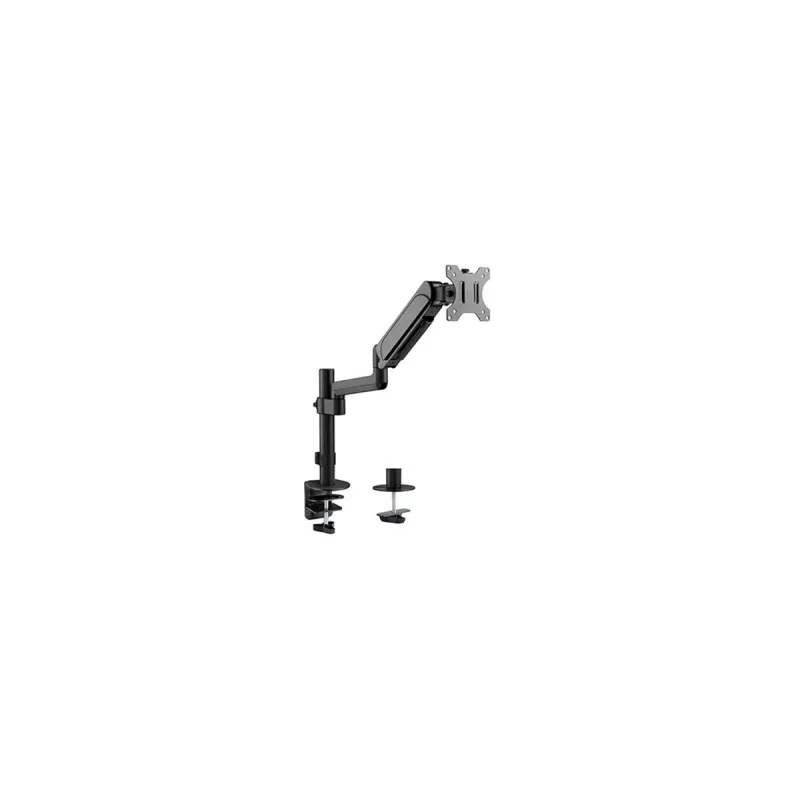

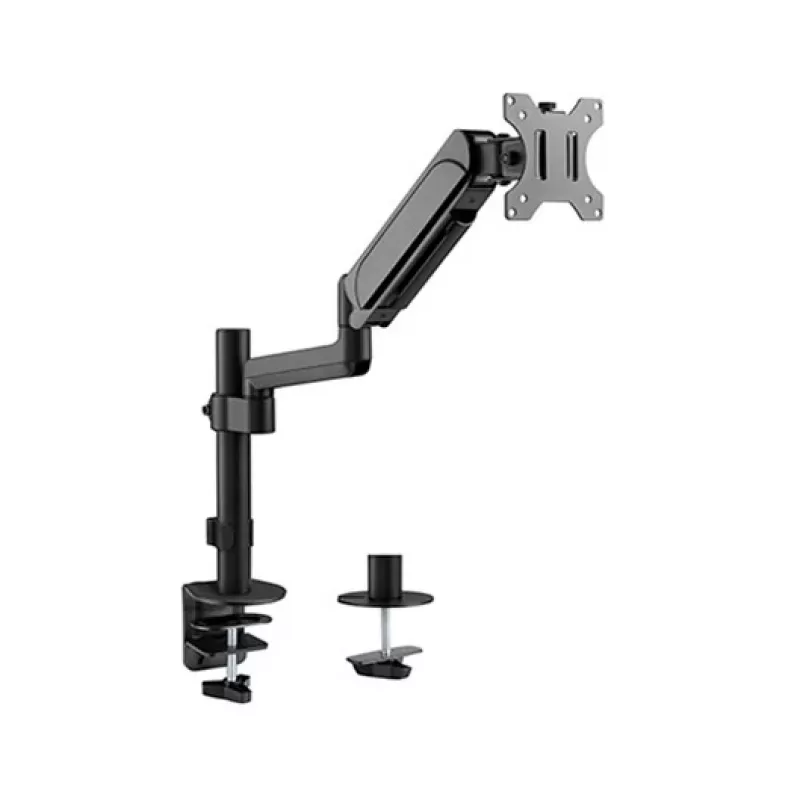

The Gembird MA-DA1P-01 is an adjustable desk monitor mount for one display, compatible with screens from 17" to 32" (43.2–81.3 cm). It supports VESA 100 x 100 and a maximum display weight of 9 kg. The arm is finished in black and can be fixed to a desk using either a clamp or grommet, offering flexible installation for different workspaces.

Advantages

The mount provides height adjustment, swivel and tilt functions to achieve comfortable viewing angles and reduce neck strain. With a compact design and 3.3 kg product weight, it saves desk space and keeps the monitor securely in place. Dual mounting options (clamp and grommet) make it adaptable to a variety of desk thicknesses and layouts.

Suitable for

• Home offices where desk space is limited
• Corporate workstations requiring ergonomic monitor positioning
• Multimedia and light graphic work with a single 17"–32" monitor
• Setups needing clamp or grommet installation

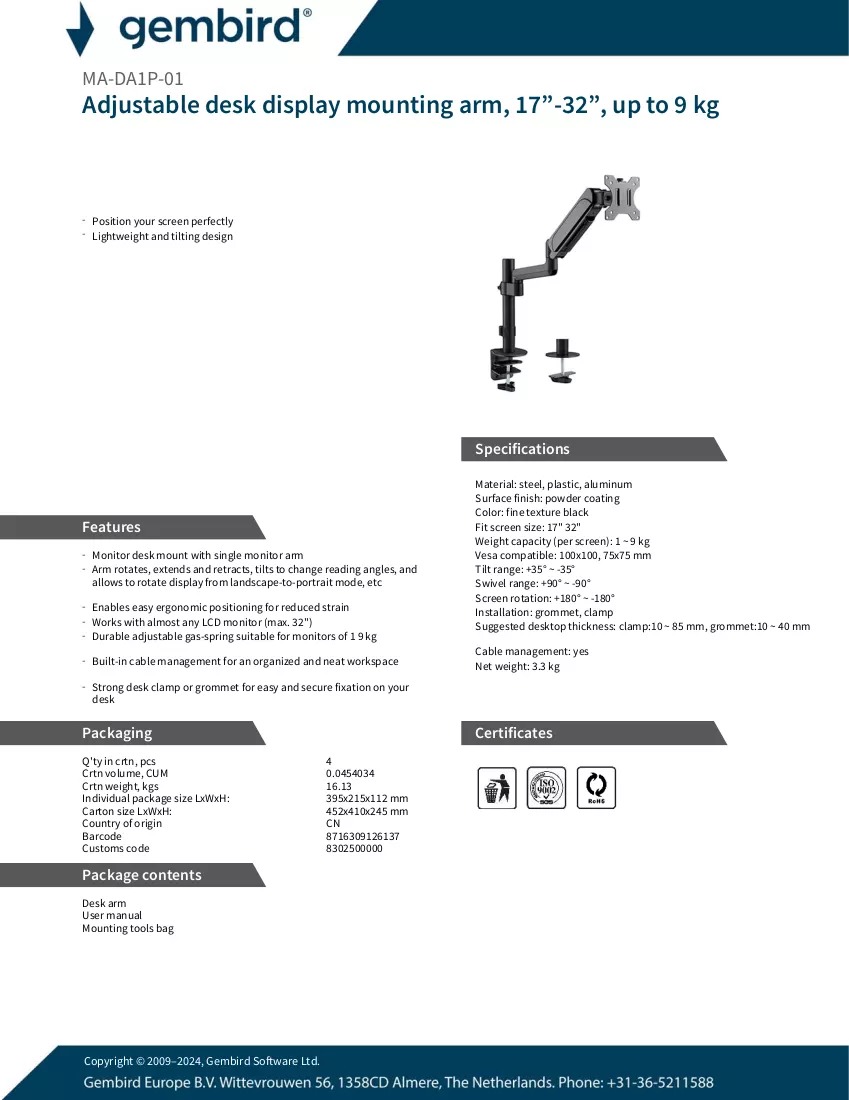

Key specifications

• Model: Gembird MA-DA1P-01
• Screen size compatibility: 43.2–81.3 cm (17"–32")
• Maximum VESA: 100 x 100 mm
• Maximum weight capacity: 9 kg
• Number of displays supported: 1
• Product weight: 3.3 kg
• Colour: Black
• Mounting: Desk clamp or grommet

How to use

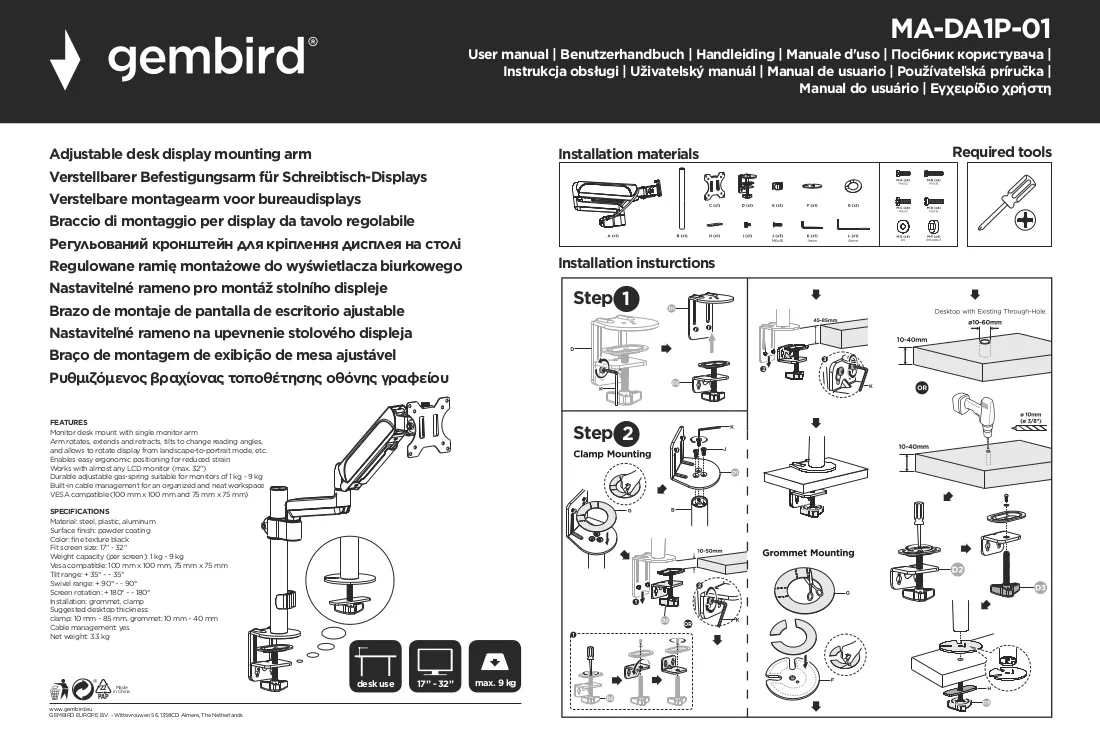

Attach the mounting plate to the back of the monitor aligned with the 100 x 100 VESA holes, then secure the plate to the arm. Choose either the clamp or grommet base according to your desk type: fix the clamp to the desk edge or insert and tighten the grommet through a desk hole. Adjust height, tilt and swivel to the desired viewing position and tighten the adjustment points to lock the monitor in place. Follow the included manual for torque recommendations and safety instructions.

Recommendations

Do not exceed the maximum load of 9 kg and ensure your monitor’s VESA pattern matches 100 x 100. Periodically check mounting screws and adjustment fittings for tightness to maintain safe operation.
