Soporte para punto de acceso wifi Ubiquiti nanoHD-RetroFit-3

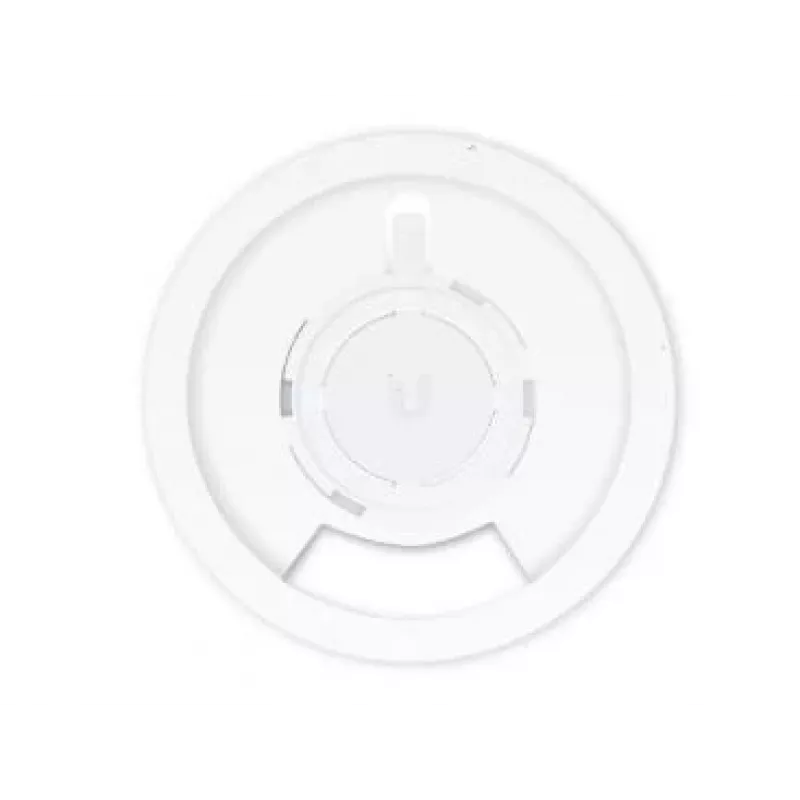

The Ubiquiti nanoHD-RetroFit-3 is a WLAN access point mount designed specifically for use with the UniFi nanoHD AP. Its slim white housing measures 187.8 mm by 187.8 mm with a height of 16.7 mm, providing a low-profile mounting solution that integrates seamlessly into indoor environments. The mount offers a secure, stable platform to position the access point for optimal signal propagation and improved coverage within a wireless network installation.

Advantages

The mount’s compact dimensions and neutral white finish reduce visual impact while maintaining structural stability and a neat appearance. It is lightweight at approximately 0.105 kg, which simplifies handling and installation. Designed to match the form factor of the UniFi nanoHD AP, the retrofit mount helps ensure correct alignment and reliable support without altering the access point’s operation.

Suitable for

• Indoor wireless network installations in offices and public spaces
• Retrofit mounting of UniFi nanoHD access points where recessed or surface mounting is required
• Deployments requiring a discreet, low-profile AP installation

Key specifications

• Compatible device: UniFi nanoHD AP (mounting accessory)
• Colour: White
• External dimensions (W × D × H): 187.8 mm × 187.8 mm × 16.7 mm
• Weight: 0.105 kg
• Mount type: Retrofit/surface mounting solution for ceiling or flat surfaces

How to use

Position the retrofit mount at the chosen ceiling or flat surface location and secure it according to the mounting instructions supplied with the accessory and the access point. Align the UniFi nanoHD AP with the mount so that mounting points match, then attach the access point to the mount until it locks into place. Verify that the device is seated correctly and that any required cabling (PoE Ethernet cable) is routed and connected in accordance with the access point manufacturer’s installation guidelines.

Recommendations

Install the mount in a location that provides clear line-of-sight where possible and allows for centralized placement relative to client devices. Use appropriate fasteners for the mounting surface material, follow the access point’s grounding and cabling requirements, and perform a site survey after installation to confirm optimal wireless coverage and signal strength.
