Soporte/pie de TV Techly ICA-PLB-369T 3,05 m (120") negro

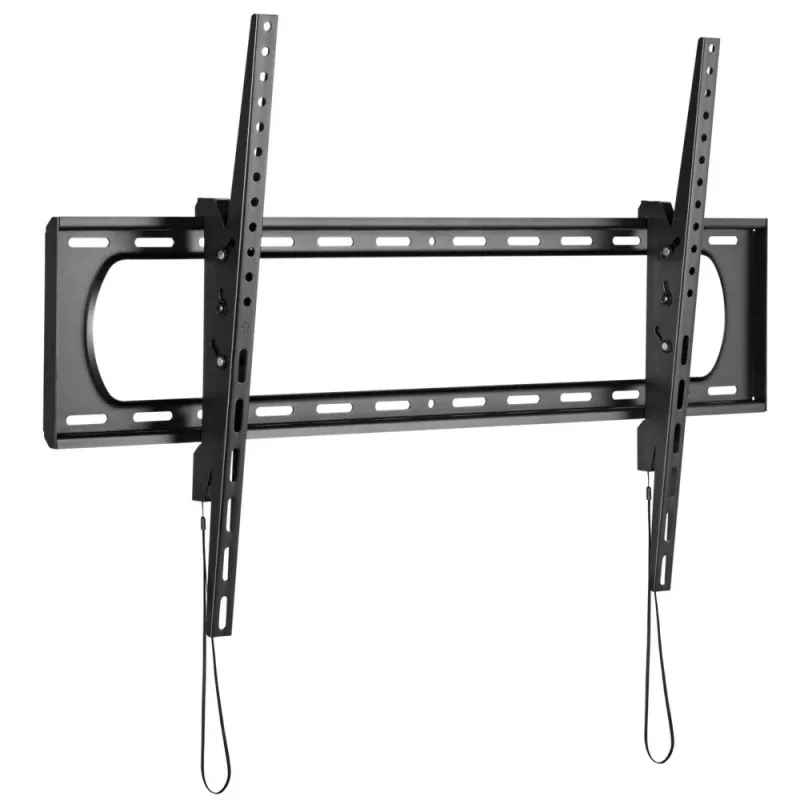

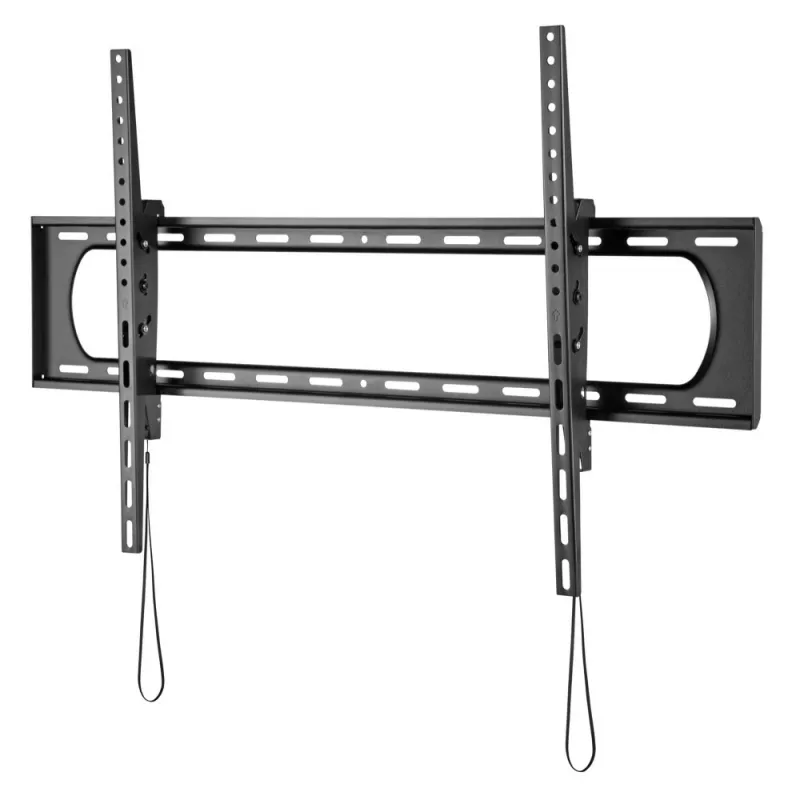

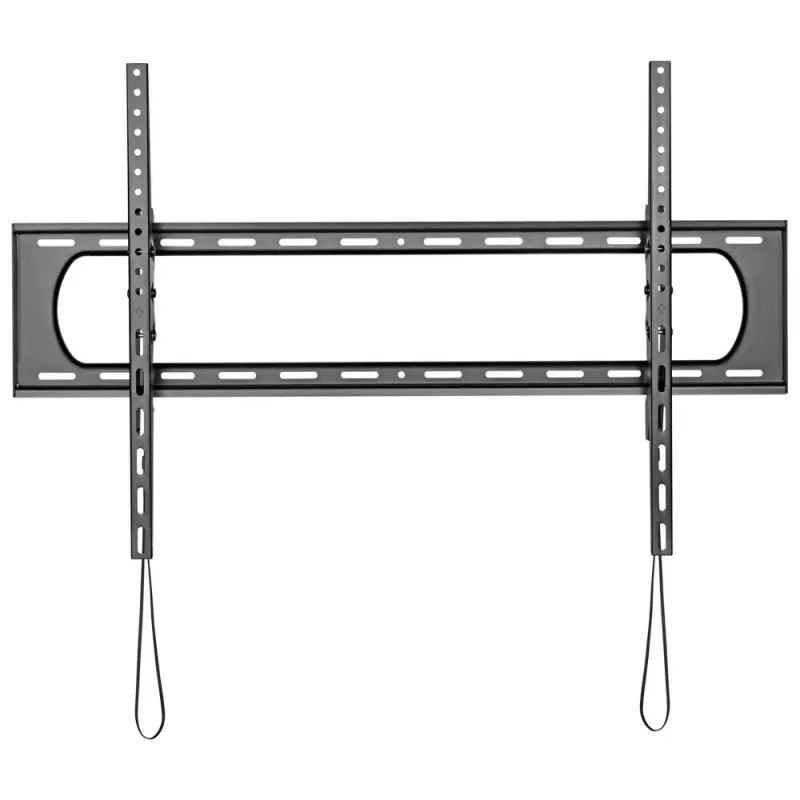

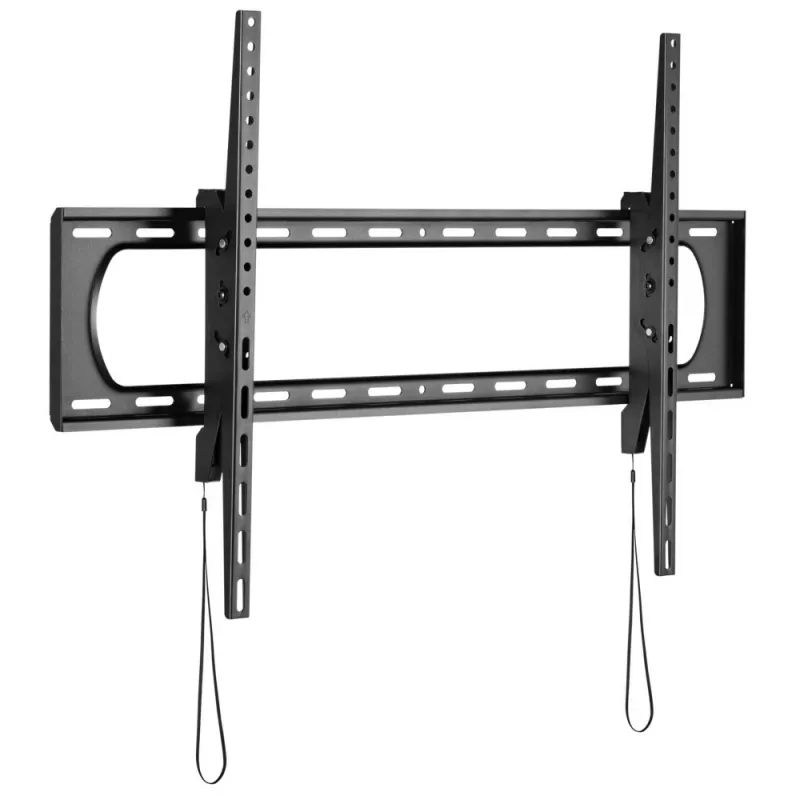

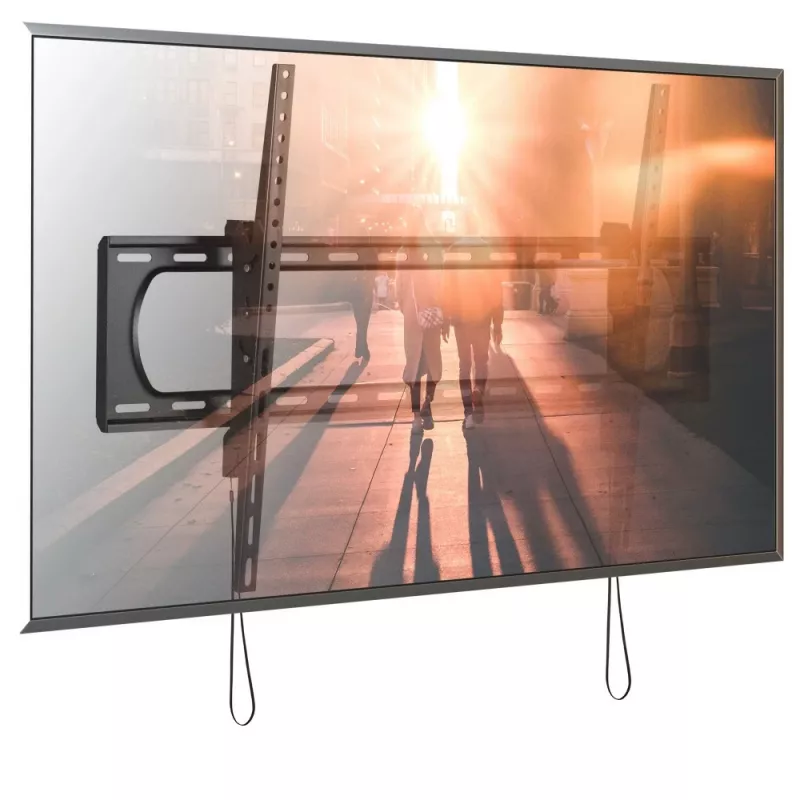

The Techly ICA-PLB-369T TV mount is a heavy-duty solution designed for large screens from 60" to 120" and a maximum load of 120 kg. Its reinforced frame evens out load distribution and provides a central open space for installing a power socket and concealing cables. The mount places the screen 8 cm from the wall and supports a wide range of VESA patterns up to 900 x 600 mm.

Advantages

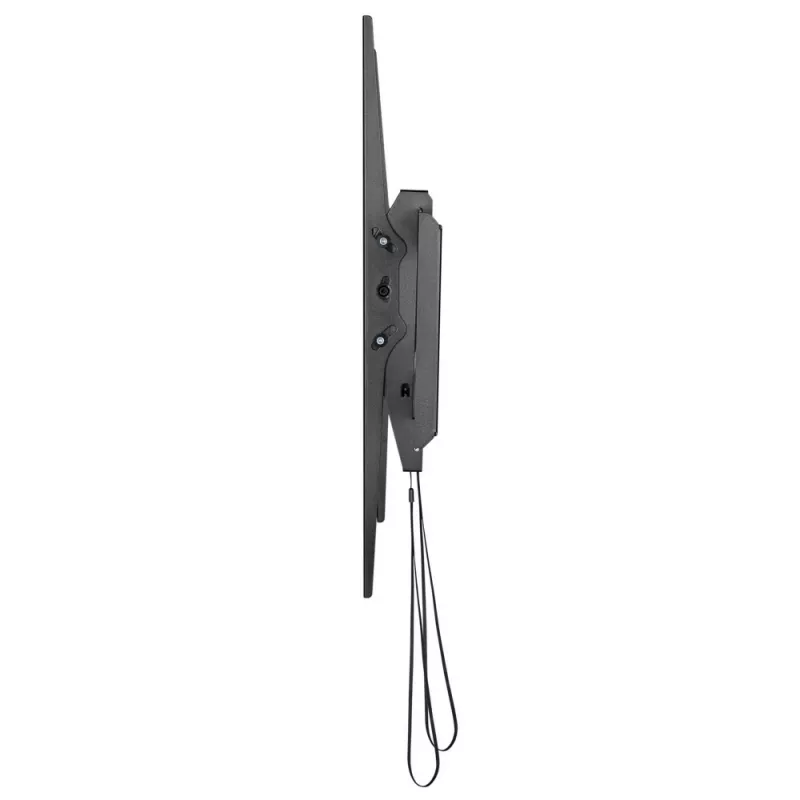

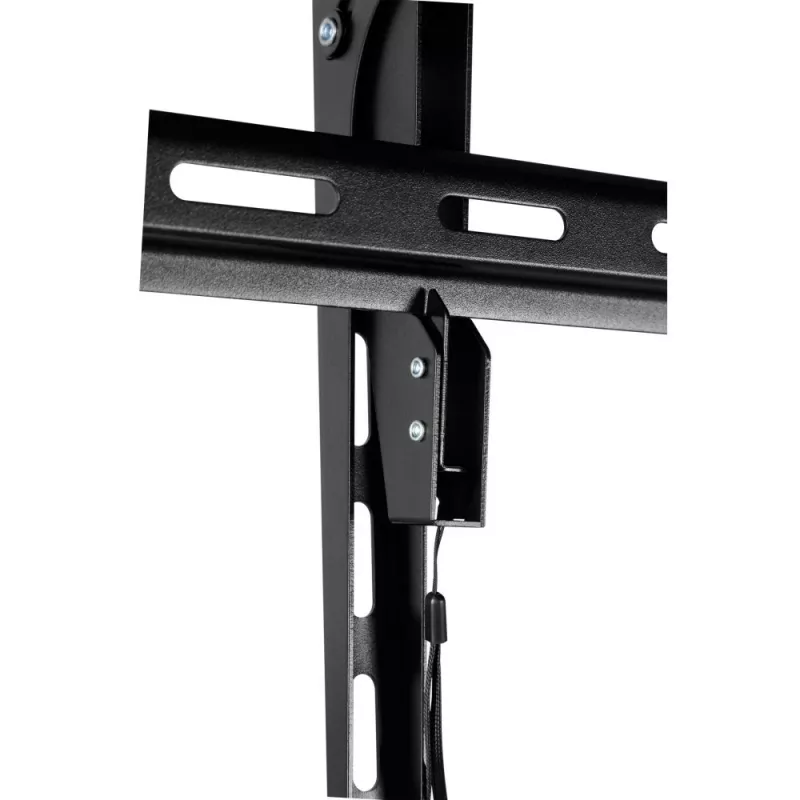

The reinforced stiffening structure increases stability and allows safe support of heavy displays up to 120 kg. A tool-less tilt mechanism offers +10° to -10° adjustment for optimal viewing angles without additional hardware. The large central space simplifies installation of power outlets and cable management. A quick-release spring lock enables fast removal and reinstallation of the TV, reducing service and maintenance time.

Suitable for

• Large LED/LCD/LED displays from 60" to 120"
• Commercial and public installations (conference rooms, retail, lobbies)
• Heavy residential TVs requiring robust wall mounting
• Installations needing built-in power outlet and hidden cable routing

Key specifications

• Maximum weight capacity: 120 kg
• Supported screen size: 60"–120"
• VESA compatibility: up to 900 x 600 mm (minimum 50 x 50 mm)
• Tilt range: +10° to -10° (tool-less)
• Distance to wall: 8 cm
• Colour: Black
• Number of displays supported: 1

How to use

Mount the reinforced bracket on a suitable wall surface following local building codes and ensuring anchors match the wall type and expected load. Attach the mounting arms to the TV using compatible VESA holes, lift the TV into position and engage the quick-release spring lock. Adjust the tilt angle between +10° and -10° without tools to obtain the desired viewing angle. Route power and signal cables through the central opening to keep them concealed.

Recommendations

Use certified heavy-duty anchors or bolts appropriate for the wall material and check that the combined weight of TV and accessories does not exceed 120 kg. For public or commercial installations, consider professional mounting to ensure safety and compliance with local regulations.
