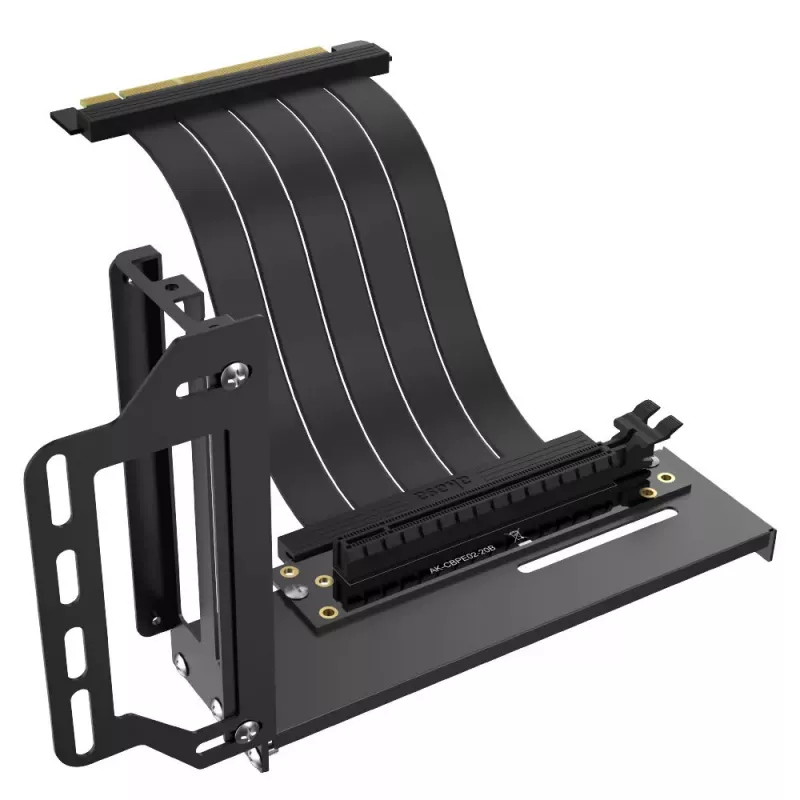

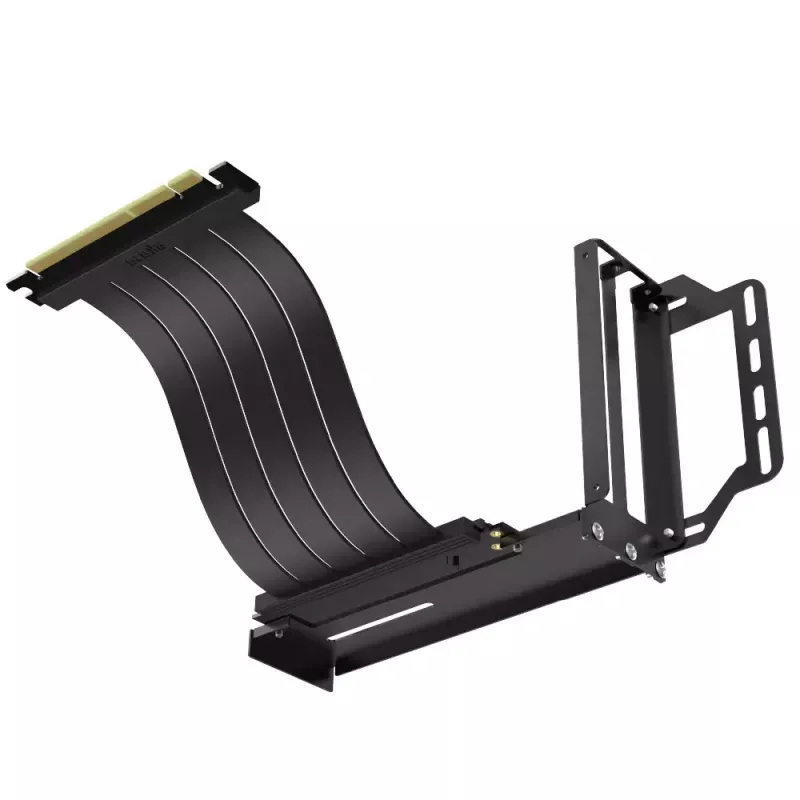

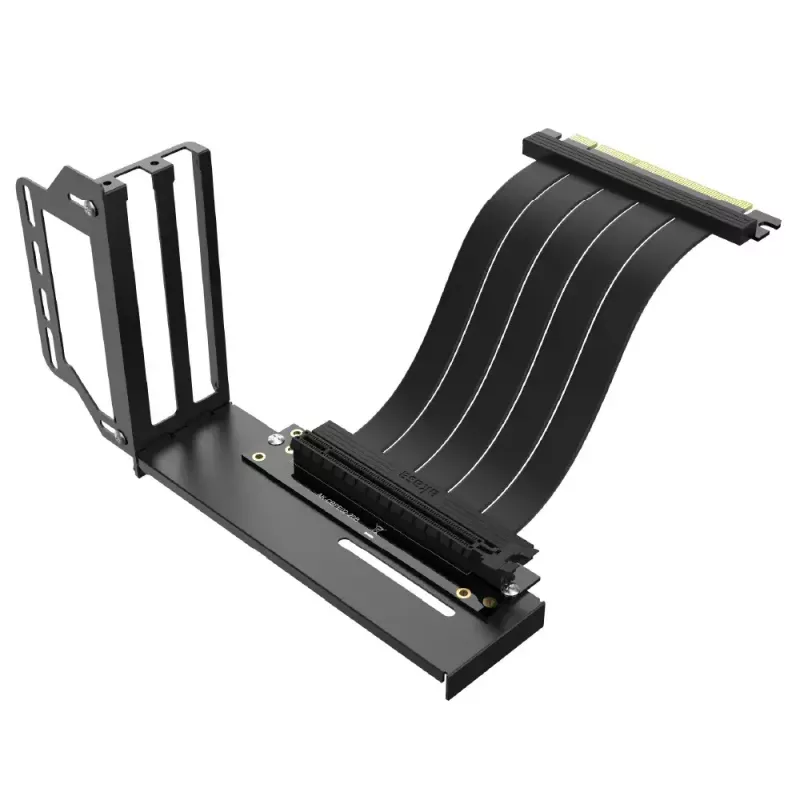

Soporte vertical para GPU Akasa RISER Negro PRO

The Akasa RISER BLACK PRO is a vertical GPU holder designed to provide stable support and a clean visual presentation for modern PC builds. It integrates a premium PCIe 3.0 riser cable with a 90° PCIe 3.0 x16 female connector and a 180° PCIe 3.0 x16 male connector. The 0.2 m cable length allows close-range vertical GPU positioning while maintaining signal integrity for standard PCIe 3.0 graphics cards. The holder's black finish is intended to blend with most chassis interiors and emphasize the GPU as a focal point of the system.

Advantages

The vertical GPU holder reduces mechanical stress on the motherboard PCIe slot by supporting the weight of the graphics card and minimizes sag. The included PCIe 3.0 riser cable is designed to maintain reliable data transfer at PCIe 3.0 speeds and to provide a secure mating between the motherboard and GPU. Its compact 0.2 m cable offers minimal excess cabling inside the case for a neater layout. The black color and slim profile are chosen to integrate with a wide range of case styles without drawing attention away from other components.

Suitable for

• PC builders who want a vertical GPU orientation for display or airflow reasons
• Systems where GPU sag must be prevented or reduced
• Compact or mid-tower cases that support vertical GPU mounting with a short riser cable
• Enthusiasts seeking a clean internal layout with a black, low-profile accessory

Key specifications

• Interface: PCIe 3.0 x16 compatible riser cable
• Connector orientation: 90° female to 180° male
• Cable length: 0.2 m
• Function: vertical GPU mounting and support
• Color: black

How to use

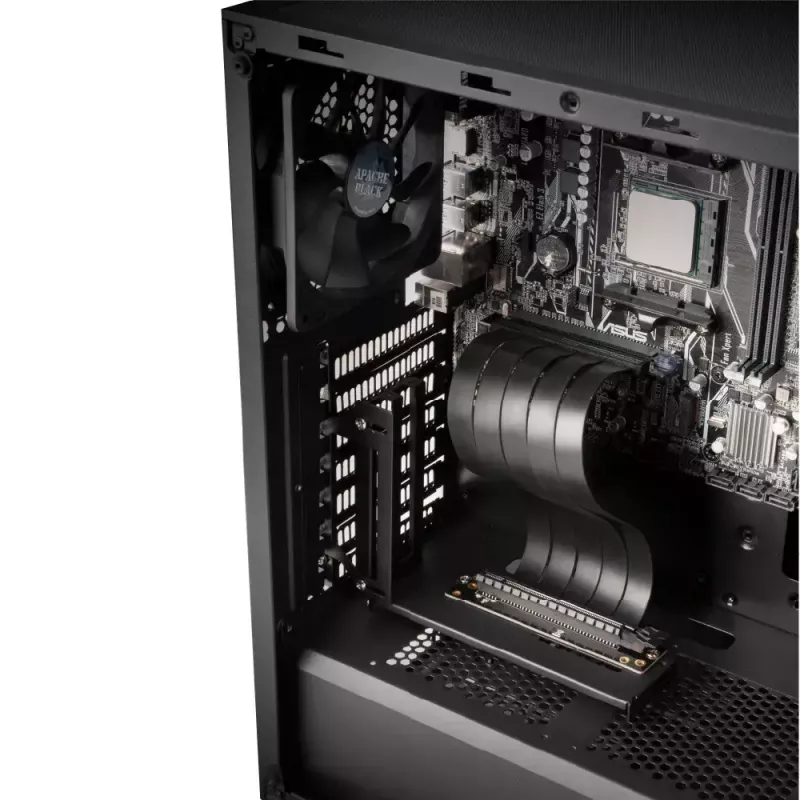

Install the holder according to your chassis's vertical GPU mounting points, securing the bracket to the case where applicable. Connect the riser cable's PCIe 3.0 x16 male connector to the motherboard PCIe slot and attach the 90° female end to the graphics card's PCIe edge. Ensure the GPU is seated fully in the riser connector and fasten the card to the holder bracket to prevent movement. Verify that the cable routing does not contact moving fans or block airflow and that all power and display connections are accessible after installation.

Recommendations

Use this vertical GPU holder in cases that explicitly support vertical GPU mounting or with available mounting points; confirm clearance for the GPU cooler and adjacent components before final assembly. For optimal performance, pair the holder with PCIe 3.0 graphics cards and avoid forcing higher-bandwidth connections beyond the riser cable's PCIe 3.0 specification. Periodically check mechanical fastenings to ensure the GPU remains securely mounted.
