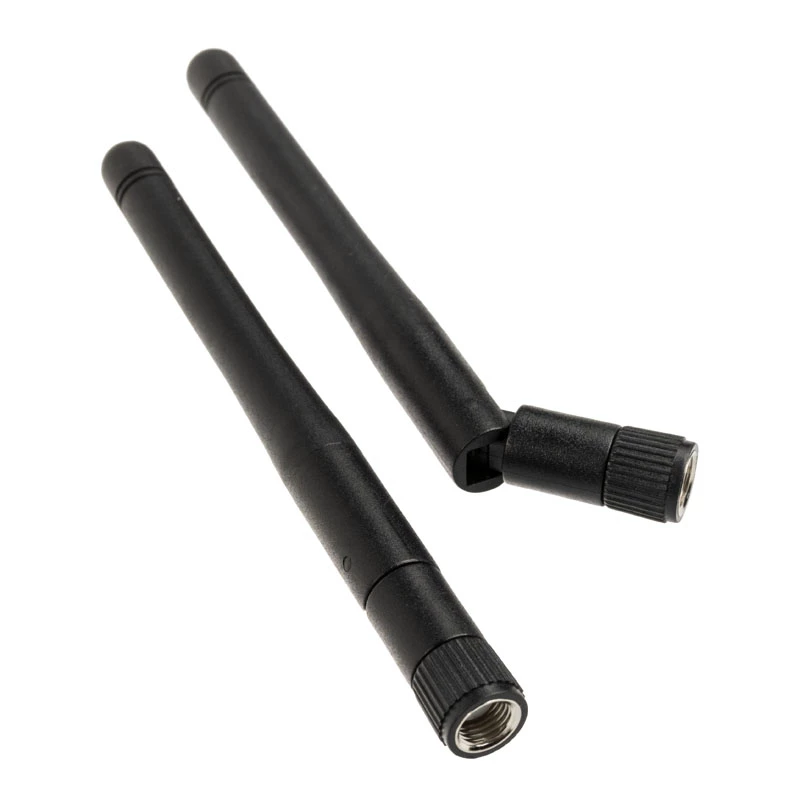

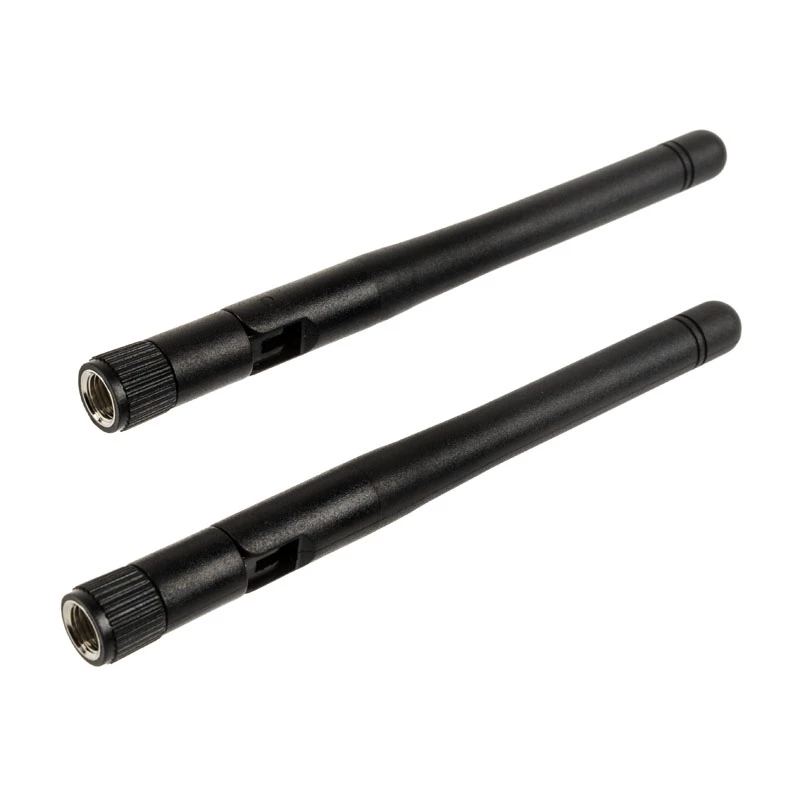

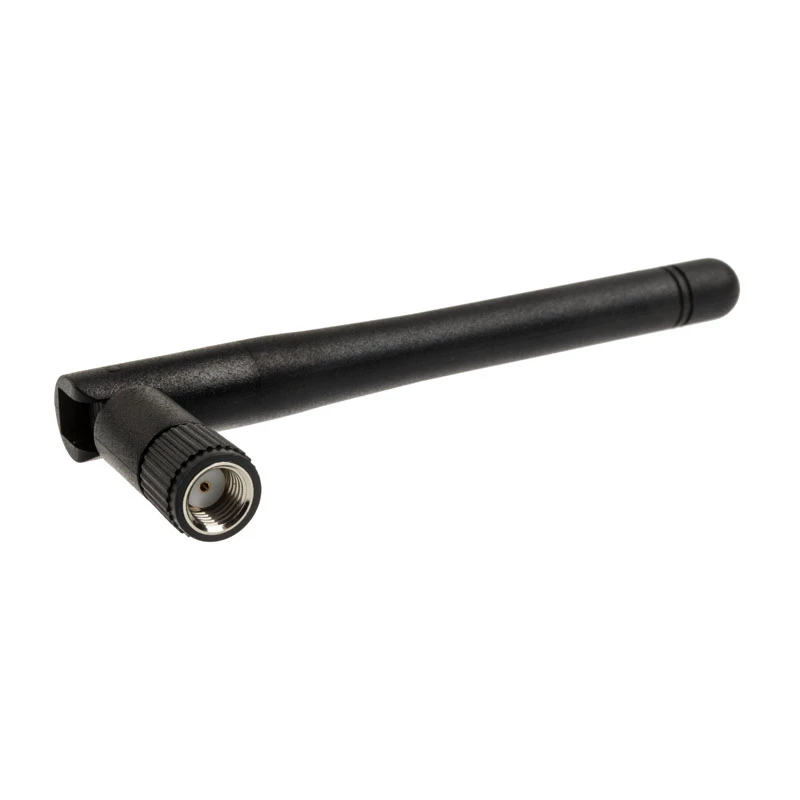

Antena omnidireccional Akasa A-ATN01-BK

The Akasa A-ATN01-BK omni-directional antenna extends the Wi‑Fi and Bluetooth capability of small systems such as Intel NUCs installed inside Akasa fanless cases. With a compact 108 mm length, RP‑SMA male connector and support for common 2.4/5.2/5.8 GHz bands, the antenna is supplied as a pack of two to improve wireless signal reach and flexibility when used with compatible devices.

Advantages

The antenna offers an omni‑directional radiation pattern with a maximum gain of 2 dBi, ensuring uniform coverage in multiple directions. Its RP‑SMA male connector provides wide compatibility with routers, wireless cards and mini-PCs. The small, lightweight design (9 g) makes it easy to install inside compact enclosures without adding bulk.

Suitable for

• Extending Wi‑Fi and Bluetooth range for NUCs inside fanless Akasa cases
• Upgrading connectivity for mini‑PCs, routers and wireless adapters
• Use in environments operating on 2.4 GHz and 5 GHz (5.2 / 5.8 GHz) bands

Key specifications

• Frequency band: 2.4 / 5.2 / 5.8 GHz
• Antenna gain (max): 2 dBi
• Connector: RP‑SMA male
• Standards supported: IEEE 802.11 a / b / g / ac / ad
• Dimensions: 108 mm length
• Weight: 0.009 kg (9 g)
• Pack contents: 2 antennas

How to use

Screw the RP‑SMA male connector of the Akasa A‑ATN01‑BK into the corresponding female RP‑SMA port on your device. Position the antenna vertically for general omni‑directional coverage or adjust orientation to optimize signal for a specific direction. Ensure the antenna is secured and that the device’s wireless drivers and firmware are up to date for best performance.

Recommendations

For optimal Bluetooth and Wi‑Fi performance inside a fanless Akasa case, route antenna cable and position antennas near ventilation openings or external mounting points where possible; avoid placing metal objects directly between the antenna and the wireless access point.
