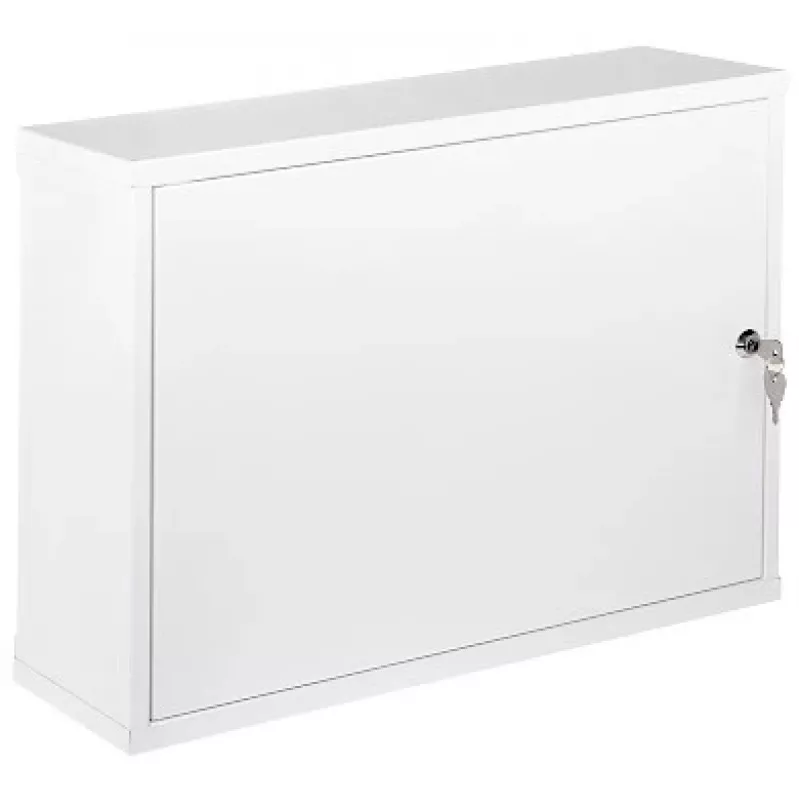

STALFLEX MB-TPR5-MP-W Caja de pared 520 x 400 x 140 mm IP55 acero gris claro

The STALFLEX MB-TPR5-MP-W is a robust wall-mounted enclosure designed for electrical distribution, industrial control, and telecommunications applications. Manufactured from high-quality steel with a powder-coated finish in RAL 7035 light grey, this enclosure offers reliable protection for your equipment in demanding environments.

Advantages

With an IP55 protection rating, the MB-TPR5-MP-W provides excellent resistance against dust and water jets, ensuring long-lasting performance. The solid metal door with a 120-degree opening angle allows easy access, while the key lock secures your components. The internal galvanized steel mounting plate simplifies installation, and the removable bottom gland plate facilitates cable entry.

Suitable for

• Electrical distribution systems
• Industrial control panels
• Telecommunications equipment housing
• Wall-mounted installations requiring IP55 protection

Key specifications

• Material: Steel, powder coated
• Colour: RAL 7035 (Light Grey)
• Protection Rating: IP55
• Dimensions: 520 x 400 x 140 mm (Width x Height x Depth)
• Door: Single, solid metal, opening angle 120°
• Lock: Key lock (cam lock)
• Mounting Plate: Galvanized steel, included
• Cable Entry: Bottom gland plate, removable
• Material Thickness: 1.0 mm
• Gasket: Polyurethane (PU)
• Earthing Points: On body and door
• Standards: EN 62208

Recommendations

For optimal installation, ensure the wall is capable of supporting the enclosure's weight. Use appropriate cable glands for the bottom entry. The enclosure is suitable for indoor and outdoor use where IP55 protection is required.
