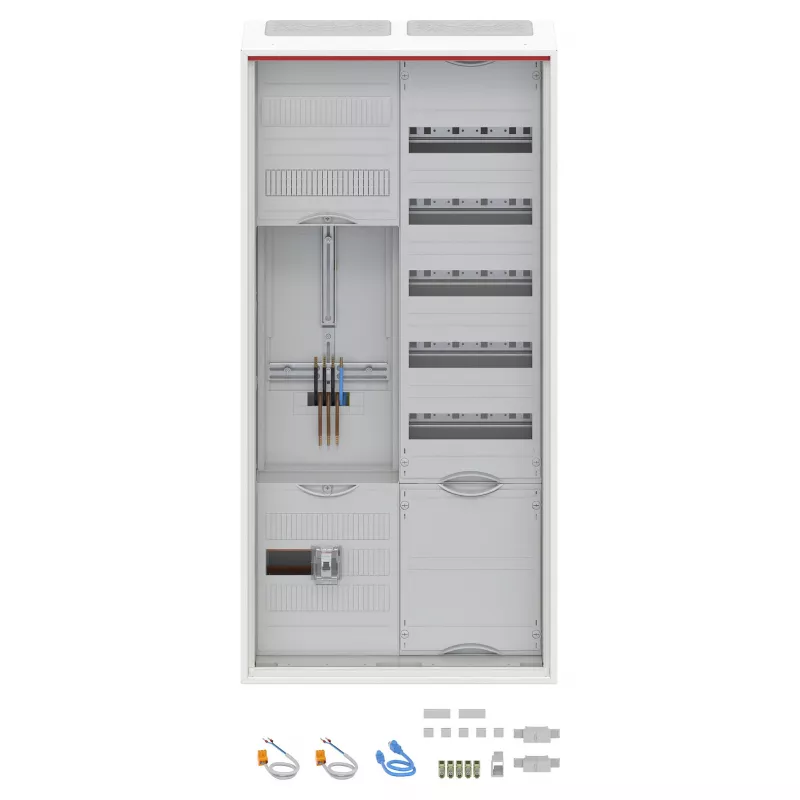

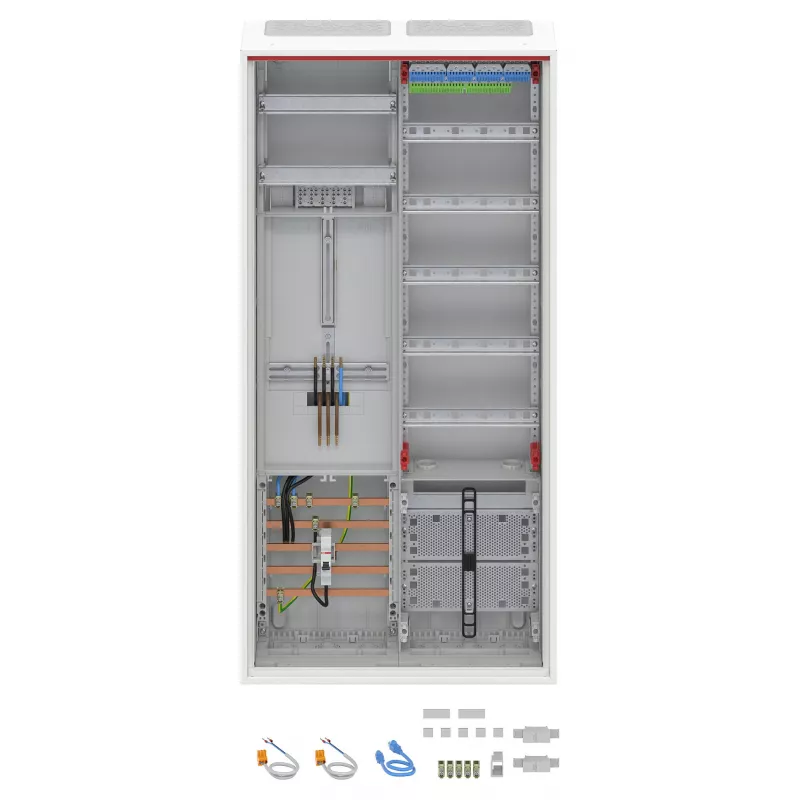

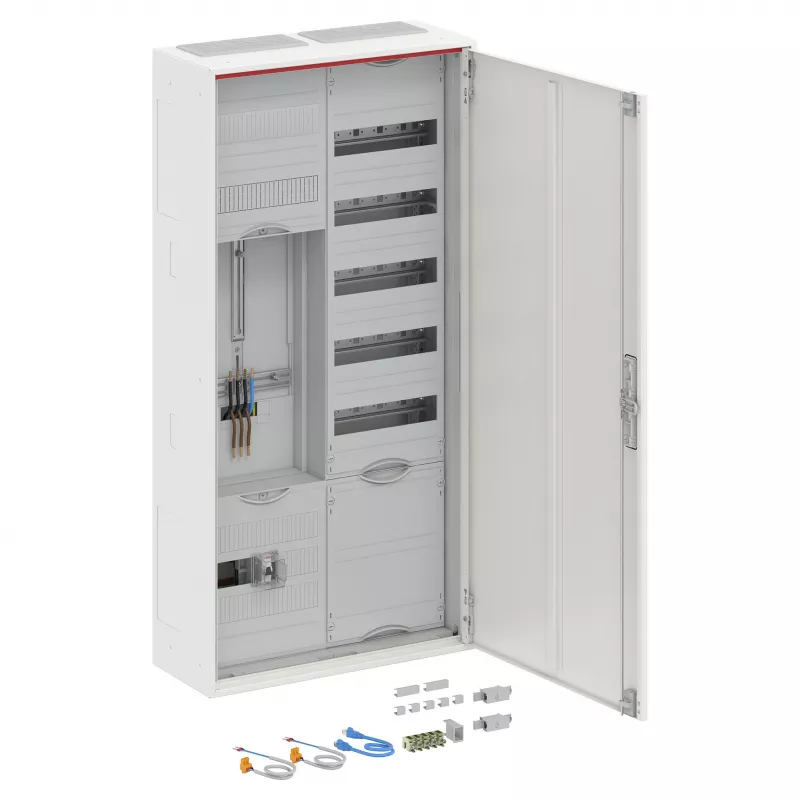

Striebel & John APZDA27CB Armario de contador, superficie, IP44, cierre de 3 puntos, 1100x550 mm, RAL 9010

The Striebel & John APZDA27CB is a high-quality meter and distribution cabinet designed for professional electrical installations. This surface-mounted enclosure combines a meter field and a distribution field in a single, space-saving unit, making it ideal for residential and commercial applications. Manufactured from robust sheet steel with a pure white RAL 9010 finish, it offers durability and a clean appearance. The cabinet features a 3-point rod locking mechanism for secure closure and is rated IP44 for protection against dust and splashing water.

Advantages

Integrated APZ field for easy meter connection; 60 TE distribution capacity (5 rows x 12 TE) for flexible circuit layout; pre-punched cable entries at top and bottom simplify installation; includes PE/N terminals and busbar for quick wiring; complies with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4101 standards.

Suitable for

• Residential and commercial building power distribution
• Metering and sub-distribution in surface-mounted installations
• Applications requiring IP44 protection in indoor or sheltered outdoor environments

Key specifications

• Product Type: Meter and Distribution Cabinet (Zählerschrank)
• Mounting Type: Surface-mounted (Aufputz)
• Number of Meter Fields: 1
• Number of Distribution Fields: 1
• Module Units (TE) per Distribution Field: 60 (5 rows x 12 TE)
• Protection Class (IP): IP44
• Locking Mechanism: 3-point rod locking
• Material: Sheet steel
• Colour: RAL 9010 (Pure White)
• Rated Voltage: 400 V AC
• Rated Current: Up to 63 A
• Door Type: Single door
• Cable Entry: Top and bottom, pre-punched
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4101
• Equipped With: PE/N terminals, busbar

Recommendations

For optimal performance, ensure the cabinet is installed by a qualified electrician and that all connections comply with local regulations. The IP44 rating makes it suitable for damp environments, but avoid direct exposure to heavy rain or corrosive substances.
