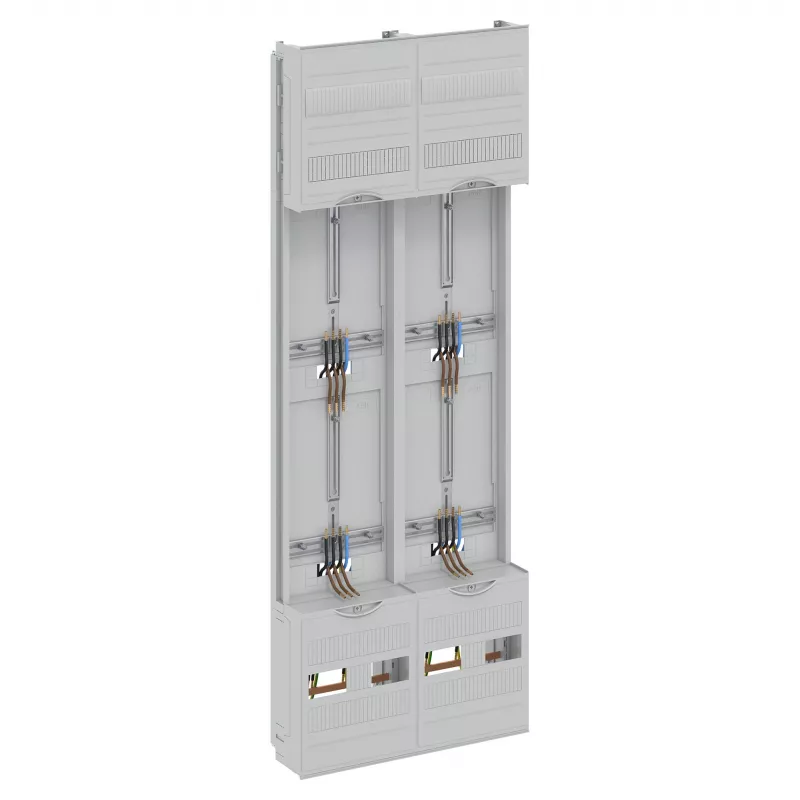

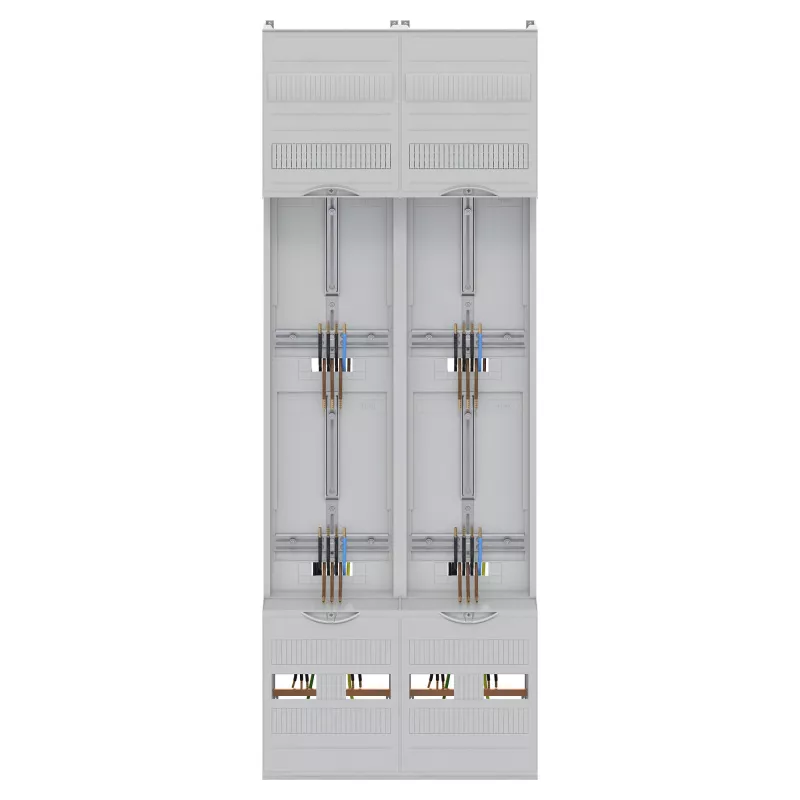

Striebel & John campo de contadores 9RE 4ZDF29C4 prefabricado 2CPX054157R9999

The Striebel & John Meter Field 9RE 4ZDF29C4 is a pre-wired meter field designed for residential and commercial electrical installations. It features 4 meter places and 9 distribution rows, providing ample space for metering and distribution. The unit is pre-wired with a 5-pole busbar system and includes a 1x 3-pole 63A main switch, ensuring reliable power distribution. Rated for 230/400 V AC at 50 Hz, it complies with DIN VDE 0603-1 and DIN 43870-1 standards. The enclosure offers IP2XC protection and is compatible with Striebel & John A-series and U-series cabinets.

Advantages

Pre-wired for quick installation, saving time and labor. Compact design with 12 module units width. Robust construction with screw terminals for secure connections. Suitable for flush or surface mounting in meter cabinets.

Suitable for

• Residential electrical metering and distribution
• Commercial building power distribution
• Integration into Striebel & John cabinet systems

Key specifications

• Product Type: Meter Field
• Number of Meter Places: 4
• Number of Distribution Rows: 9
• Wiring Status: Pre-wired
• Main Switch: 1 x 3-pole, 63A
• Busbar System: 5-pole
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Frequency: 50 Hz
• Protection Class: IP2XC
• Mounting Type: For Meter Cabinets
• Material: Plastic / Metal
• Standards: DIN VDE 0603-1, DIN 43870-1
• Width: 12 Module Units (TE)
• Connection Type: Screw terminals

Recommendations

Ensure compatibility with your existing cabinet system. Professional installation recommended.
