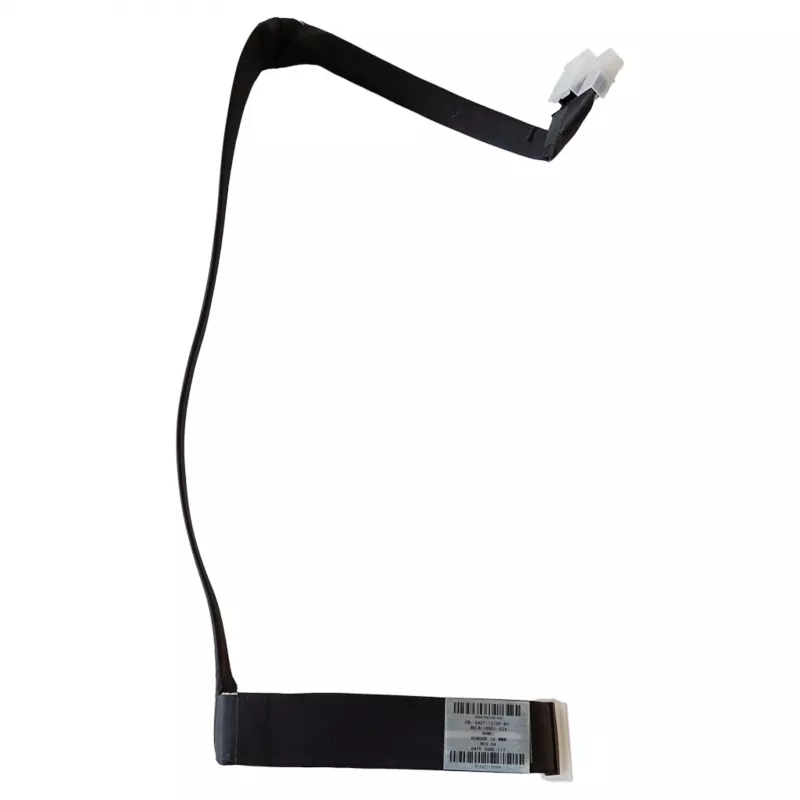

Supermicro CBL-SAST-1270F-85 cable Slimline SAS x8 (STR) a Slimline SAS x8 (STR) 70 cm

The Supermicro CBL-SAST-1270F-85 is a high-performance internal Slimline SAS cable designed for reliable high-speed data transfer in server and storage systems. Featuring straight (STR) Slimline SAS x8 (SFF-8654) connectors on both ends, this 70cm cable supports up to 24 Gbps per lane (SAS 4.0) and is backward compatible with 12 Gbps and 6 Gbps SAS generations. Ideal for connecting Supermicro motherboards, HBAs, backplanes, and NVMe/SAS SSDs/HDDs.

Advantages

This cable ensures maximum signal integrity and low latency for demanding storage applications. Its robust construction with copper conductors and PVC jacket provides durability and long service life. The straight connector orientation simplifies routing in tight server chassis.

Suitable for

• Internal server and storage connectivity
• Supermicro motherboards, HBAs, and backplanes
• NVMe and SAS SSDs/HDDs
• High-speed data transfer up to 24 Gbps per lane

Key specifications

• Cable Type: Slimline SAS
• Connector 1: Slimline SAS x8 (SFF-8654) Straight
• Connector 2: Slimline SAS x8 (SFF-8654) Straight
• Length: 70 cm (0.7 m)
• Data Transfer Rate: Up to 24 Gbps per lane (SAS 4.0)
• Number of Lanes: 8
• Colour: Black
• RoHS Compliant

Recommendations

For optimal performance, use with Supermicro SAS 4.0 compatible components. Ensure proper cable management to avoid signal interference.
