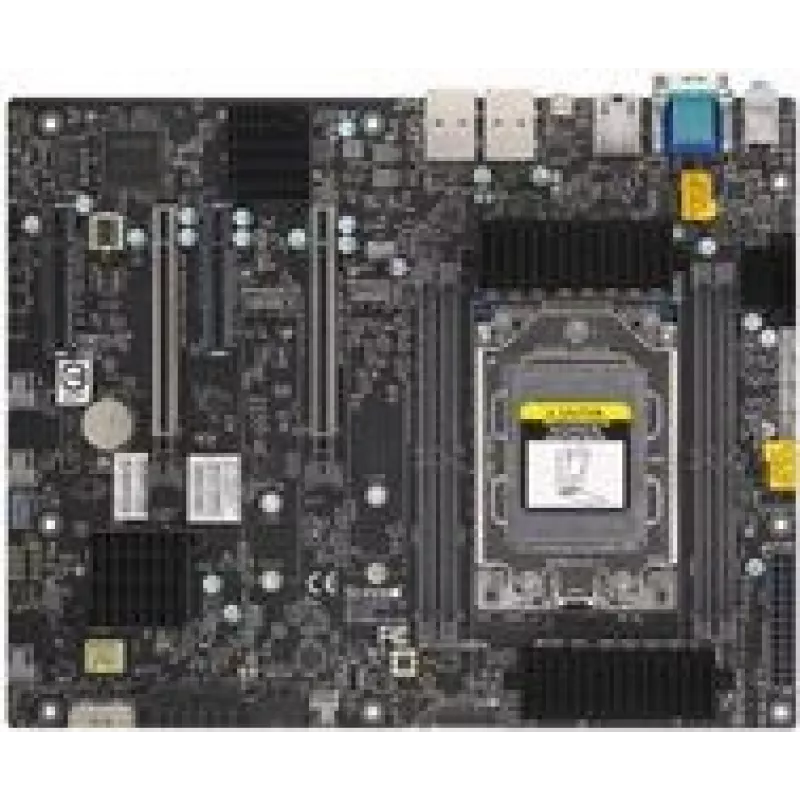

Supermicro H13SRA-TF-B placa base - AMD Socket sTR5, DDR5, ATX, 10GbE

The Supermicro H13SRA-TF-B is a high-performance ATX motherboard designed for AMD Ryzen Threadripper 7000 series processors. Featuring the AMD WRX90 chipset, it supports up to 2TB of DDR5 ECC RDIMM memory across 8 DIMM slots, providing exceptional bandwidth for demanding workloads. With seven PCIe 5.0 x16 slots, three M.2 NVMe slots, and dual 10GbE LAN, this motherboard is ideal for workstations, content creation, and enterprise applications.

Advantages

Unlock the full potential of AMD Ryzen Threadripper processors with robust power delivery and extensive connectivity. The H13SRA-TF-B offers unparalleled expansion capabilities, including PCIe 5.0 support for next-gen GPUs and storage, plus dual 10GbE networking for high-speed data transfer. Its IPMI management port enables remote server monitoring and control.

Suitable for

• High-end workstations for 3D rendering, video editing, and scientific computing
• Enterprise servers requiring reliable ECC memory support
• Gaming and content creation rigs needing multiple GPUs

Key specifications

• CPU Socket: AMD Socket sTR5
• Chipset: AMD WRX90
• Memory: 8x DIMM, DDR5, up to 2TB ECC RDIMM, 8-channel
• Form Factor: ATX
• PCIe Slots: 7x PCIe 5.0 x16
• Storage: 4x SATA3 (6Gbps), 3x M.2 NVMe (PCIe 5.0 x4), 2x SlimSAS (PCIe 5.0 x4 or 4x SATA)
• LAN: 2x 10GbE (Intel X710-AT2), 1x Dedicated IPMI LAN
• USB Rear: 2x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 Type-A
• Audio: Realtek ALC888S HD Audio
• Power: 1x 24-pin ATX, 2x 8-pin EPS 12V
• RAID: RAID 0/1/5/10 (SATA), RAID 0/1 (M.2)

Recommendations

For optimal performance, pair this motherboard with AMD Ryzen Threadripper 7000 series processors and DDR5 ECC memory. Ensure your power supply supports dual 8-pin EPS connectors. Ideal for professionals seeking a stable, high-throughput platform.
