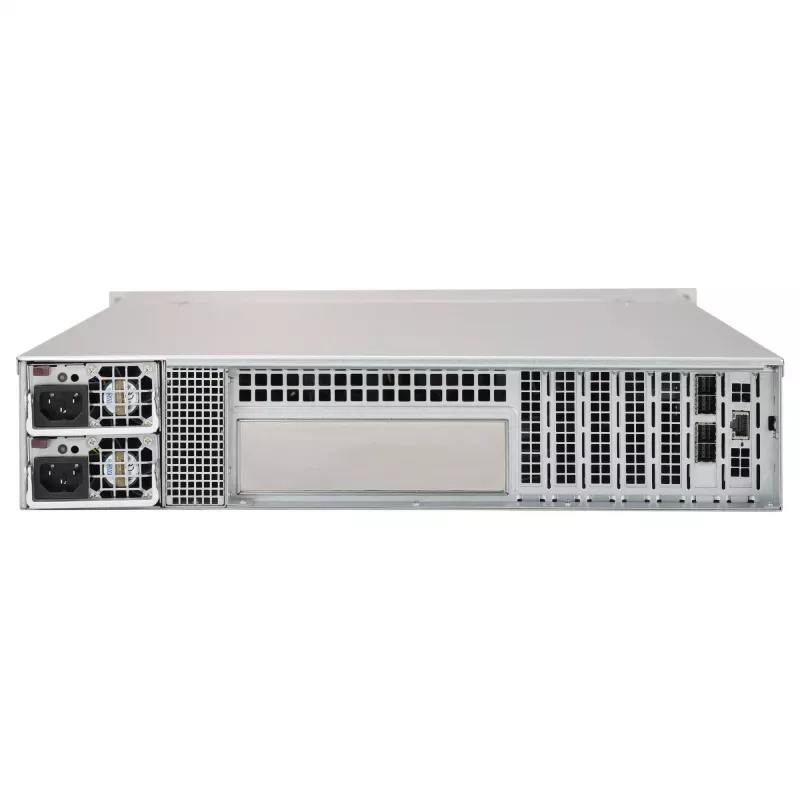

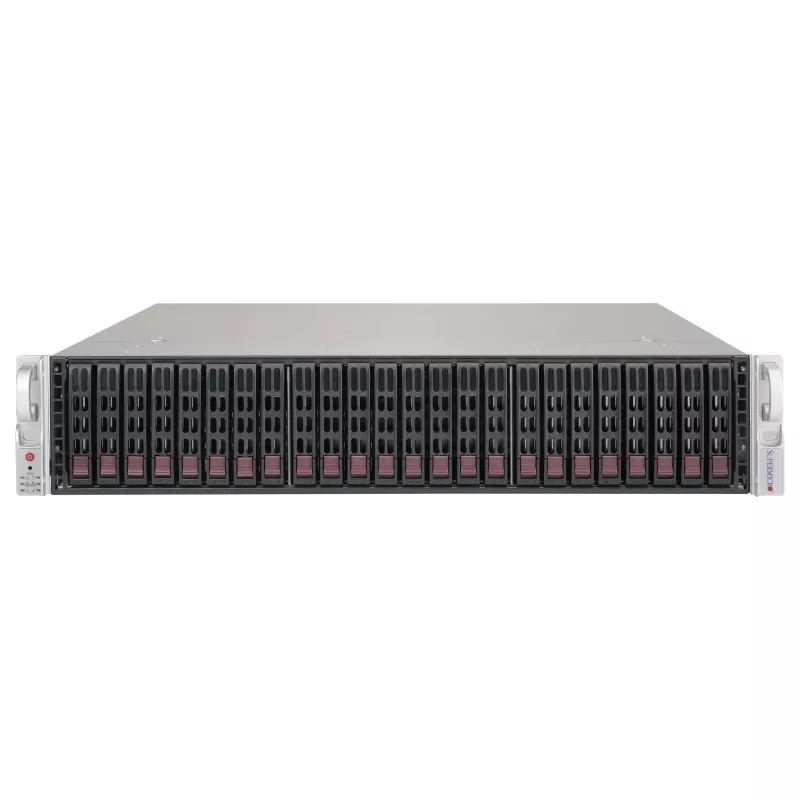

Supermicro SC216 BE1C-R609JBOD Carcasa JBOD 2U 24x2,5 pulgadas Hot-Swap SAS3 con 2 fuentes de alimentación redundantes de 600W

The Supermicro SC216 BE1C-R609JBOD is a high-performance 2U rackmount JBOD (Just a Bunch Of Disks) enclosure designed for enterprise storage environments. It provides 24 hot-swap drive bays for 2.5-inch SAS3 or SATA3 drives, offering exceptional storage density and scalability. With dual 600W redundant power supplies and an efficient cooling system, this enclosure ensures reliable operation and data integrity.

Advantages

Maximize storage capacity with 24 hot-swap drive bays in a compact 2U form factor. The integrated SAS3 expander simplifies cabling and supports high-speed data transfers up to 12Gb/s. Redundant power supplies and hot-swap fans guarantee maximum uptime. Energy-efficient 80 PLUS Platinum power supplies reduce operational costs.

Suitable for

• Data centers requiring high-density storage
• Video surveillance and media storage
• Backup and archival systems
• Virtualization and cloud storage

Key specifications

• Chassis Type: 2U Rackmount JBOD Enclosure
• Drive Bays: 24 x 2.5" Hot-swap
• Supported Drives: SAS3 (12Gb/s) / SATA3 (6Gb/s)
• Backplane: SAS3 (12Gb/s) with LSI SAS3 Expander
• External SAS Ports: 2 x Mini-SAS HD (SFF-8644) Input, 1 x Mini-SAS HD (SFF-8644) Output
• Power Supplies: 2 x 600W Redundant (1+1) Hot-swap
• Power Efficiency: 80 PLUS Platinum Certified
• Cooling System: 3 x 80mm Hot-swap Redundant Cooling Fans
• System Management: SES2 Support, LED Indicators (Power, Fan Failure, Drive Activity, Drive Failure)
• Form Factor: 2U Rackmount
• Material: Heavy-duty steel
• Color: Black
• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Operating Humidity: 8% to 90% (non-condensing)
• Compatibility: Compatible with various host HBAs supporting SAS3 expanders

Recommendations

For optimal performance, pair this JBOD enclosure with a compatible SAS3 HBA and use enterprise-grade SAS3 or SATA3 SSDs/HDDs. Ensure proper ventilation in the rack to maintain operating temperature.
