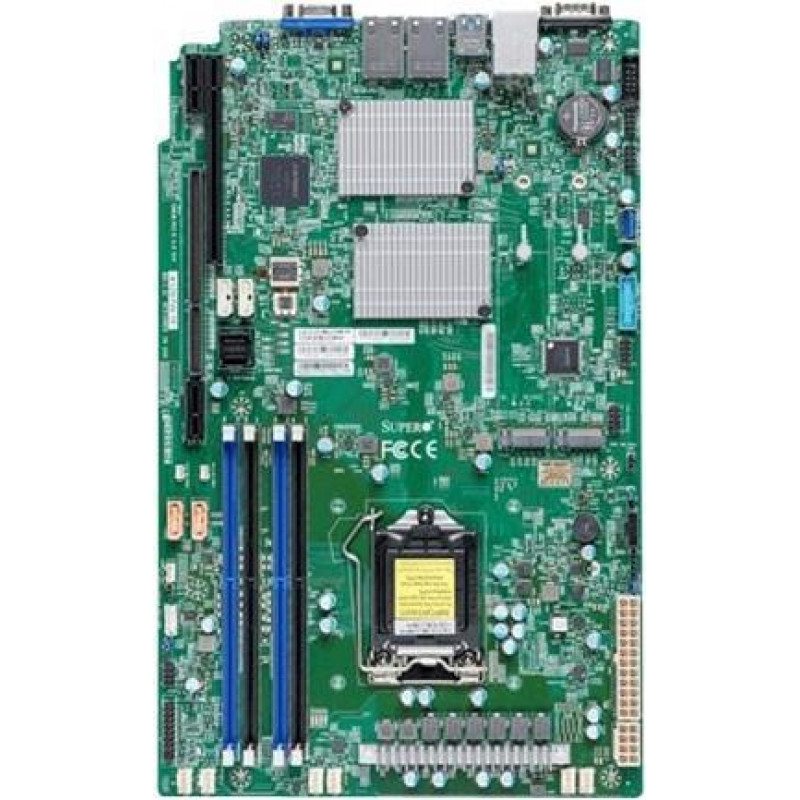

Supermicro - X12STW-TF - placa base - zócalo LGA1200 - chipset C256 USB 3.2 Gen 1 USB 3.2 Gen 2 2 x 10 Gigabit LAN gráficos integrados

For system integrators and IT administrators building compact yet powerful servers for small business or edge deployments, the Supermicro X12STW-TF delivers enterprise-grade reliability in a micro-ATX footprint. Built around the Intel C256 chipset and LGA1200 socket, it supports Intel Xeon E-2300 series processors with ECC memory for data integrity, while dual 10GbE ports ensure high-speed networking for virtualization, NAS, or security appliances.

Key specifications

• Socket: LGA1200 for Intel Xeon E-2300, Pentium, and Celeron processors
• Chipset: Intel C256
• Memory: 4x DDR4 ECC UDIMM slots, up to 128GB, speeds up to 3200MHz
• Networking: Dual 10 Gigabit Ethernet via Intel X710-AT2
• Storage: 8x SATA3 (6Gbps), 1x M.2 PCIe 4.0 x4 (2280/22110)
• Expansion: 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1
• Management: Dedicated IPMI LAN port with Aspeed AST2600 BMC
• Rear I/O: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 1x VGA

Why choose it

The X12STW-TF combines server-grade features with a space-saving micro-ATX design, making it ideal for compact server chassis. ECC memory support ensures data integrity, and dual 10GbE provides ample bandwidth for demanding applications. Remote management via IPMI simplifies administration, reducing downtime and on-site visits.

Ideal use cases

• Small to medium business servers for file sharing, email, or ERP
• Edge computing nodes requiring high-speed networking
• Network-attached storage (NAS) with large SATA drive arrays
• Virtualization hosts for lightweight workloads
• Security appliances such as firewalls or VPN concentrators

Good to know

This board requires a compatible LGA1200 CPU and DDR4 ECC UDIMMs (not RDIMMs). The M.2 slot supports PCIe 4.0 x4 NVMe SSDs for fast boot or caching. The onboard VGA is provided by the BMC, suitable for console access. Ensure your chassis supports micro-ATX form factor and adequate cooling for 10GbE components.
