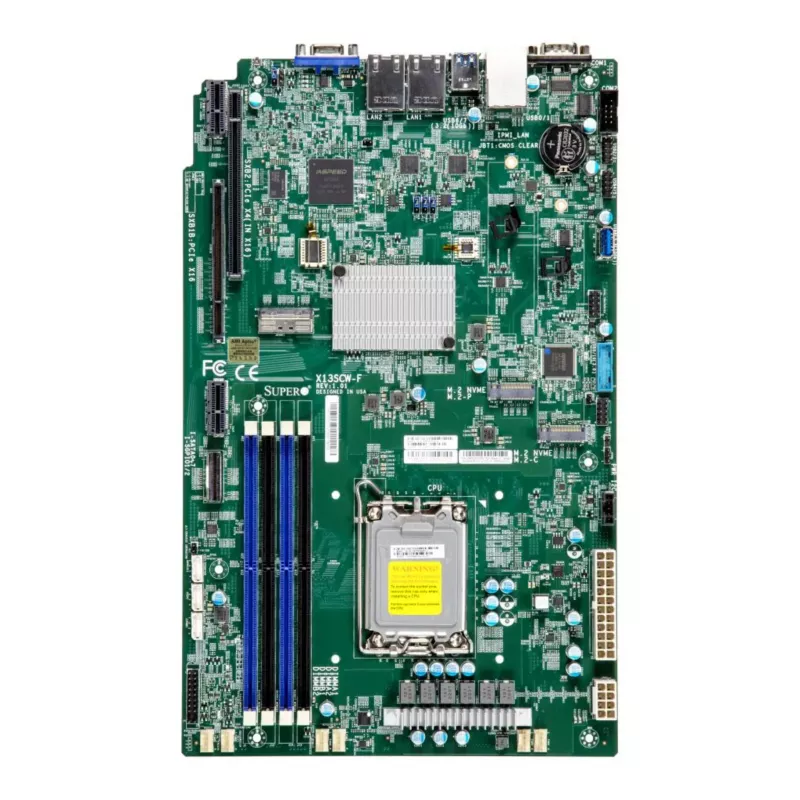

Supermicro X13SCW-F Placa base, Intel LGA 1700, chipset W680, DDR5, formato WIO

The Supermicro X13SCW-F is a high-performance workstation motherboard designed for Intel 12th/13th/14th Gen Core processors and Intel Xeon E-2400 series. Featuring the Intel W680 chipset and DDR5 memory support, it delivers exceptional computing power for demanding applications. The proprietary WIO form factor offers a unique I/O layout optimized for space-constrained environments.

Advantages

Supports up to 128GB DDR5 memory with speeds up to 4800MHz, providing fast data access and multitasking capabilities. With three M.2 NVMe slots and eight SATA 6Gb/s ports, it offers extensive storage options. Dual 1GbE LAN ports and a dedicated IPMI 2.0 port ensure reliable network connectivity and remote management.

Suitable for

• Workstations for content creation, engineering, and scientific computing
• Small to medium business servers requiring robust performance
• Embedded systems needing a compact yet powerful motherboard

Key specifications

• CPU Socket: Intel LGA 1700
• Chipset: Intel W680
• Memory: 4x DDR5 DIMM slots, up to 128GB, up to 4800MHz
• Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x4 (in x8 slot), 1x PCIe 4.0 x4
• Storage: 3x M.2 NVMe (PCIe 4.0 x4), 8x SATA 6Gb/s
• LAN: 2x 1GbE (Intel I210-AT), 1x Dedicated IPMI 2.0
• USB: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0 (rear)
• Video: 1x VGA (ASPEED AST2600 BMC)
• Form Factor: WIO (Workstation I/O)
• RAID: Intel RSTe (Software RAID 0, 1, 5, 10)

Recommendations

Ideal for users seeking a reliable, high-performance motherboard with advanced management features. The WIO form factor ensures compatibility with Supermicro's proprietary chassis for optimized airflow and cable management.
